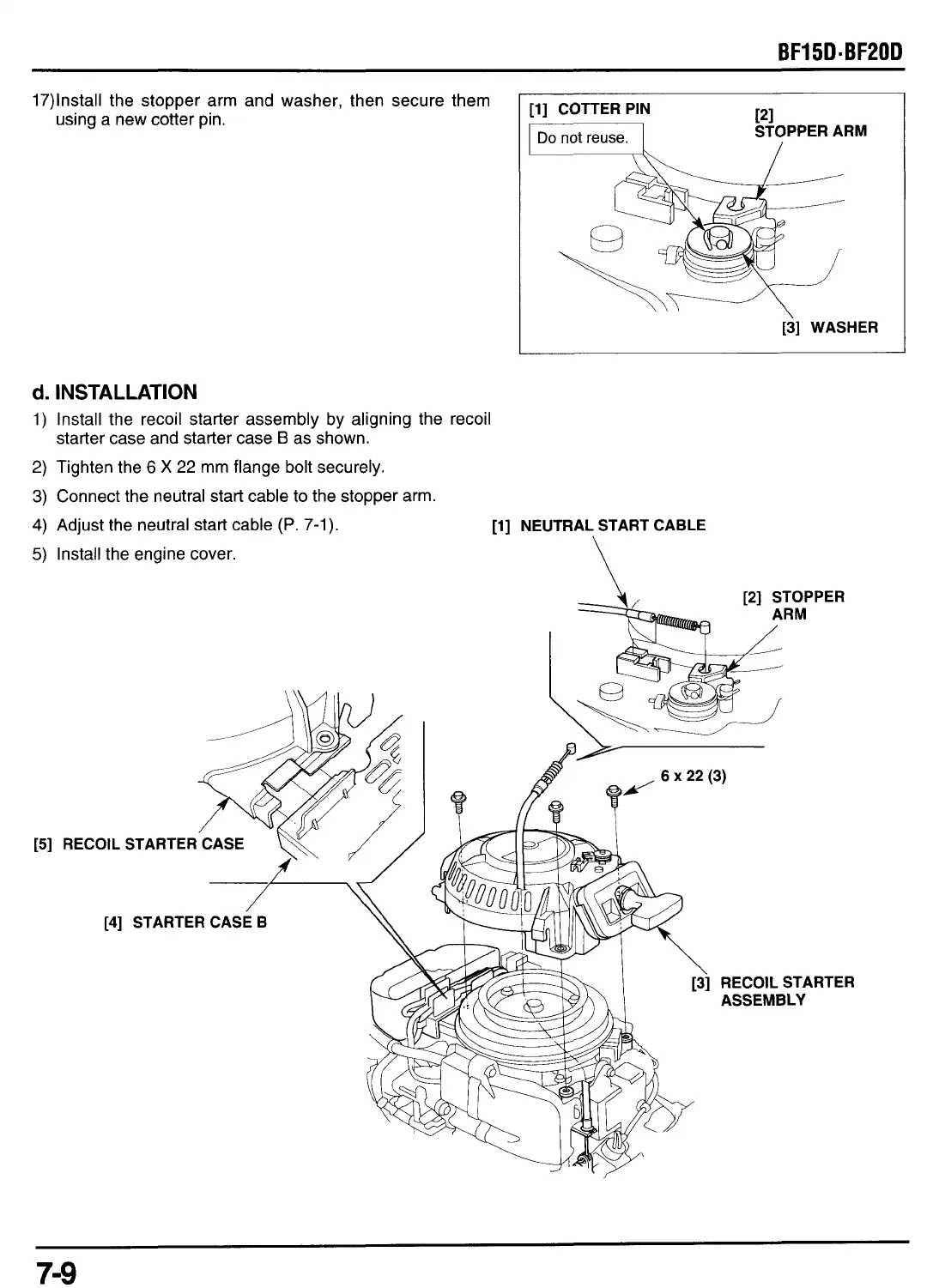

17)lnstall the stopper arm and washer, then secure them
using a new cotter pin.
121
[l] COTTER PIN
STOPPER ARM
I ~onot reuse. 1
I
[3] WASHER
d. INSTALLATION
1) Install the recoil starter assembly by aligning the recoil
starter case and starter case
B as shown.
2) Tighten the 6 X 22 mm flange bolt securely.
3) Connect the neutral start cable to the stopper arm.
4) Adjust the neutral start cable (P. 7-1).
5) Install the engine cover.
[l] NEUTRAL START CABLE
\
[5] RECOIL
141
7-9

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
