Honda BF15D User Manual

BF15DmBF20D

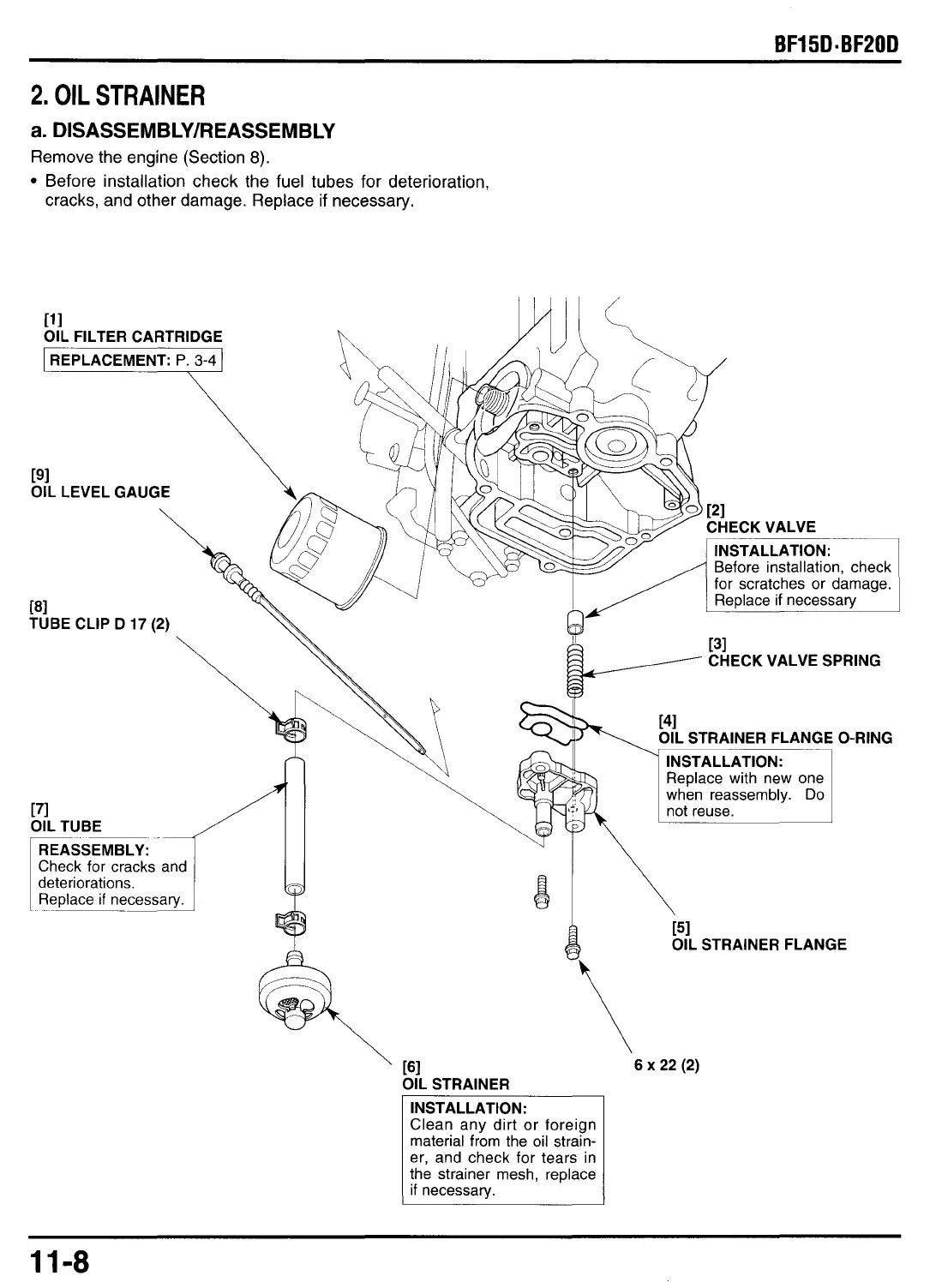

2. OIL STRAINER
a. DISASSEMBLY/REASSEMBLY
Remove the engine (Section 8).
Before installation check the fuel tubes for deterioration,
cracks, and other damage. Replace if necessary.
' 161
OIL STRAINER
\
6 x 22 (2)
~~
INSTALLATION:
Clean any dirt or foreign
material from the oil strain-
er, and check for tears in
the strainer mesh, replace
if necessary.
11-8

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
