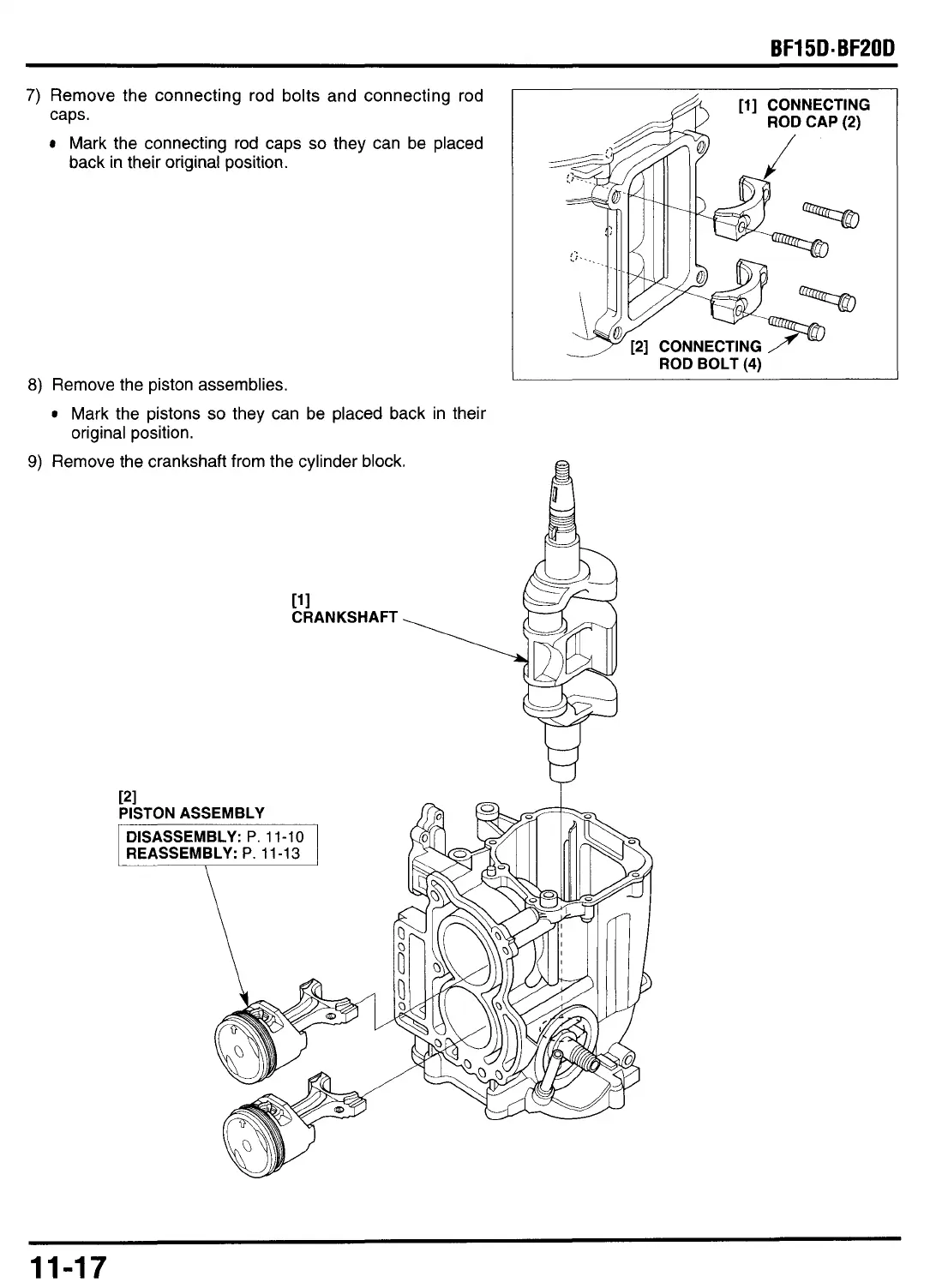

7) Remove the connecting rod bolts and connecting rod
caps.
Mark the connecting rod caps
so
they can be placed
back in their original position.
]
CONNECTING
ROD BOLT
(4)
I
..
Remove the piston assemblies.
Mark the pistons so they can be placed back in their
original position.
Remove the crankshaft from the cylinder block.
PI
CRANKSHAFT
11-17
