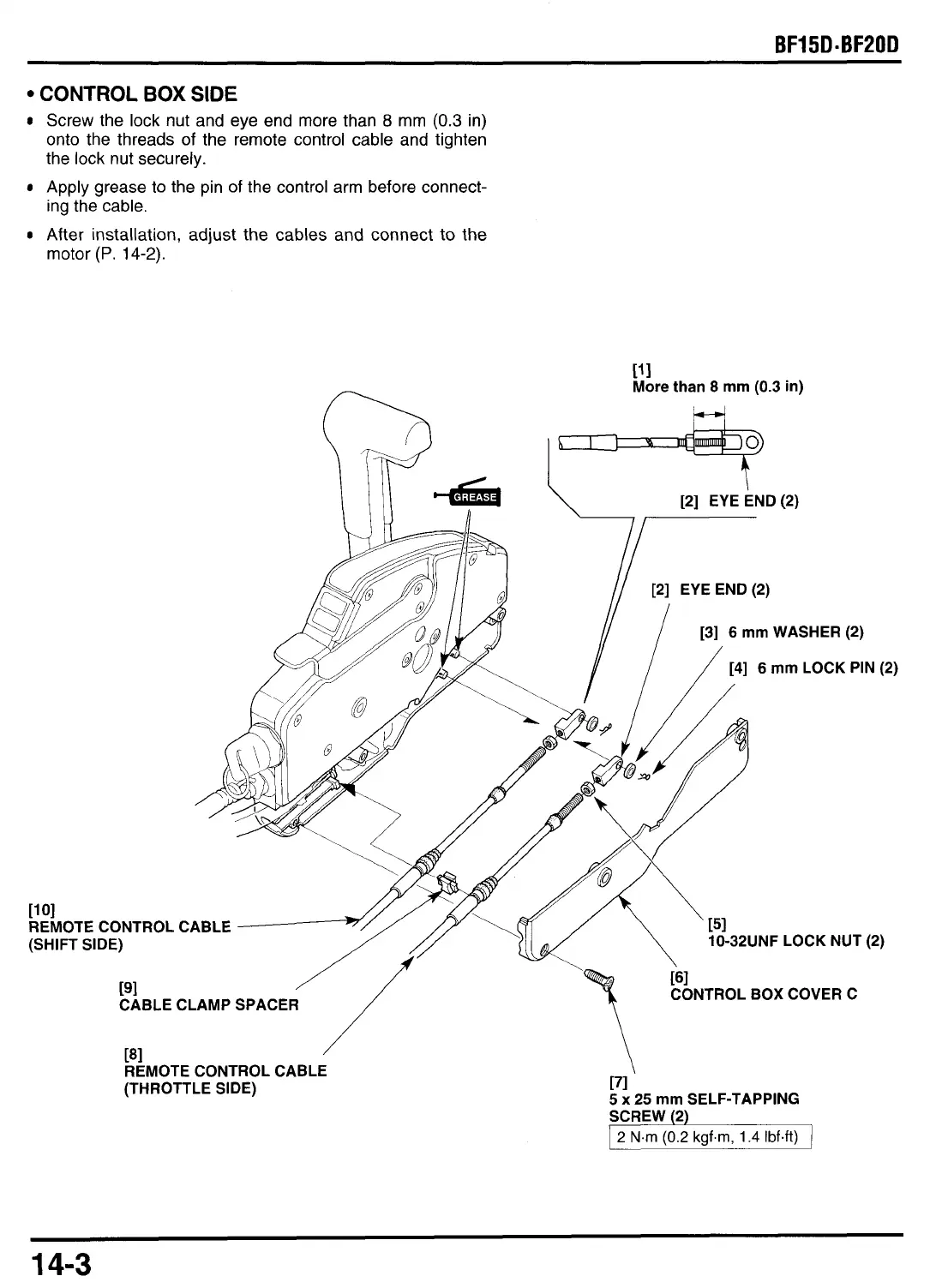

CONTROL BOX SIDE
Screw the lock nut and eye end more than 8 mm (0.3 in)
onto the threads
of the remote control cable and tighten
the lock nut securely.
Apply grease to the pin of the control arm before connect-
ing the cable.
After installation, adjust the cables and connect to the
motor
(P. 14-2).
11 1
More than 8 mm (0.3 in)
[2] EYE END (2)
7r [2] EYE END(2)
i/ / [3] 6mmWASHER(2)
/
[81
REMOTE CONTROL CABLE
(THROTTLE SIDE)
\
r71
5 x 25 mm SELF-TAPPING
SCREW(2)
2 N.m (0.2 kgf.m, 1.4 Ibf.ft) 1
14-3

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
