BF15D-BF20D

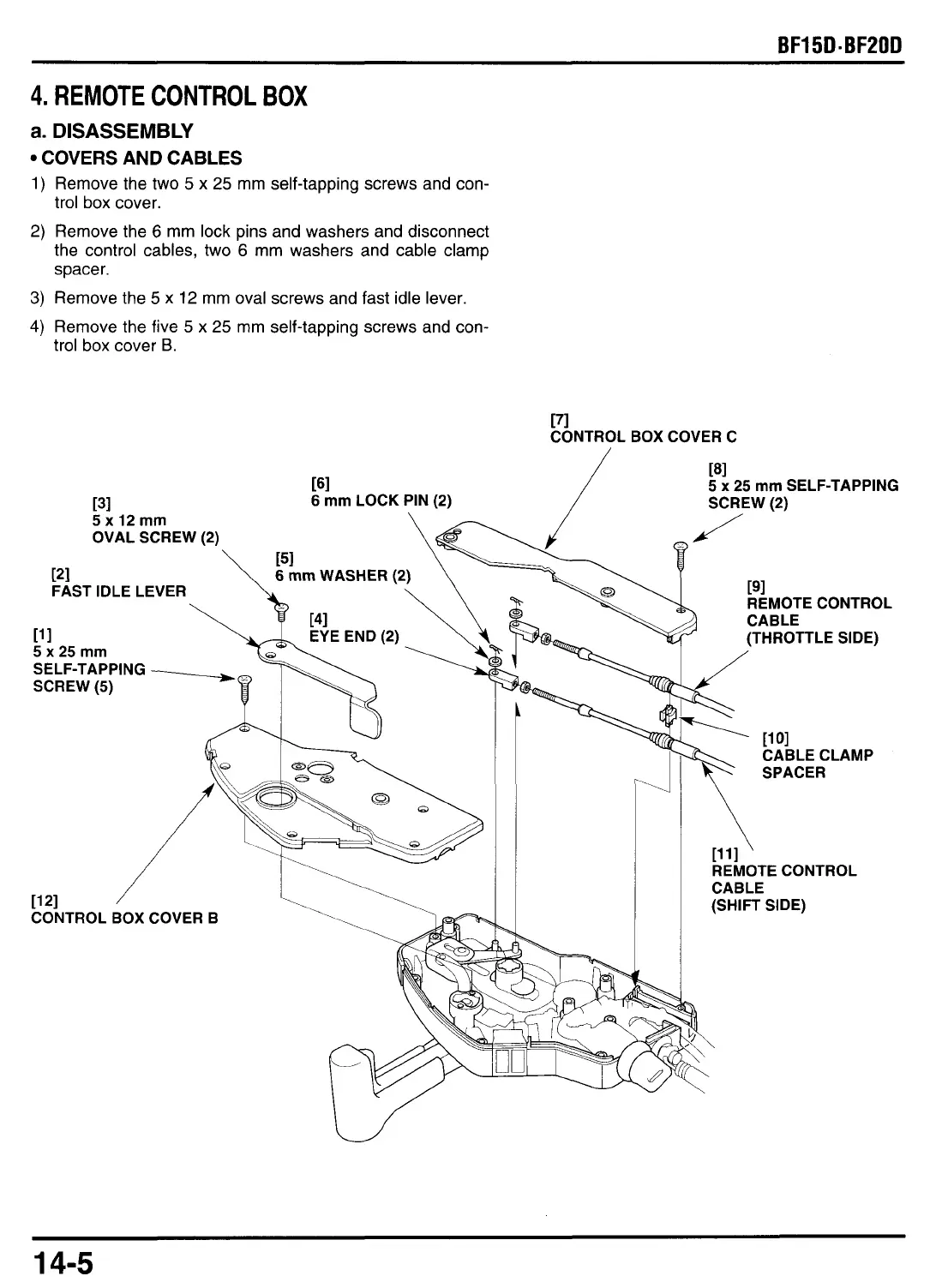

4. REMOTE CONTROL BOX
a. DISASSEMBLY
COVERS AND CABLES
1) Remove the two 5 x 25 mm self-tapping screws and con-
trol box cover.
2) Remove the 6 mm lock pins and washers and disconnect
the control cables, two
6 mm washers and cable clamp
spacer.
3) Remove the 5 x 12 mm oval screws and fast idle lever.
4) Remove the five 5 x 25 mm self-tapping screws and con-
trol box cover
B.
[71
CONTROL BOX COVER C
181
5 x 25 mm SELF-TAPPING
SCREW(2)
[61
6 mm LOCK PIN (2)
[31
5xl2mm
/
OVAL SCREW 12)
121
FAST IDLE LEVER
\
\ b TAl
5x25mm 11 1 +ND 12)
SELF-TAPPING
---
SCREW(5)
/
REMOTE CONTROL
CABLE CLAMP
[121
\
CONTROL BOX COVER B
/ [111
REMOTE CONTROL
CABLE
(SHIFT SIDE)
14-5
