Honda BF15D User Manual

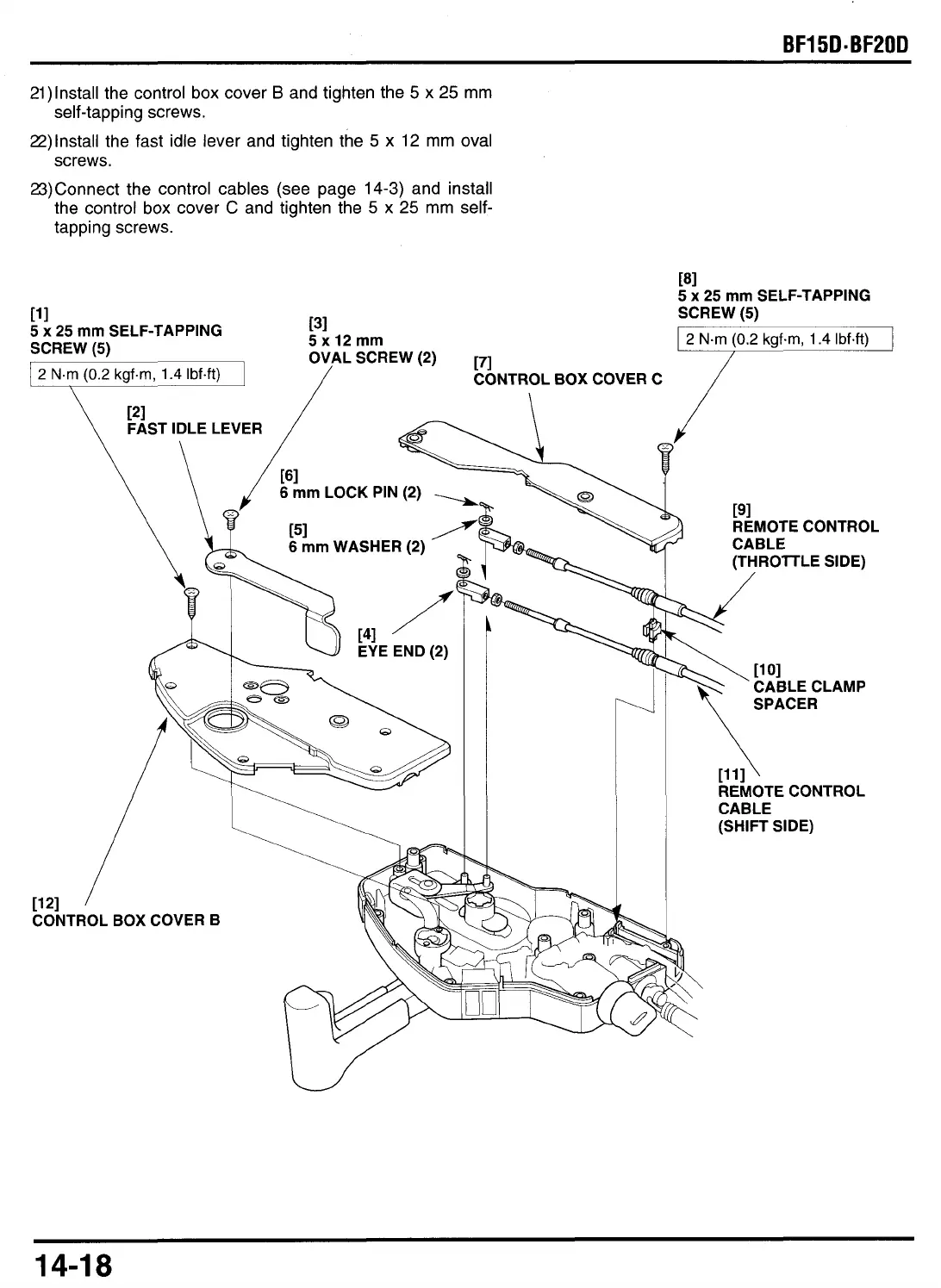

2l)lnstall the control box cover B and tighten the 5 x 25 mm
self-tapping screws.
22)lnstall the fast idle lever and tighten the 5 x 12
mm oval
screws.
23)Connect the control cables (see page
14-3) and install
the control box cover C and tighten the 5 x 25
mm self-
tapping screws.
181
5 x 25 mm SELF-TAPPING
SCREW(5)
[31
[I1
5 x 25 mm SELF-TAPPING
SCREW(5)
2 N.m (0.2 kgf.m, 1.4 Ibf.ft)
5xl2mm
OVAL SCREW(2) 171
/
CONTROL BOX COVER C
11 21
CONTROL BOX COVER B
REMOTE CONTROL
CABLE
(SHIFT SIDE)
14-1 8

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
