Honda BF15D User Manual

BF15D-BF20D
‘lip engaged and
button pushed.

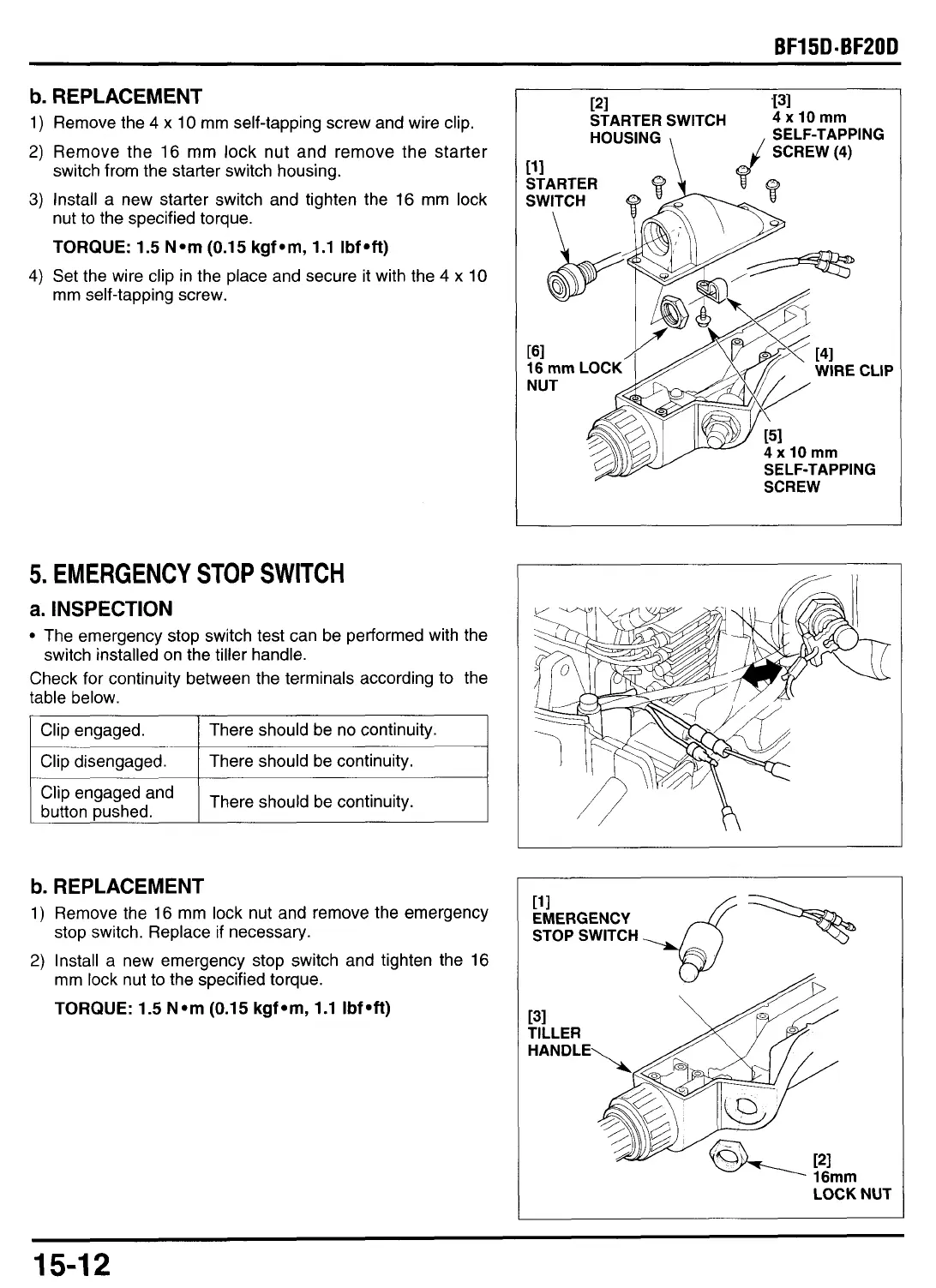

b. REPLACEMENT
1) Remove the 4 x 10 mrn self-tapping screw and wire clip.
2) Remove the 16 mrn lock nut and remove the starter
3) Install a new starter switch and tighten the 16 rnrn lock
switch from the starter switch housing.
nut
to the specified torque.
TORQUE: 1.5 Narn (0.1 5 kgfam, 1.1 Ibf aft)
mm self-tapping screw.
4) Set the wire clip in the place and secure it with the 4 x 10
There should be continuity.
5. EMERGENCY STOP SWITCH
a. INSPECTION
The emergency stop switch test can be performed with the
Check for continuity between the terminals according
to the
table below.
switch installed on the tiller handle.
I Clip engaged. I There should be no continuity. I
~ ~~
I Clip disengaged. I There should be continuity. I
c-- I
b. REPLACEMENT
1) Remove the 16 mm lock nut and remove the emergency
2) Install a new emergency stop switch and tighten the 16
stop switch. Replace if necessary.
mm lock nut
to the specified torque.
TORQUE: 1.5 Narn (0.1 5 kgf am, 1.1 Ibf eft)
I31
4xlOmm
121
STARTER SWITCH
SELF-TAPPING
A
11 1
EMERGENCY
STOP SWITCH
[31
TILLER
HANDLE
LOCK
NUT
I
15-1 2

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
