Honda BF15D User Manual

BF15DSBF20D

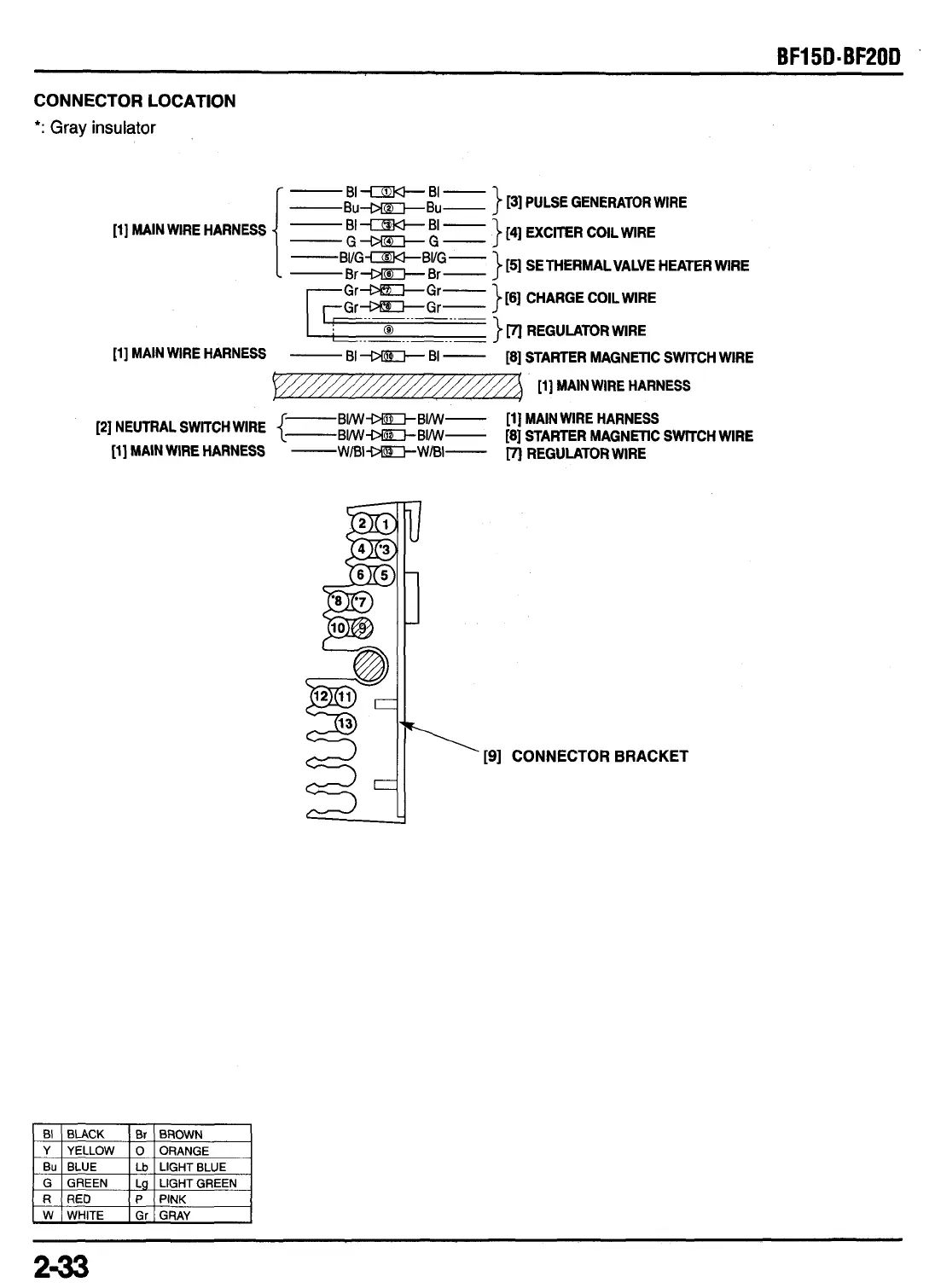

CONNECTOR LOCATION
*: Gray insulator
B'- } 131 PULSE GENERATOR WIRE
--I-
Bu-Bu-
[l] MAIN WIRE HARNESS BI BI -
G-G-
BVG -CZ%l- BVG -
Br-MD-Br-
Gr-Gr- [S] CHARGE COIL WIRE
} [4] EXCITER COIL WIRE
} [5] SE THERMAL VALVE HEATER WIRE
m REGULATOR WIRE
[8] STARTER MAGNETIC SWITCH WIRE
--__
[l] MAIN WIRE HARNESS
- BI +lE+ BI -
v-4 [l] MAIN WIRE HARNESS
BIMI-DI!E-BI/W- [l] MAIN WIRE HARNESS
[8] STARTER MAGN€llC SWITCH WIRE
m REGULATOR WIRE
[2] NEUTRAL SWITCH WIRE
{-B,,,,,,~BIMI
[l] MAIN WIRE HARNESS
- W/BI +El- WlBl -
\ [9] CONNECTOR BRACKET
2-33

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
