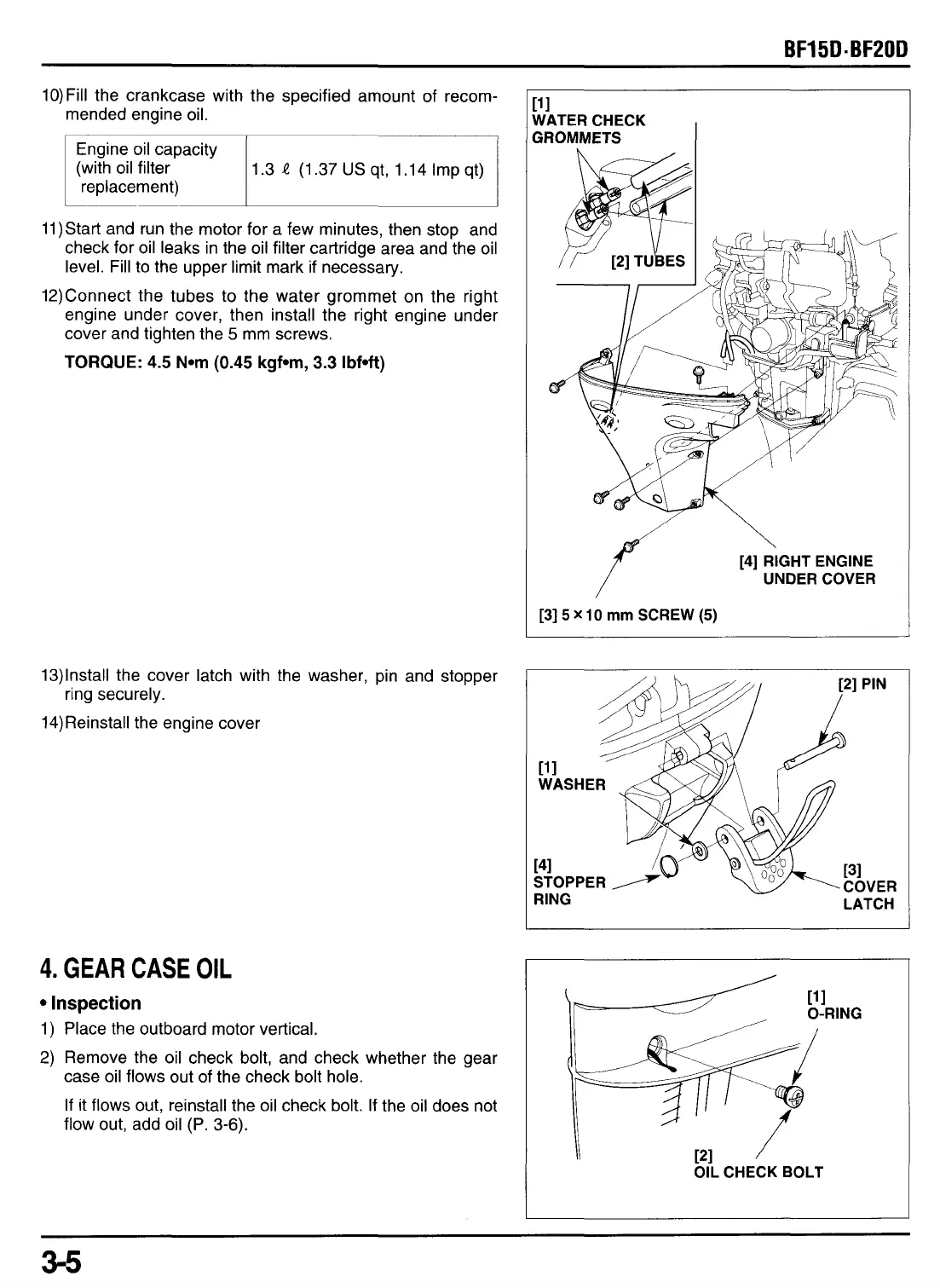

BF15DmBF20D
10) Fill the crankcase with the specified amount of recom-
mended engine oil.
Engine oil capacity
(with oil filter
replacement)
1.3
l
(1.37USqt, 1.14Impqt)
11)Start and run the motor for a few minutes, then stop and
check for oil leaks in the oil filter cartridge area and the oil
level. Fill
to
the upper limit mark
if
necessary.
12)Connect the tubes
to
the water grommet on the right
engine under cover, then install the right engine under
cover and tighten the
5
mm screws.
TORQUE:
4.5 N*m (0.45 kgf*m,
3.3
Ibf*ft)
13)lnstall the cover latch with the washer, pin and stopper
14)Reinstall the engine cover
ring securely.
4.
GEAR CASE
OIL
Inspection
1) Place the outboard motor vertical.
2)
Remove the oil check bolt, and check whether the gear
case oil flows out of the check bolt hole.
If it flows out, reinstall the oil check bolt. If the oil does not
flow out, add oil
(P.
3-6).
11
1
WATER CHECK
GROMMETS
I
\
[4]
RIGHT ENGINE
~~
UNDER COVER
/
I
[3]
5
X
10
mm
SCREW (5)
3-5
