BF15DmBF20D

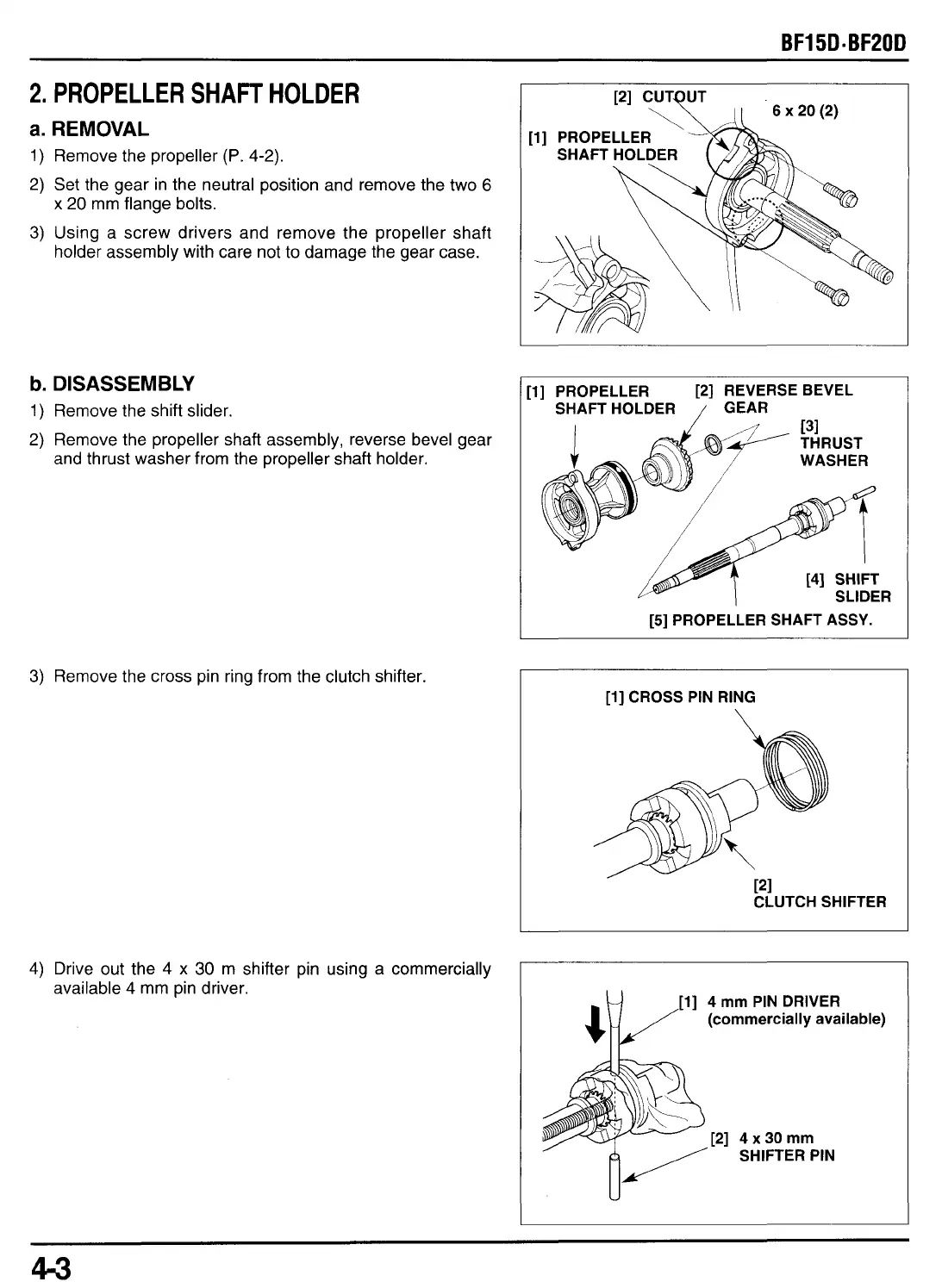

2. PROPELLER SHAFT HOLDER
a. REMOVAL
1) Remove the propeller (P. 4-2).
2) Set the gear in the neutral position and remove the two 6
x 20 mm flange bolts.
3) Using a screw drivers and remove the propeller shaft
holder assembly with care not to damage the gear case.
b. DISASSEMBLY
1) Remove the shift slider.
2) Remove the propeller shaft assembly, reverse bevel gear
and thrust washer from the propeller shaft holder.
3) Remove the cross pin ring from the clutch shifter.
4) Drive out the 4 x 30 m shifter pin using a commercially
available
4 mm pin driver.
12] CUTyT \ 1 I . 6x20 (2)
[l] PROPELLER [2] REVERSE BEVEL
SHAFT HOLDER GEAR
I
I
[5] PROPELLER SHAFT ASSY.
[l] CROSS PIN RING
\
PI
CLUTCH SHIFTER
[l] 4 mm PIN DRIVER
(commercially available)
[2] 4x30mm
SHIFTER PIN

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
