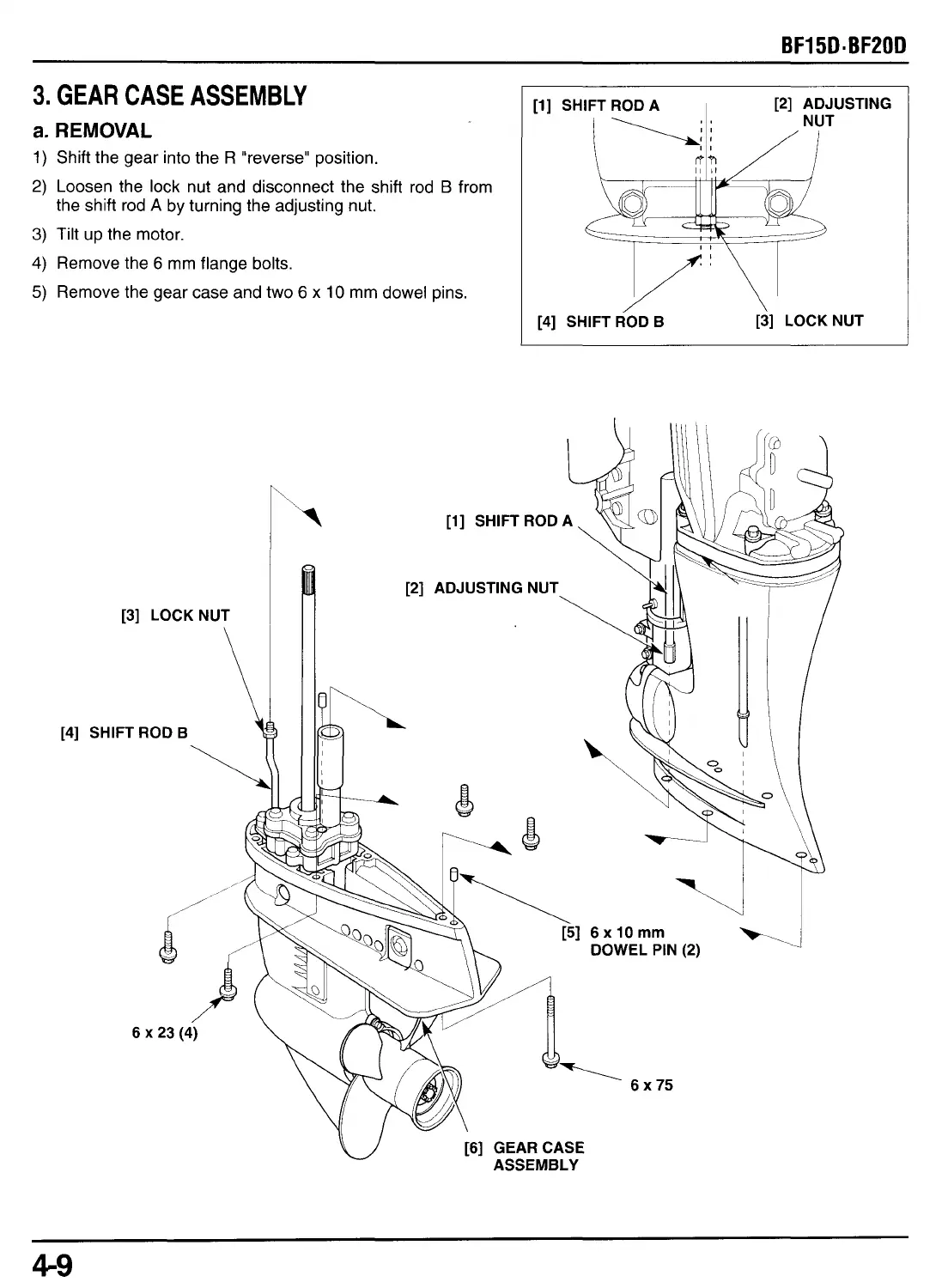

3. GEAR CASE ASSEMBLY
a. REMOVAL
1) Shift the gear into the R "reverse" position.
2) Loosen the lock nut and disconnect the shift rod B from
3) Tilt up the motor.
4) Remove the 6 mm flange bolts.
5) Remove the gear case and two 6 x 10 mm dowel pins.
the shift rod
A by turning the adjusting nut.
[l] SHIFT ROD A
[2] ADJUSTING
I, 1,
I [4] SHIFT ROD B
[3] LOCKNUT
[6] GEARCASE
ASSEMBLY
W

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
