Unpacking
1. Remove the generator and loose parts box from the carton.
2. Compare the loose parts with the inventory list below.
Tools Required: 12 mm wrench (2), pliers

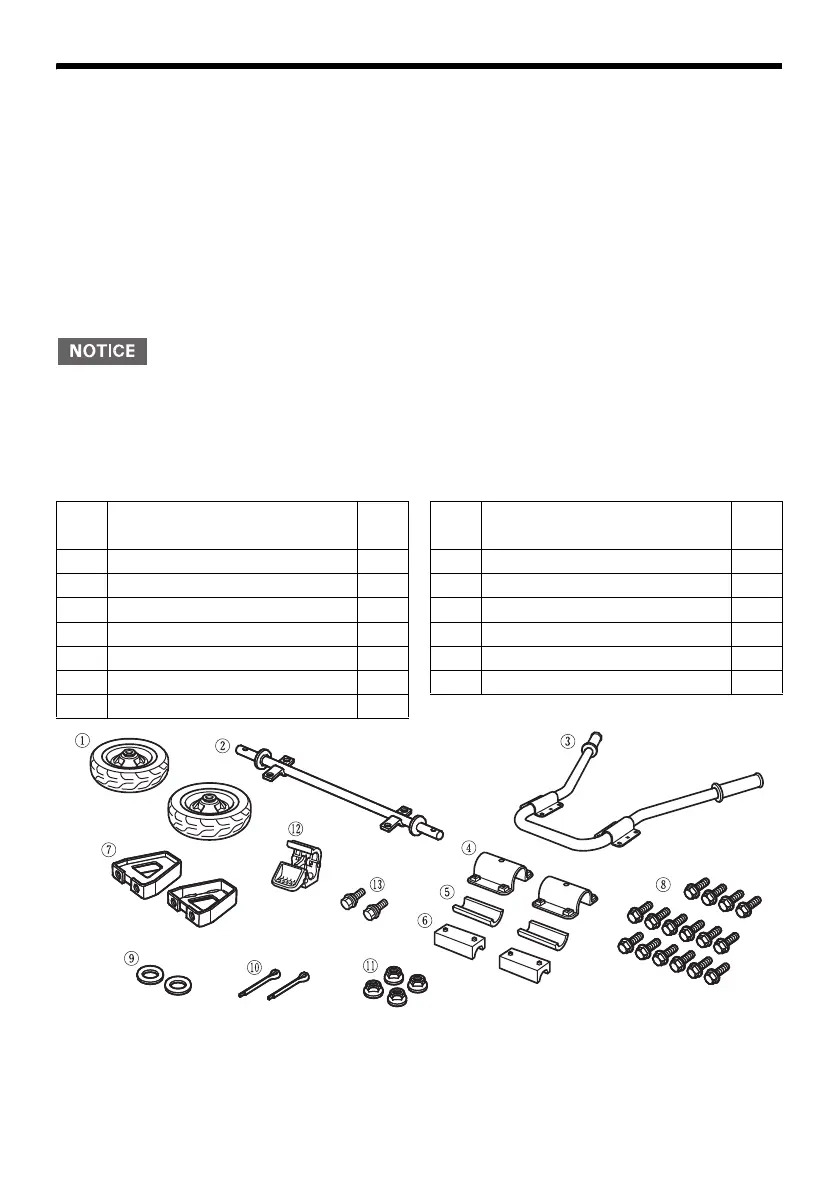

Loose Parts (Wheel kit and handle)
Do not add fuel or oil before tipping the generator. Oil or fuel may damage the
engine or your property.
Check all loose parts against the following list. Contact your dealer if any of the
loose parts shown below are not included with your generator.
Ref.
No.
Description Qty. Ref.
No.
Description Qty.
1 Wheel 2 8 8×16 mm Flange bolt 16
2 Axle Shaft 1 9 20 mm Plain Washer 2
3 Handle Assembly 1 10 4.0×28 mm Split pin 2
4 Handle Lower bracket 2 11 8 mm Flange nut 4
5 Handle Bush B 2 12 Handle Holder Assembly 1
6 Handle Bush A 2 13 8×18 mm Flange bolt 2
7Stand 2
