3.8 REMOVAL OF THE STOP FROM THE HOOKING PAWL OF THE GRASS-
CATCHER
For transport purposes, the pawl (1) hooking the
grass-catcher is held onto the rear plate by a stop
(2). This stop must be removed before fitting the
grass-catcher brackets, and is not to be subse-
quently used.

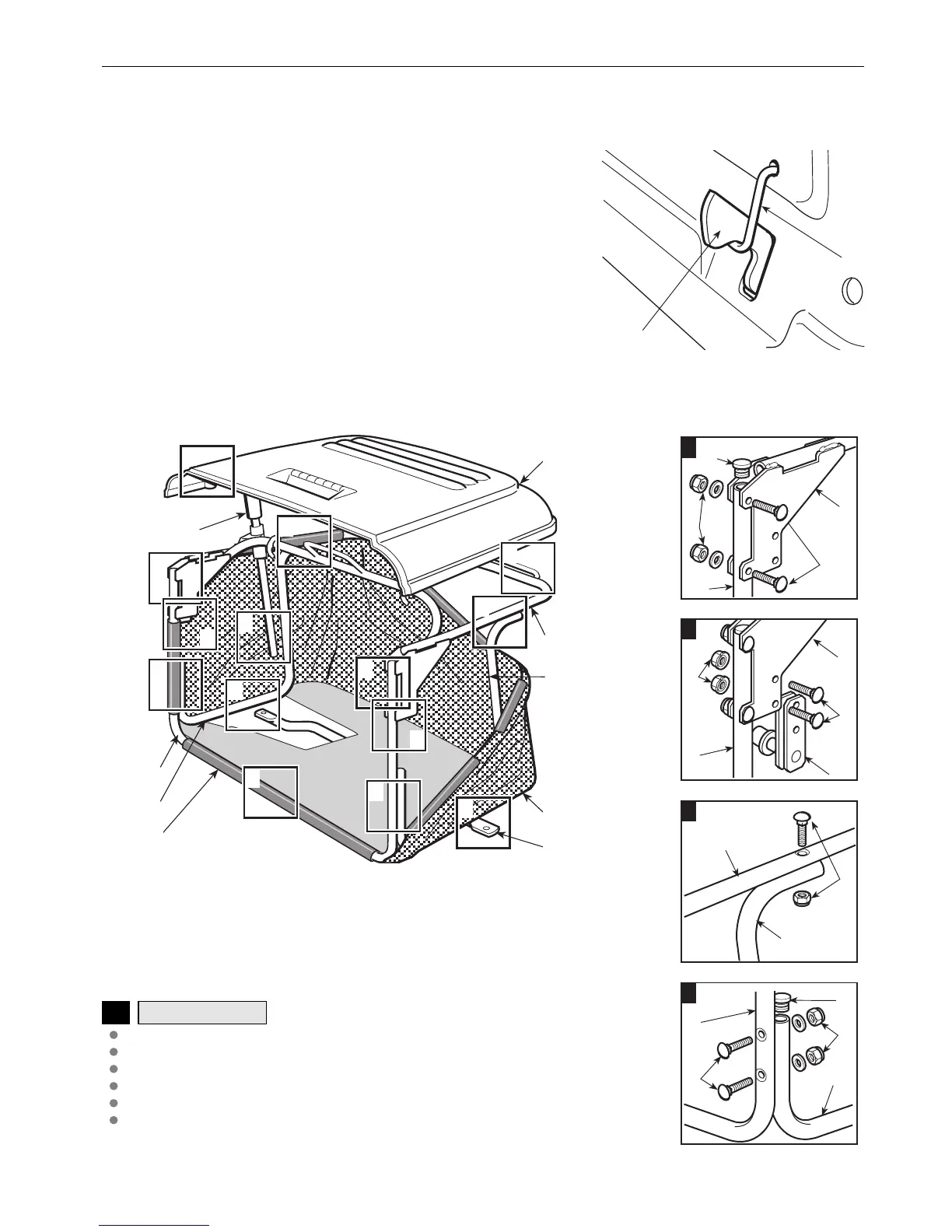

3.9 GRASS-CATCHER ASSEMBLY
A) Join the upper part of the frame (1) to the front compo-
nent (2) using the supplied screws and nuts (3) as shown. Fit
the two rubber caps (4) into the holes in the tube of front
frame (2).
B) Before fully tightening the nuts (3), insert the two sup-
ports (5) between the plates of the upper frame (1) with
the rollers turned inwards. Fasten them with the screws
and nuts (6) and then fully tighten the nuts (3).
C-D) Attach the two side elements (7), using the screws and nuts (8 and 9) as
