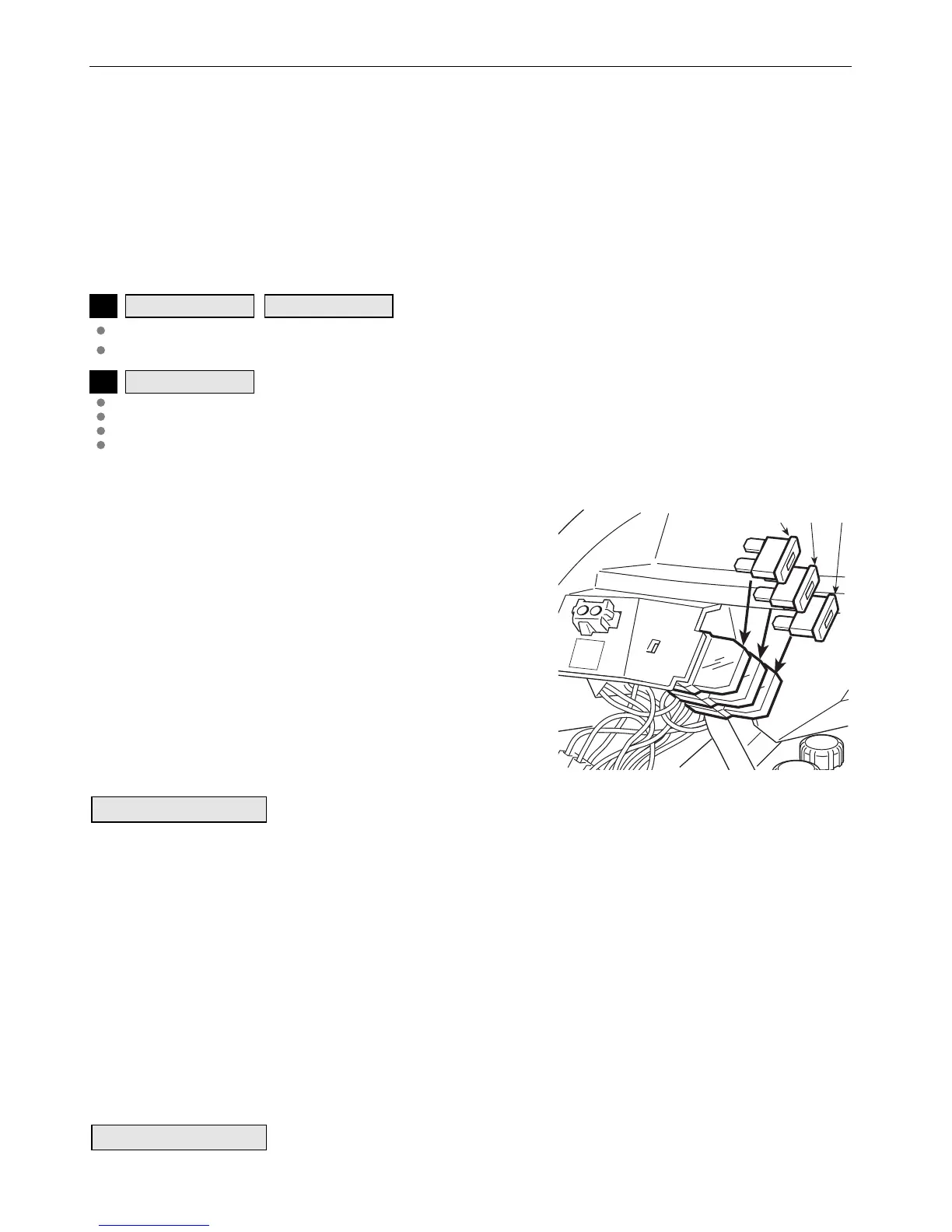

6.4.9 REPLACING A FUSE
A few fuses of various capacities are envisaged on the machine. Their functions
and features are given in the following table:
1 - 10 Amps - (Red) protection of the main circuits and power
circuits of the electronic card;
2 - 15 Amps - (Blue) protection of the recharge circuit;
2 - 25 Amps - (White) protection of the recharge circuit;
3 - 10 Amps - (Red) protection of the grass-catcher tipping con-
trol circuit.
– When the fuse blows (1) the machine stops
and all the lights on the dashboard go out.
– The battery pilot lamp turns on in models pro-
vided with it (☛ 4.10.f) when the fuse (2) trips.
– Tripping of the fuse (3) prevents the control
motor of the grass-catcher’s tipping to operate.
A blown fuse must always be replaced by one of the same
type and rating, and never with one of another rating.
If you cannot find eliminate the causes of the tripping, consult your Dealer.
6.4.10 R
EPLACING BELTS
Replacing belts is quite a complicated process of dismantling and subsequent
adjustment and must only be carried out by your Dealer.
Replace the belts as soon as they show obvious signs of
wear! ALWAYS USE GENUINE REPLACEMENT BELTS!
NOTA
IMPORTANT
HF2620H••
➤
HF24••◊••HF23••◊••
➤
EN 58 MAINTENANCE
