Honeywell 1900GSR-2USB User Manual

12 - 6
Standard Cable Pinouts
RS485 Output

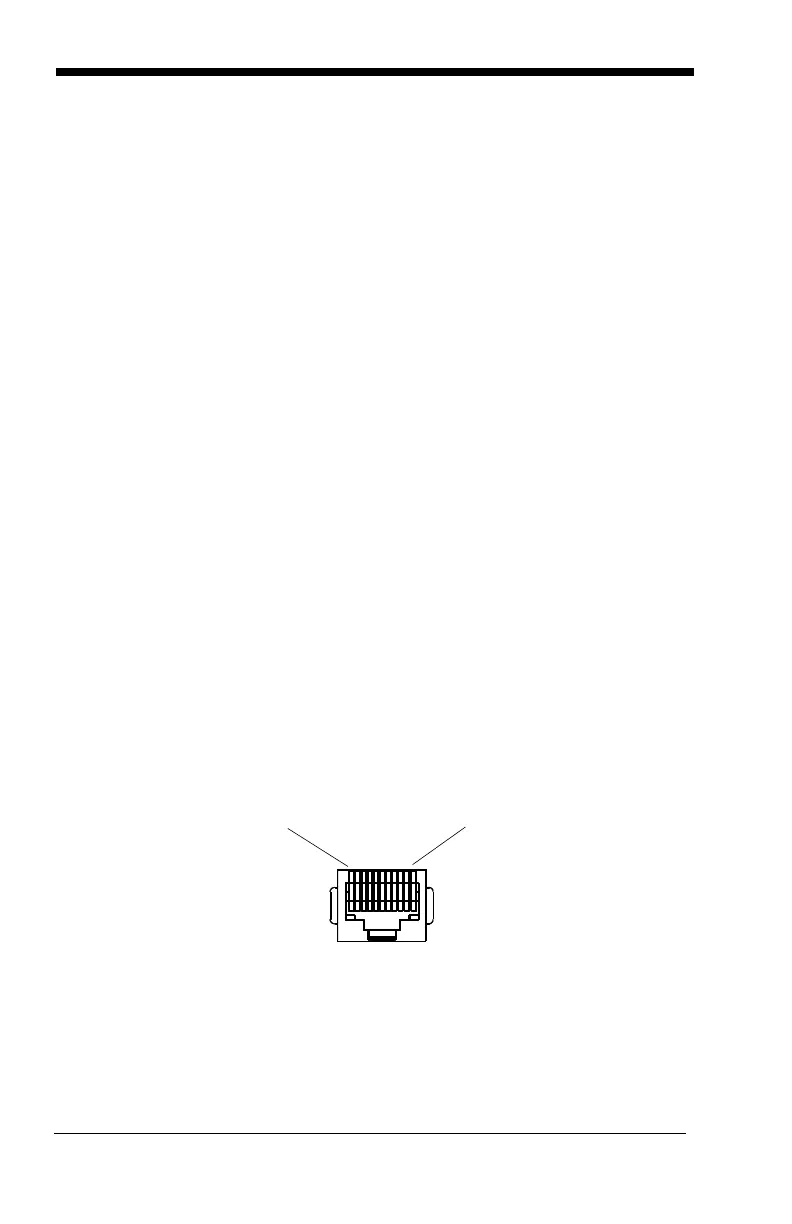

10 Pin RJ41 Modular Plug connects to the base
1 Cable shield 2Cable select 3 Supply ground 4 Transmit data 5 Receive data - serial data to scanner 6 7+5V power 8Transmit Enable 9 10
Note: RS485 signal conversion is performed in the cable.
Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.
