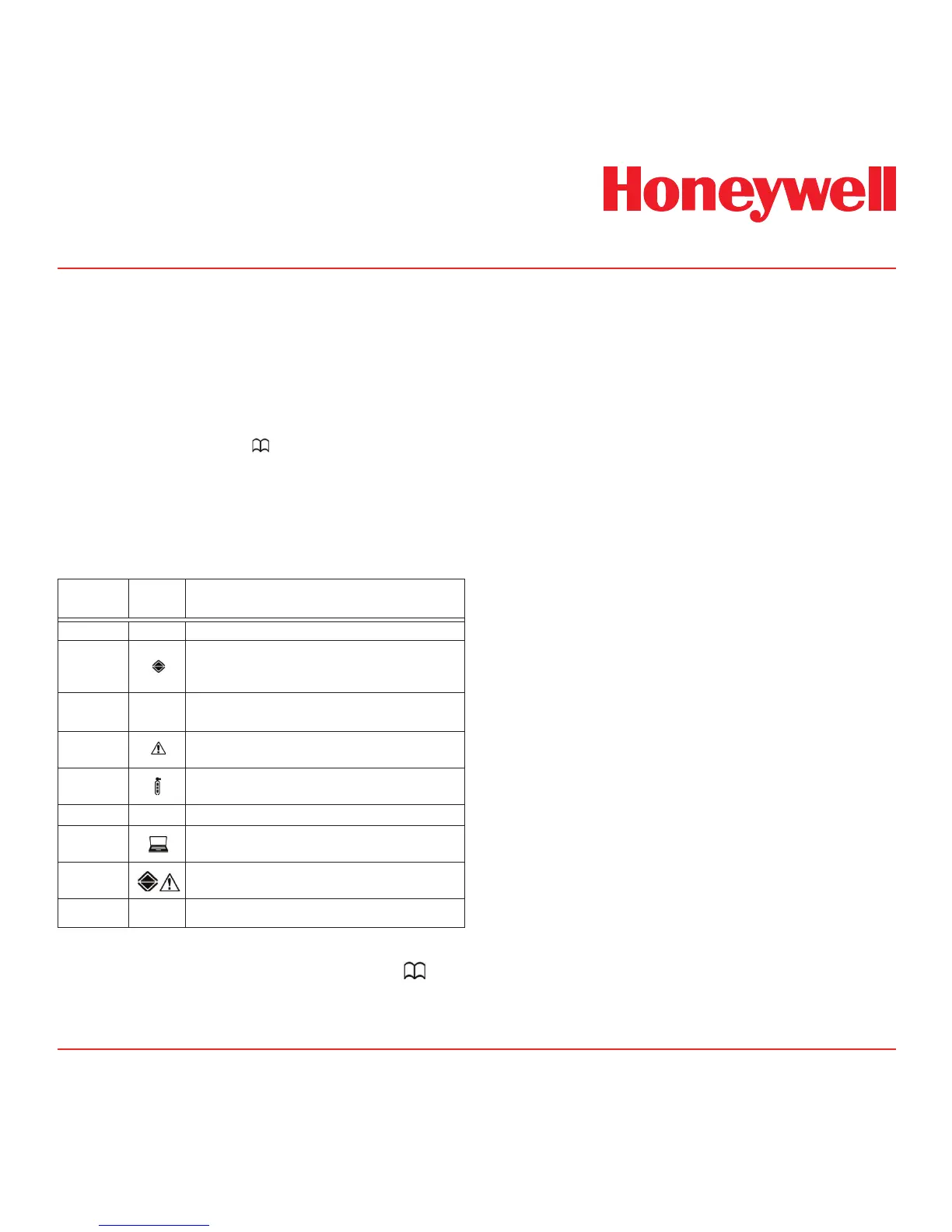

7-2
7 Navigating Modes and Sub-
menus
The following sections provide step-by-step
procedures for navigating all the modes and
submenus.
7.1 Review Mode
Review mode allows the settings of the detector
to be reviewed safely without any changes being
made. Review mode consists of 9 submenus:
Table 7-1. Review mode submenus.
Review
submenu
Icon Settings Displayed
Software
SW
Revision and checksum
Alarms
Sensor cartridge and gas ID codes, alarm 1 and
alarm 2 configuration and set points, time delay,
latching/non latching, energized/de-energized
4-20 mA
output
mA
4 mA, gas conc. corresponding to 4 mA;
20 mA, gas conc. corresponding to 20 mA
Faults
Configuration, Latching/non latching, energized/
de-energized, temperature fault enable/disable
Calibration
Days left to next calibration due and date of last
calibration
Time/Date
tImE
Current year, date and time
IP address
Auto address selection on/off, IP address, sub net
mask values.
Event log
View the date, time and details of the last seven
alarm, fault and maintenance fault events
LCD LCD LCD backlight mode
To select review mode from normal operation, press
the ‘s’ up or ‘t’ down button once. The icon
will be displayed along with the first submenu icon.
Press the ‘s’ up or ‘t’ down buttons to select a
different submenu icon.
7.1.1 Review Software ‘SW’
1. Select the software ‘SW’ submenu and press
‘3’ to accept.
2. The software version number is displayed.
3. Press ‘3’ to display the software checksum
4. Press ‘3’ to display the password key 1.
5. Press ‘3’ to display the password key 2.
6. Press ‘3’ to return to step 1.
7. Repeat steps 1 through 4 to view the information
again or press ‘s’ up or ‘t’ down to select
another submenu.
8. Press ‘X’ to return to normal operation
