IDR-2P, -2A & -6A Repeaters User Manual
Installation Guide
11 997-411-000-9, Issue 9
March 2008
2.6 Isolated RS232 Board (optional)
This board is required only if Notifier-approved
equipment is to be connected to the IDR repeater.

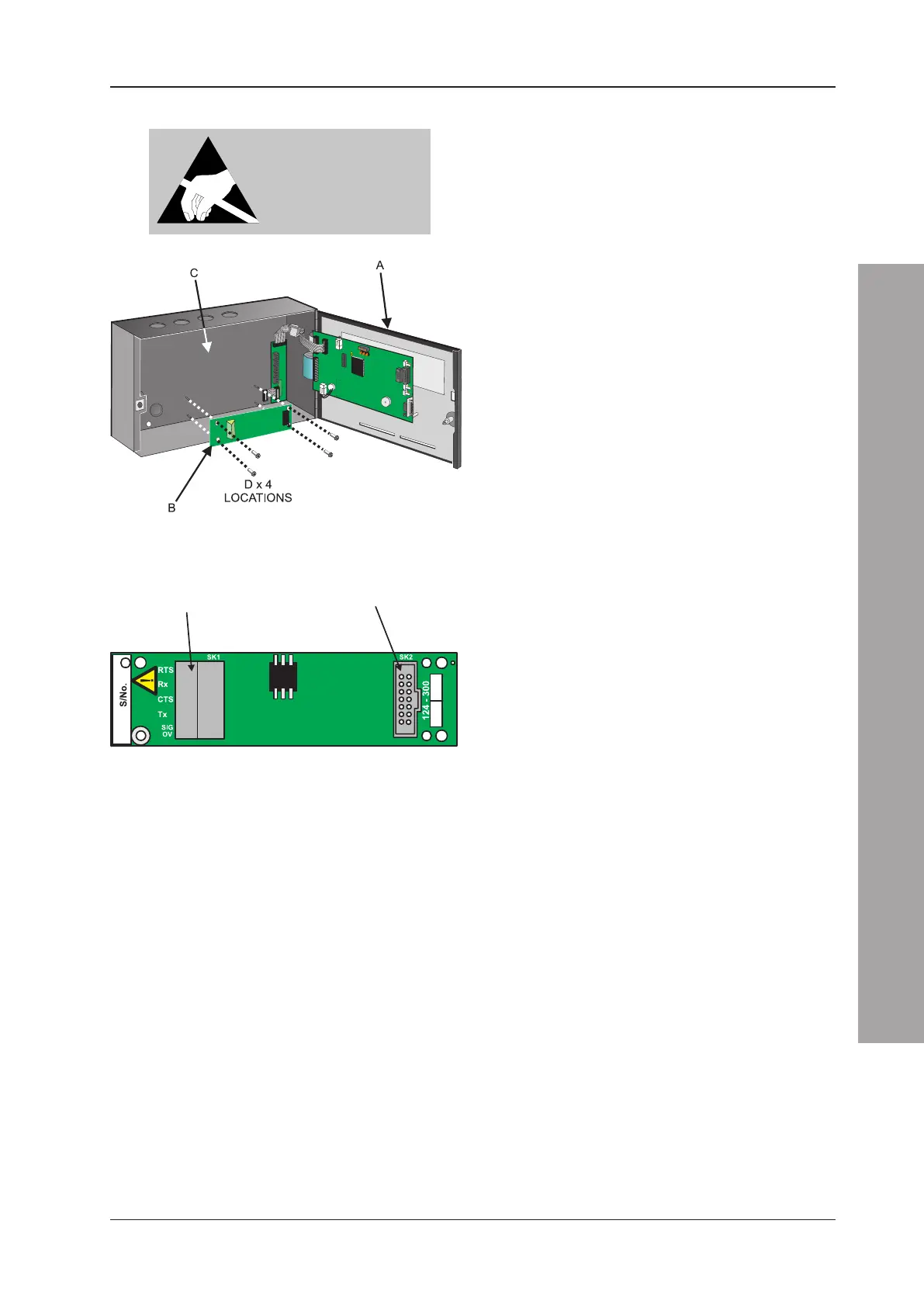

To fit the Isolated RS232 Board:
1 Use a hex key to open the IDR repeater
door (A).
2 Orientate the Isolated RS232 Board (B) as
shown and secure it to the IDR repeater
enclosure (C) using the four M3 X 8 SEM
screws (D) supplied with the Board.
Note: The Board is supplied with additional
fixings for other applications. These can
be discarded.
3 Connect the wiring (see drawing opposite).
a. Use screened multi-core cable to
connect the equipment.
b. Use the supplied ribbon cable to
connect to the Termination Board.
To remove the Isolated RS232 Board, reverse
the procedure for fitting it.
CONNECTION
TO TERMINATION
BOARD
TWO-PART
CONNECTOR FOR
EQUIPMENT
1 & 2
3
ATTENTION
Observe precautions for
handling Electrostatic
Sensitive Devices
