IDR-2P, -2A & -6A Repeaters User Manual
Installation Guide
15 997-411-000-9, Issue 9
March 2008
2.8.3 ID
2
net Network via RS232 -
Address Switches

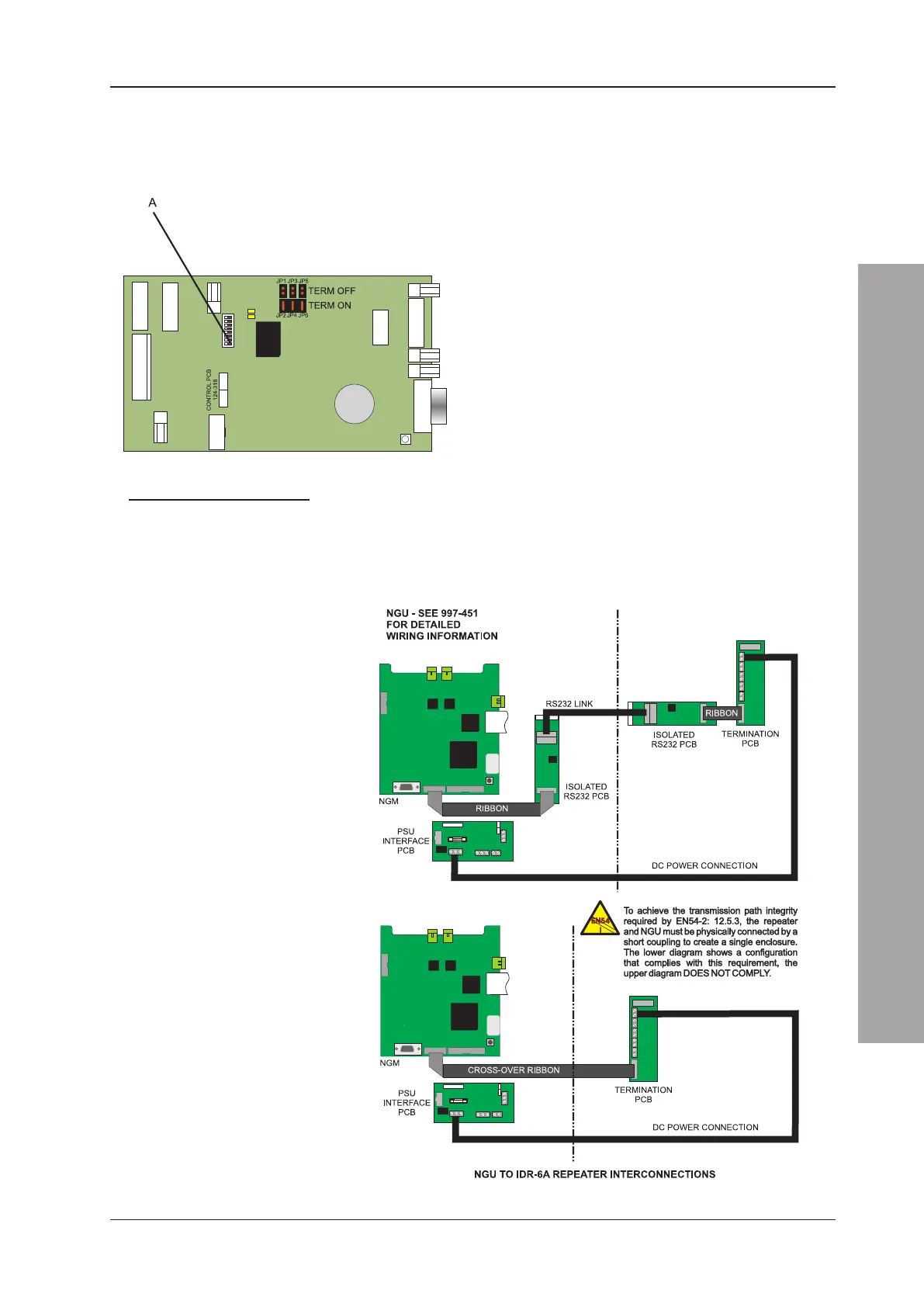

The ID
2
net is connected by one of two methods
as shown in the diagrams below. Connections
to the Isolated RS232 Board are shown in
Section 2.6. DC power connections are shown
in Section 2.8.1. The following must be set
during configuration:
a. The IDR repeater address; this is set in the
range 1 to 63 in binary by using the first 6
switches (A) on the Control Board. The
decode is given below. Addresses above
63 can only be set by using the Off-line
Configuration Tool (in this case the address
switches must all be set to 0). Address 0 is
not valid for ID
2
net.
b. Switch 7 must be set according to the type
of connection used by the repeater, in this
case 1 for ID
2
net via an RS232 link.
c. Set switch 8 according to the type of
network used by the fire panel, in this case
1 for an ID
2
net network.
Address Switch settings (1=on)
123456
1 100000
2 010000
3 110000
4 001000
5 101000
6 011000
7 111000
8 000100
9 100100
10 010100
11 110100
12 001100
13 101100
14 011100
15 111100
16 000010
17 100010
18 010010
19 110010
20 001010
21 101010
22 011010
23 111010
24 000110
25 100110
26 010110
27 110110
28 001110
29 101110
30 011110
31 111110
32 000001
33 100001
34 010001
35 110001
36 001001
37 101001
38 011001
39 111001
40 000101
41 100101
42 010101
43 110101
44 001101
45 101101
46 011101
47 111101
48 000011
49 100011
50 010011
51 110011
52 001011
53 101011
54 011011
55 111011
56 000111
57 100111
58 010111
59 110111
60 001111
61 101111
62 011111
63 111111
