HP 100B SFF User Manual

27
1. Prepare the computer for disassembly (Preparation for Disassembly on page 22).
2. Remove the access panel (Access Panel on page 23).
3. Move any cables aside that interfere with removing the memory modules.
4. Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).

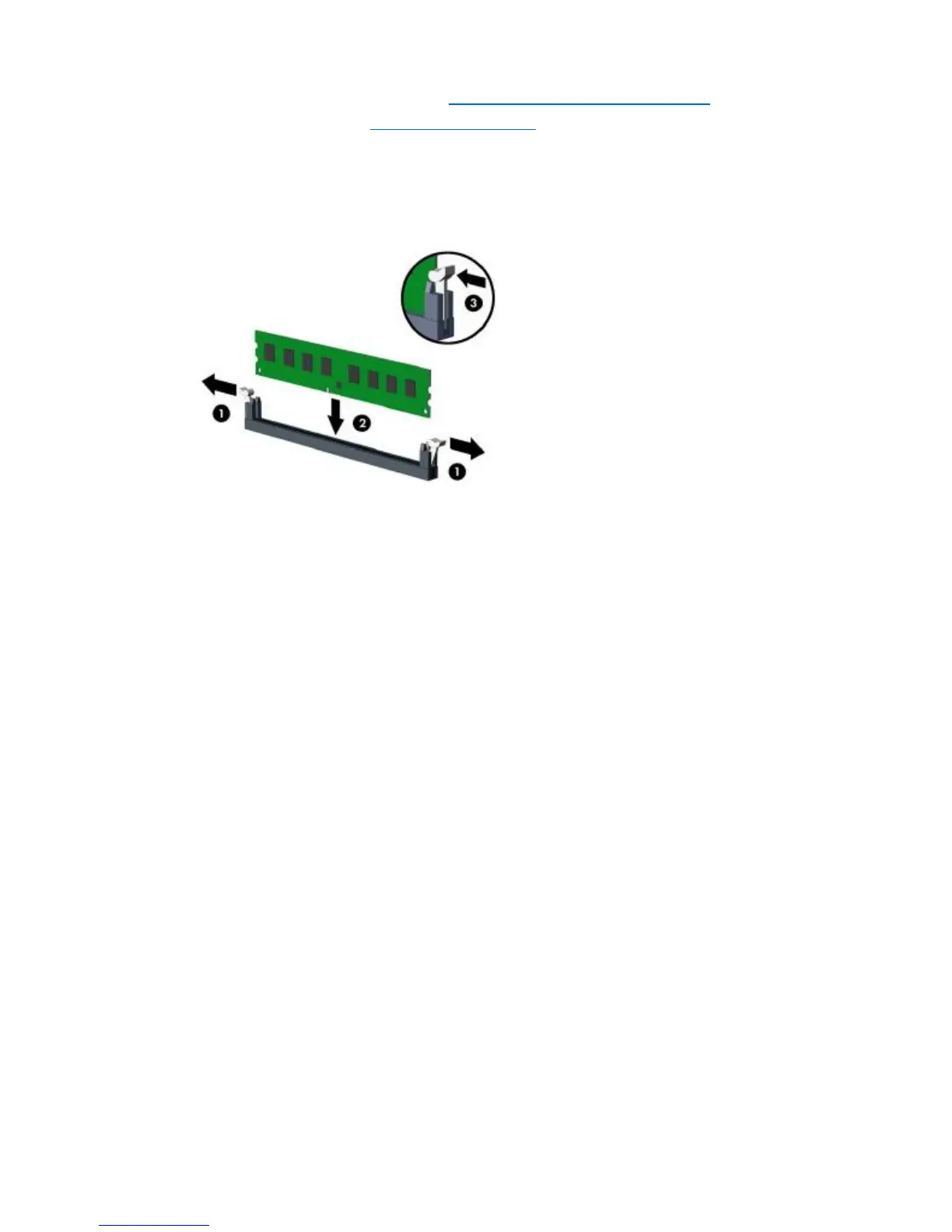

Figure 5-4 Installing a DIMM
5. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
6. Repeat steps 4 and 5 to install any additional modules.
7. Replace the access panel.
8. If the computer was on a stand, replace the stand.
9. Reconnect the power cord and turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.

HP 100B SFF Specifications

Operating Environment

operating temperature range	10° to 35°C
nonoperating temperature range	-30° to 60°C
operating relative humidity	10-90%
nonoperating relative humidity	5-95%
operating maximum altitude	3048 m
nonoperating maximum altitude	9144 m

Power

operating voltage range	90-137Vac
rated voltage range	100-127Vac
rated line frequency	50-60Hz
power output	65 W
rated input current	1.6A @ 90 VAC

Weight and Dimensions

height	27 cm
width	10 cm
depth	34.79 cm
weight	4.8 kg
