Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
Full hinge-up displays are not available as spare parts. Spare parts for displays are
available only at the subcomponent level.
Before removing thedisplay panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 41).
2. Remove the bottom cover (see Bottom cover on page 41).
3. Disconnect the battery cable from the system board (see Battery on page 43).
Remove the display assembly:

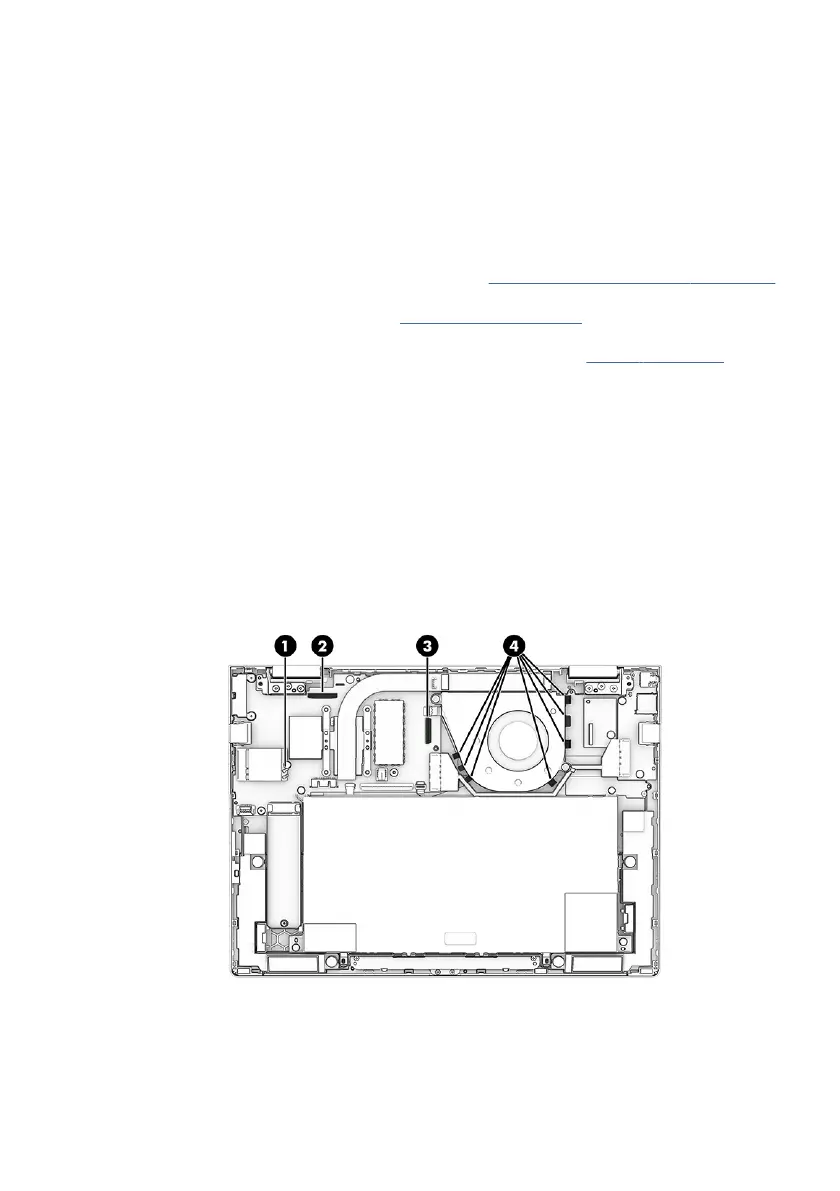

1. Remove the plastic protector and then disconnect the wireless antenna cables (1)
from the WLAN module.
2. Disconnect the camera cable (2) from the ZIF connector on the system board.
3. Remove the Mylar and then disconnect the display cable (3) from the ZIF connector
on the system board.
4. Remove the display cable from the clips along the sides of the fan (4).
5. Remove the six Phillips M2.5 × 5.0 screws (1) that secure the display assembly to
the computer.
Display assembly 67
