HP 3314A Operating Manual

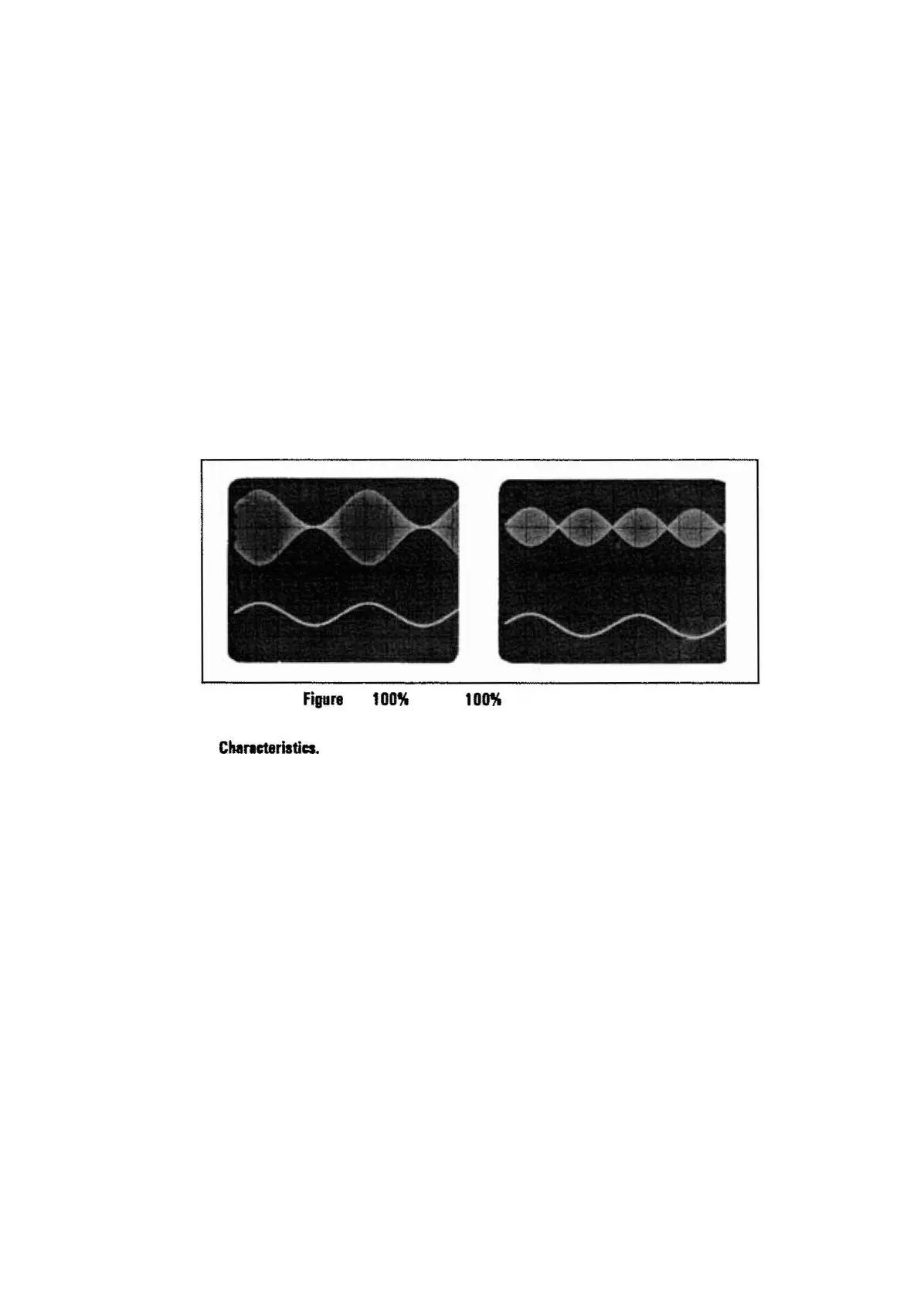

Figure 4. 100% and > 100% Amplitude Modllation
Amplitude Modulation
EXTERNAL MODULATION
j
E
e
56
10kO
2Vp-p
= 100%
(+1V = 2 times carrier ampl)
(-1V
= 0 times carrier amp!)
o to > 100%. Maximum limited by envelope
clipping. see
AM Input Overload
DC
to 100kHz
see AM Specifications
1/2 Displayed Amplitude
Modulation .
3dB Bandwidth .
Envelope Distortion .
Carrier Ampl
with no input .
Input Impedance
Input Sensitivity
AM Inpllt Chancteristics. The AM input has these operating characteristics (all values
are approximate):
The
3314A's output signal (the carrier) can be amplitude modulated to > 100%.
The sense of the AM input, along with the carrier, is inverted when Invert Func-
tion is asserted.
The
3314A modulation capabilities include Amplitude Modulation (AM), Amplitude
Modulation Suppressed Carrier (AMSC) and Frequency Modulation (FM). The
3314A can also be used as a Voltage Controlled Oscillator (VCO). All of these
operations require an external modulating signal.
