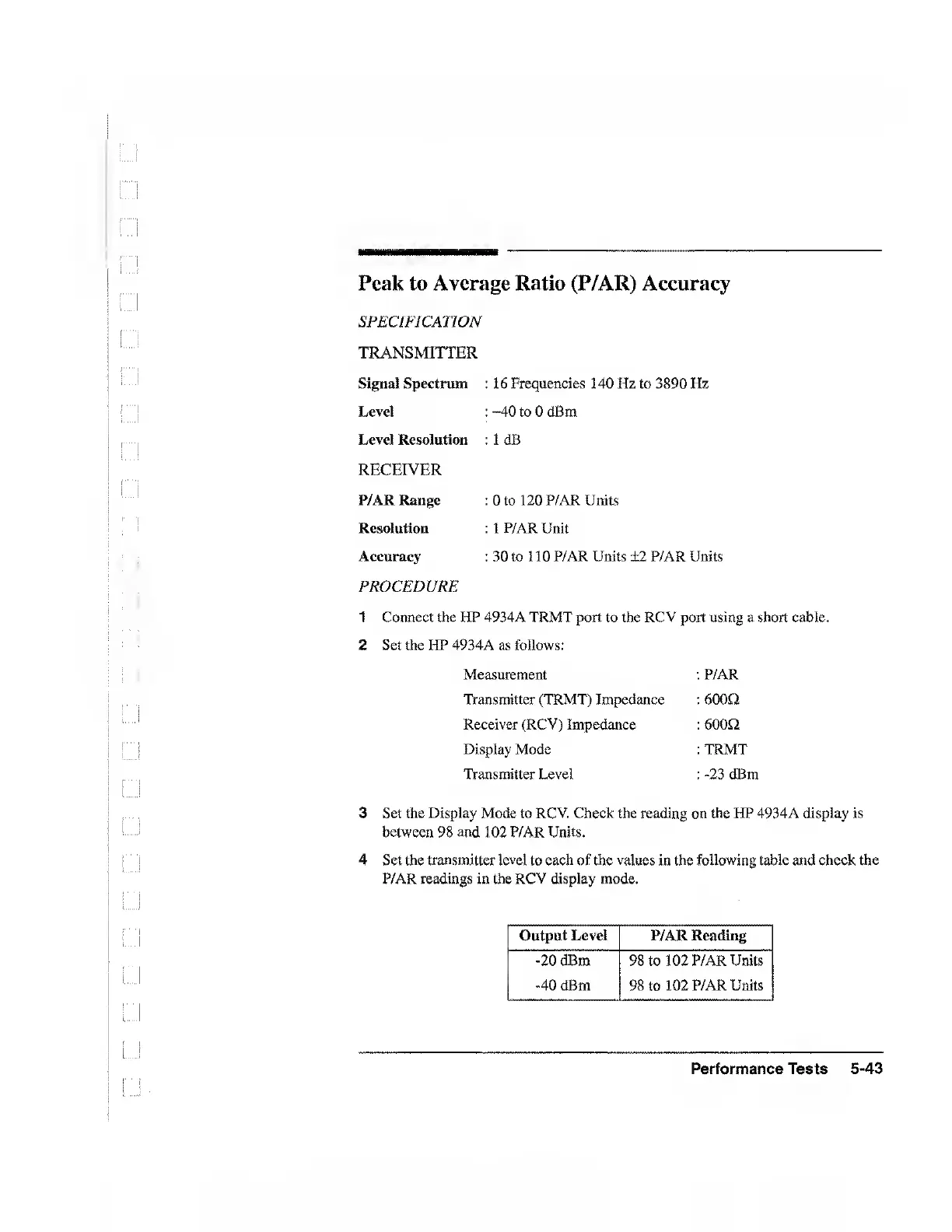

Peak to Average Ratio (P/AR) Accuracy
SPECmCAllON
TRANSMITTER
Signal Spectrum : 16 Frequencies 140 Hz to 3890 Hz
Level : -40 to 0 dBm
Level Resolution : 1 dB
RECEIVER
P/AR Range : 0 to 120 P/AR Units
Resolution : 1 P/AR Unit
Accuracy : 30 to 110 P/AR Units +2 P/AR Units
PROCEDURE
1 Connect the HP 4934A TRMT port to the RCV port using a short cable.
2 Set the HP 4934A as follows;
Measurement ; P/AR
Transmitter (TRMT) Impedance : 6000
Receiver (RCV) Impedance : 6000
Display Mode : TRMT
Transmitter Level : -23 dBm
3 Set the Display Mode to RCV. Check the reading on the HP 4934A display is
between 98 and 102 P/AR Units,
4 Set the transmitter level to each of the values in the following table and check the
P/AR readings in the RCV display mode.
Output Level P/AR Reading
-20 dBm
-40 dBm
98 to 102 P/AR Units
98 to 102 P/AR Units
Performance Tests 5-43
