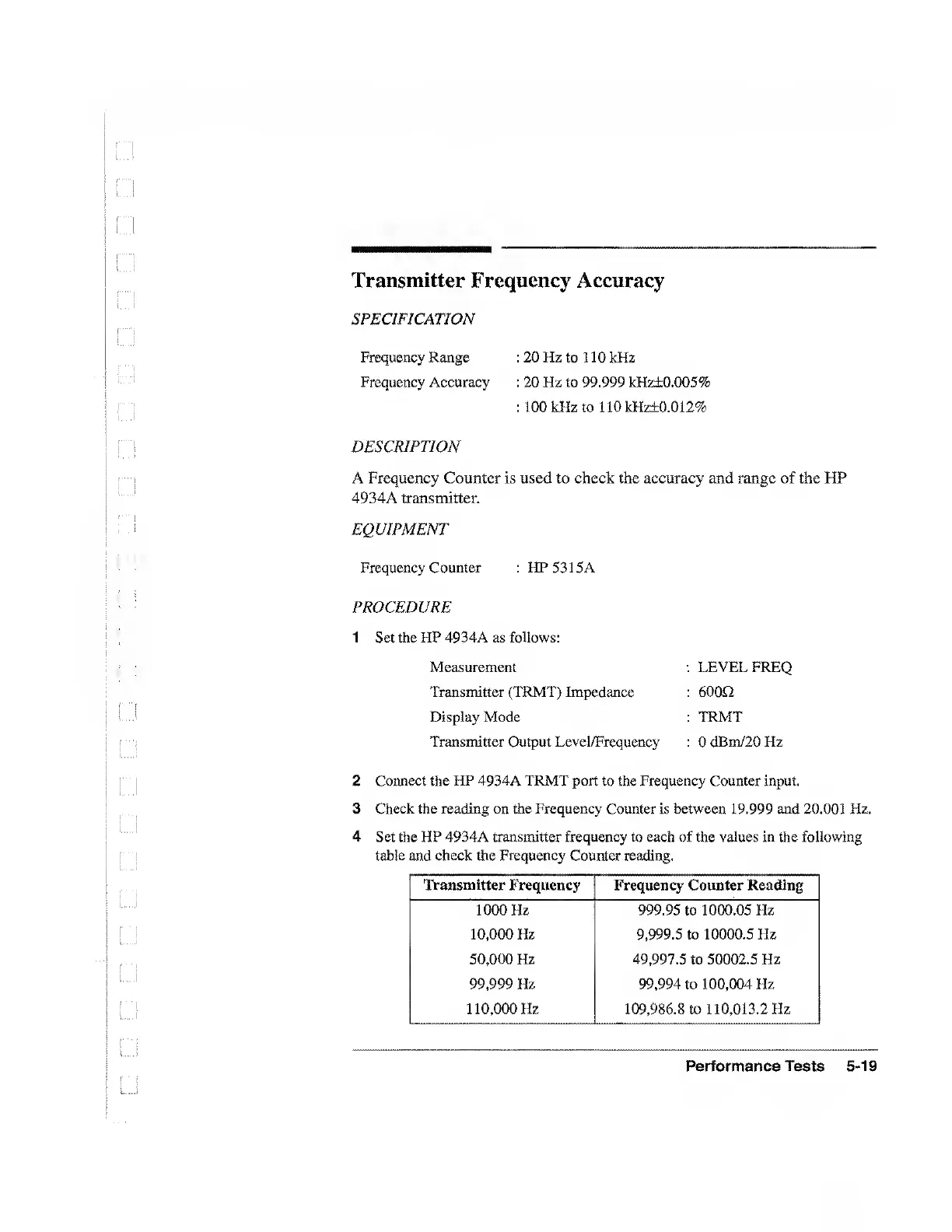

Transmitter
Frequency
Accuracy
SPECIFICATION
Frequency
Range
:
20
Hz
to
110
kHz
Frequency
Accuracy
:
20
Hz
to
99.999
kHz±0,005%
:
100
kHz
to
110kHz±0.012%
DESCRIPTION
A
Frequency
Counter
is
used
to
check
the
accuracy
and
range
of
the
HP
4934A
transmitter.
EQUIPMENT
Frequency
Counter
:
HP5315A
PROCEDURE
1
Set
the
HP
4934A
as
follows:
Measurement
:
LEVEL
FREQ
Transmitter
(TRMT)
Impedance
:
6000
Display
Mode
:
TRMT
Transmitter
Output
Level/Frequency
:
0
dBm/20
Hz
2
Connect
the
HP
4934A
TRMT
port
to
the
Frequency
Counter
input.
3
Check
the
reading
on
the
Frequency
Counter
is
between
19.999
and
20.001
Hz.
4
Set
the
HP
4934A
transmitter
frequency
to
each
of
the
values
in
the
following
table
and
check
the
Frequency
Counter
reading,
Transmitter
Frequency
Frequency
Counter
Reading
1000
Hz
999.95
to
1000.05
Hz
10,000
Hz
9,999.5
to
10000.5
Hz
50,000
Hz
49,997.5
to
50002.5
Hz
99,999
Hz
99,994
to
100,004
Hz
110,000
Hz
109,986.8
to
110,013.2
Hz
Performance
Tests
5-19
82
