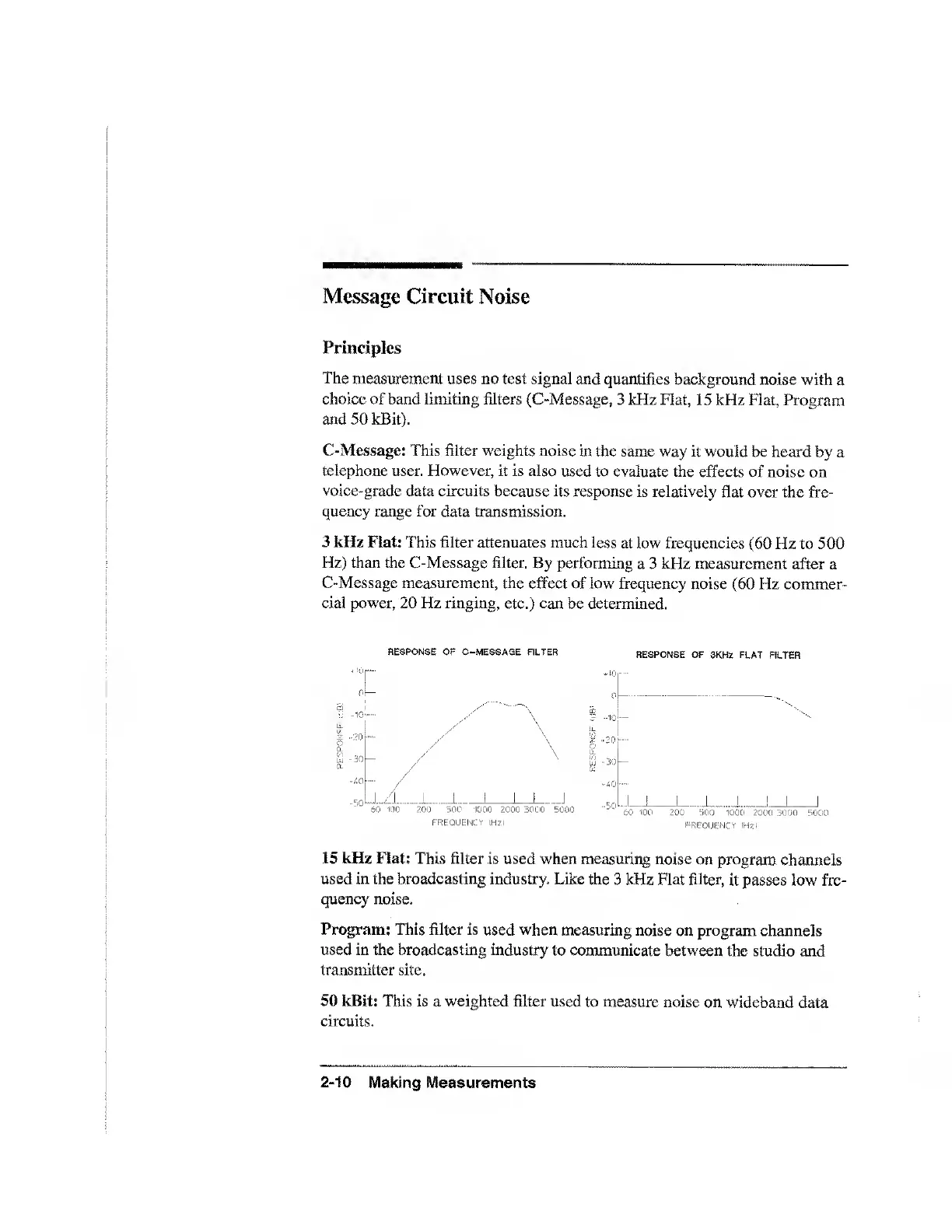

Message Circuit Noise
Principles
The measurement uses no test signal and quantifies background noise with a
choice of band limiting filters (C-Message, 3 kHz Flat, 15 kHz Flat, Program
and 50 kBit).
C-Message: This filter weights noise in the same way it would be heard by a
telephone user. However, it is also used to evaluate the effects of noise on
voice-grade data circuits because its response is relatively flat over the fre¬
quency range for data transmission.
3 kHz Flat: This filter attenuates much less at low frequencies (60 Hz to 500
Hz) than the C-Message filter. By performing a 3 kHz measurement after a
C-Message measurement, the effect of low frequency noise (60 Hz commer¬
cial power, 20 Hz ringing, etc.) can be determined.
RESPONSE OF C-MESSAQE FILTER
RESPONSE OF 3KHz FLAT FILTER
—
(!
" \
^ -1C
IL
/
/
z "20
\
'i
/
a!
. /
-40
1 1 .J
200 :i00 1000 2000 3000 3000
FREQUENCY lH?l
200 300 1000 2000 3000 50C)0
FREQUENCY iHzt
15 kHz Flat: This filter is used when measuring noise on program channels
used in the broadcasting industry. Like the 3 kHz Flat filter, it passes low fre¬
quency noise.
Program: This filter is used when measuring noise on program channels
used in the broadcasting industry to communicate between the studio and
transmitter site.
50 kBit: This is a weighted filter used to measure noise on wideband data
circuits.
2-10 Making Measurements
