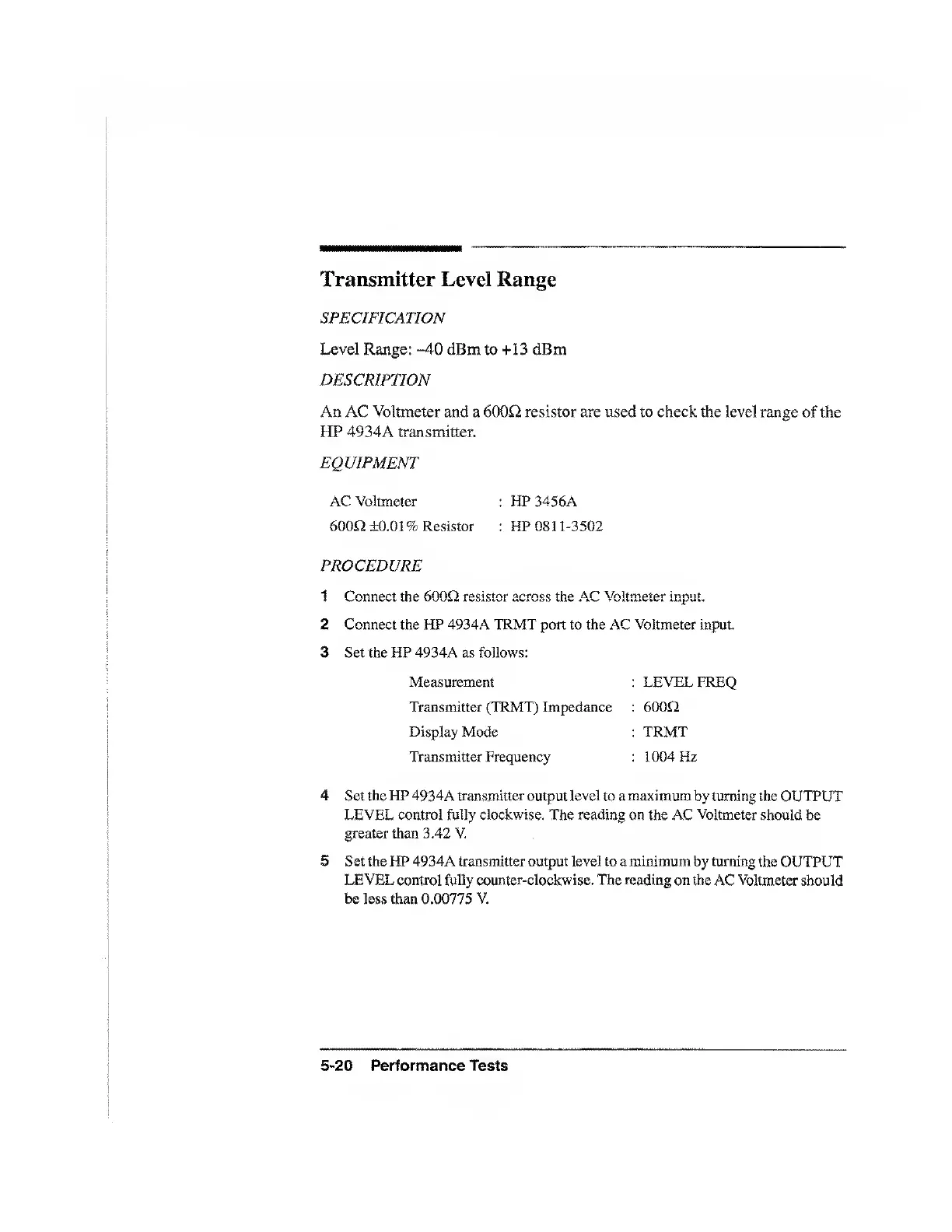

Transmitter
Level
Range
SPECIFICATION
Level
Range:
-40
dBm
to
+13
dBm
DESCRIPTION
An
AC
Voltmeter
and
a
6000
resistor
are
used
to
check
the
level
range
of
the
HP
4934A
transmitter.
EQUIPMENT
AC
Voltmeter
:
HP
3456A
6000+0.01%
Resistor
;
HP
0811-3502
PROCEDURE
1
Connect
the
6000
resistor
across
the
AC
Voltmeter
input.
2
Connect
the
HP
4934A
TRMT
port
to
the
AC
Voltmeter
input.
3
Set
the
HP
4934A
as
follows:
Measurement
:
LEVEL
FREQ
Transmitter
(TRMT)
Impedance
:
6000
Display
Mode
:
TRMT
Transmitter
Frequency
:
1004
Hz
4
Set
the
HP
4934A
transmitter
output
level
to
a
maximum
by
turning
the
OUTPUT
LEVEL
control
fully
clockwise.
The
reading
on
the
AC
Voltmeter
should
be
greater
than
3.42
V.
5
Set
the
HP
4934A
transmitter
output
level
to
a
minimum
by
turning
the
OUTPUT
LEVEL
control
fully
counter-clockwise.
The
reading
on
the
AC
Voltmeter
should
be
leSvS
than
0.00775
V.
5-20
Performance
Tests
83
