HP 8340b User Manual

A29J2
OUTPUT
CHECK
Proper
Waveform Parameters
As
shown
in
the
figure
below,
and
within
the
following
parameters:
Frequency
=
20
MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^
-10dBc
REF
IS
dB/
MKR
20.04
MHz
10.0
dBm
RTTEN
30
dB
-0.30
dBm
-
L-.
.
;
.
|
j ^
5TRRT
5.0
MHz STOP
45.0
MHz
SMP
1.20
sec
RES
BM
100
kHz
VBM
1
kHz

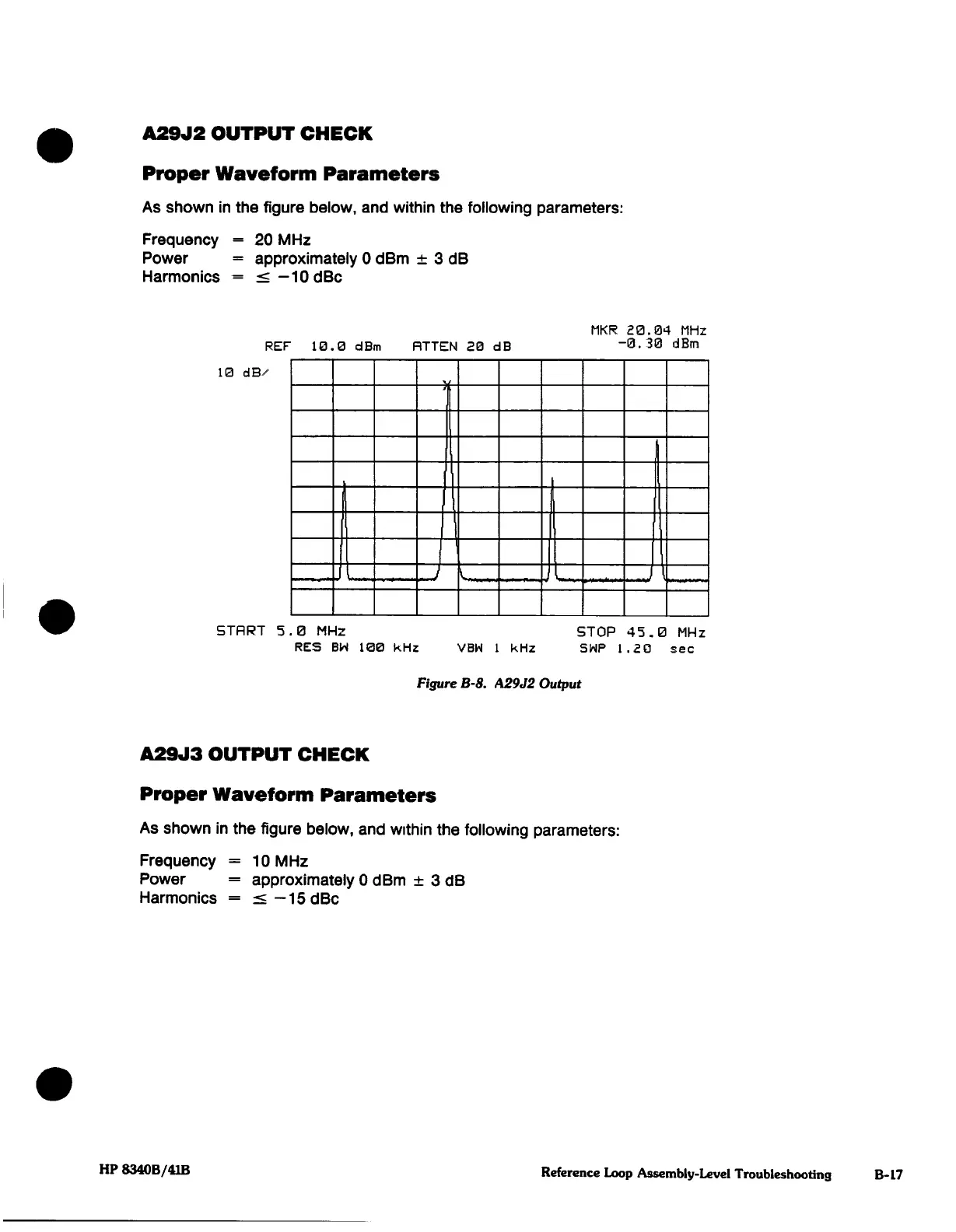

Figure
B-8.
A29J2
Output
A29J3 OUTPUT
CHECK
Proper
Waveform
Parameters
As
shown
in
the
figure
below,
and
within
the
following
parameters:
Frequency
=
10MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^—15dBc
HP
8340B/41B
Reference
Loop
Assembly-Level
Troubleshooting
