HP 8340b User Manual

Motherboard
Wiring
List

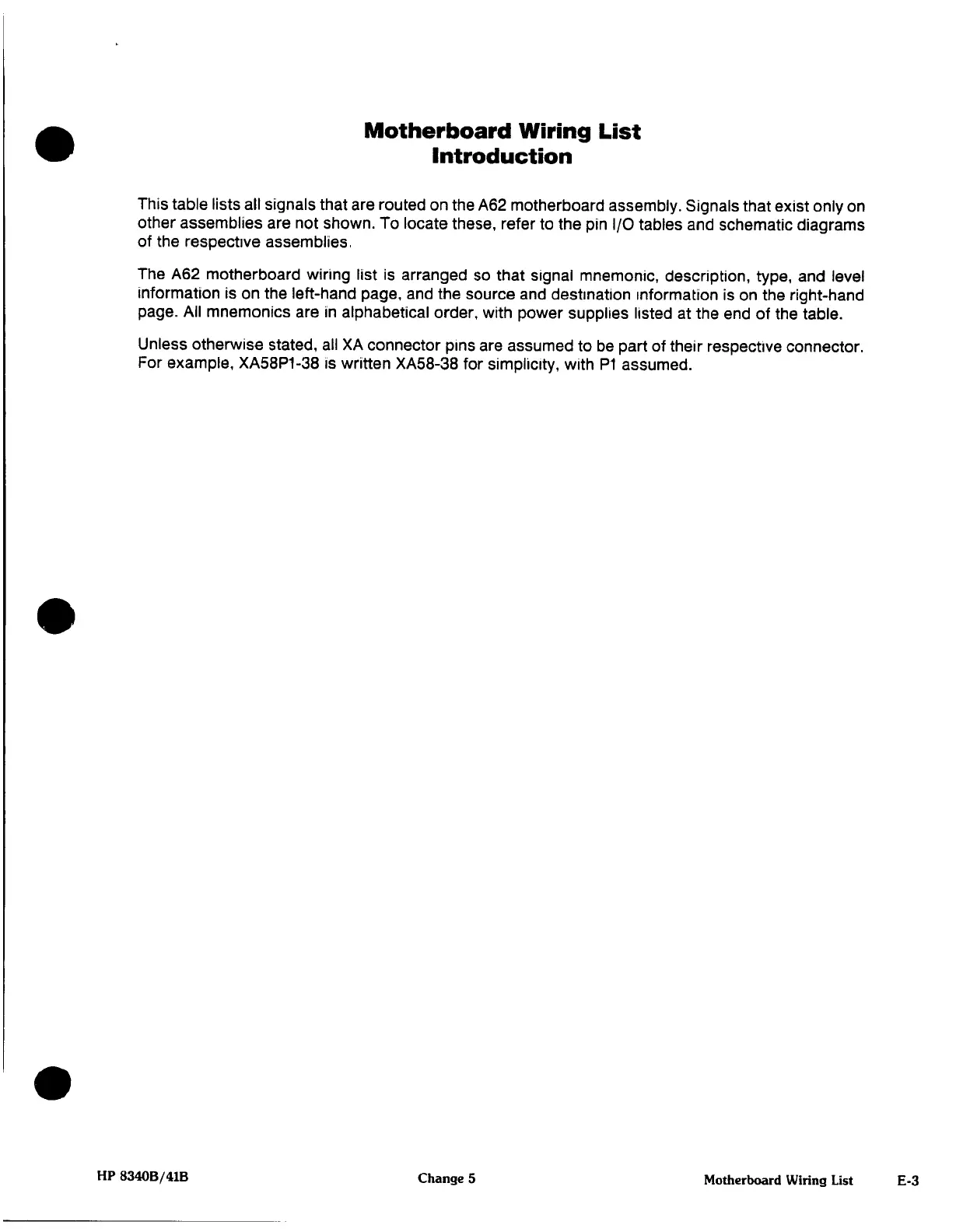

Introduction
This
table
lists
all
signals
that
are
routed
on
the
A62
motherboard
assembly.
Signals
that
exist
only
on
other
assemblies
are
not
shown.
To locate
these,
refer
to the
pin
I/O
tables
and schematic
diagrams
of the
respective
assemblies,
The
A62
motherboard wiring
list is
arranged
so
that
signal
mnemonic,
description,
type,
and level
information
is
on
the
left-hand
page,
and the
source
and destination
information
is
on
the
right-hand
page.
All
mnemonics
are
in
alphabetical
order,
with
power
supplies
listed
at
the
end
of the
table.
Unless otherwise
stated,
all
XA
connector
pins
are
assumed
to be
part
of their
respective connector.
For
example,
XA58P1-38
Is
written
XA58-38
for
simplicity,
with
P1
assumed.
HP8340B/41B
Change
5
Motherboard
Wiring
List
E-3
