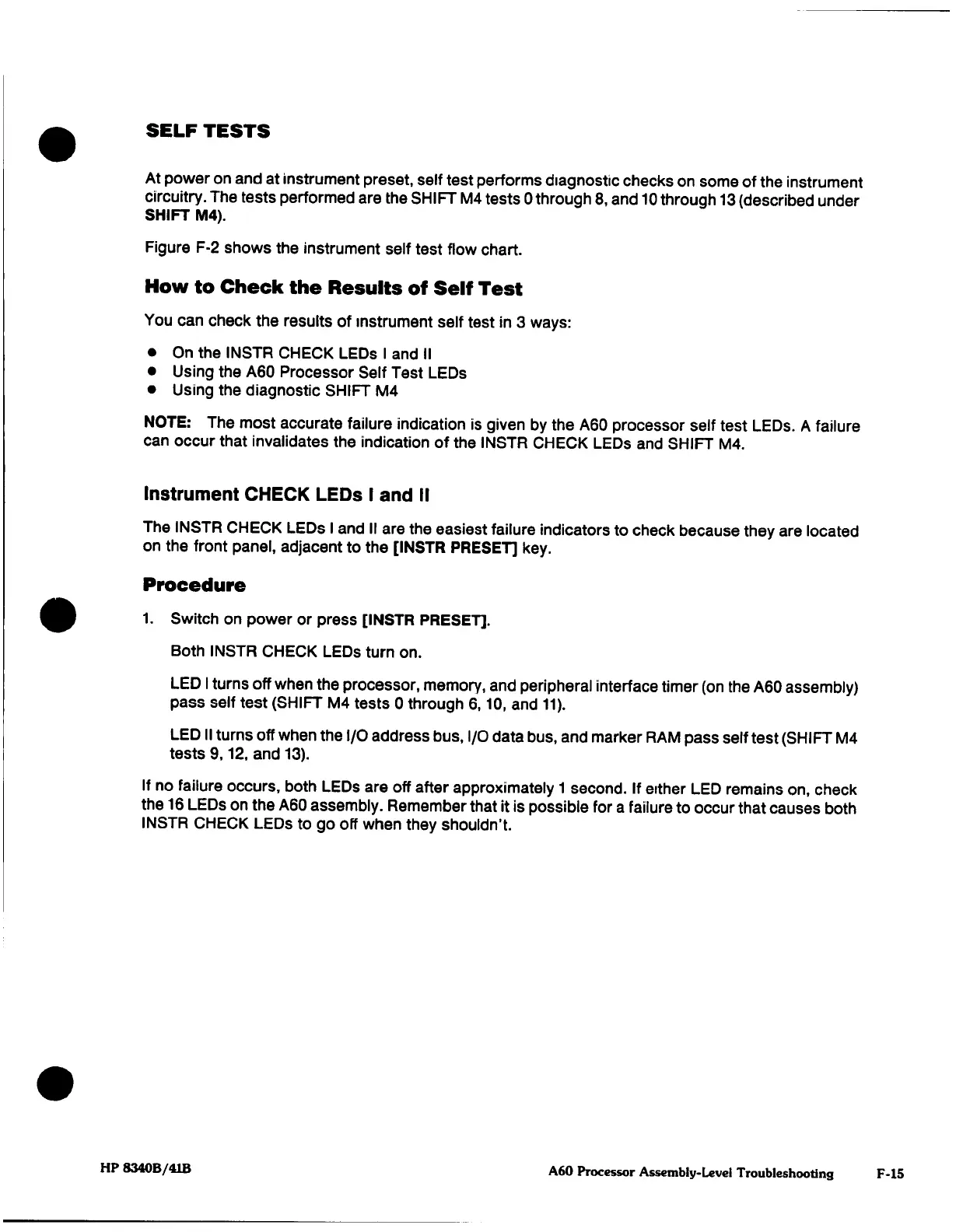

SELF
TESTS
At
power
on
and at
instrument
preset,
self
test
performs
diagnostic
checks
on some
of
the
instrument
circuitry.
The tests
performed
are
the SHIFT M4
tests
0
through
8,
and
10
through
13
(described
under
SHIFT
M4).
Figure
F-2 shows
the
instrument
self
test
flow
chart.
How
to
Check
the
Results of
Self
Test
You
can
check
the
results
of
instrument
self
test
in
3
ways:
•
On the
INSTR CHECK LEDs
I
and
II
•
Using
the
A60
Processor
Self
Test
LEDs
•
Using
the
diagnostic
SHIFT
M4
NOTE:
The
most accurate
failure
indication
is
given
by
the
A60
processor
self
test
LEDs.
A
failure
can
occur
that
invalidates
the
indication
of the
INSTR
CHECK
LEDs
and
SHIFT
M4.
Instrument
CHECK
LEDs
I
and
II
The
INSTR CHECK LEDs
I
and
II
are
the
easiest
failure
indicators to check
because
they
are
located
on
the
front
panel,
adjacent to
the
[INSTR PRESET]
key.
Procedure
1.
Switch
on
power
or
press
[INSTR
PRESET].
Both INSTR
CHECK
LEDs
turn
on.
LED
I
turns
off
when
the
processor,
memory,
and peripheral interface
timer
(on the
A60
assembly)
pass
self
test
(SHIFT
M4
tests
0
through
6,10,
and
11).
LED
II
turns
off
when
the
I/O
address
bus,
I/O
data
bus,
and
marker
RAM
pass
self
test
(SHIFT
M4
tests
9,12,
and
13).
If
no
failure
occurs,
both
LEDs
are
off
after
approximately
1
second.
If
either
LED
remains
on,
check
the
16
LEDs
on
the
A60
assembly.
Remember
that
it
is
possible
for
a
failure
to
occur
that
causes
both
INSTR
CHECK LEDs
to
go
off
when
they shouldn't.
HP 8340B/41B A60
Processor Assembly-Level
Troubleshooting
F-15
