REF
10.0
dBm RTTEN
20
dB
MKR
10.07
MHz
1.20
dBm
1B
dB-'
STRRT
5.0
MHz
RES
BM
100
kHz
VBM
1
kHz
STOP
35.0
MHz
SMP
900
msec
Figure
B-9.
A29J3
Output
A29J4

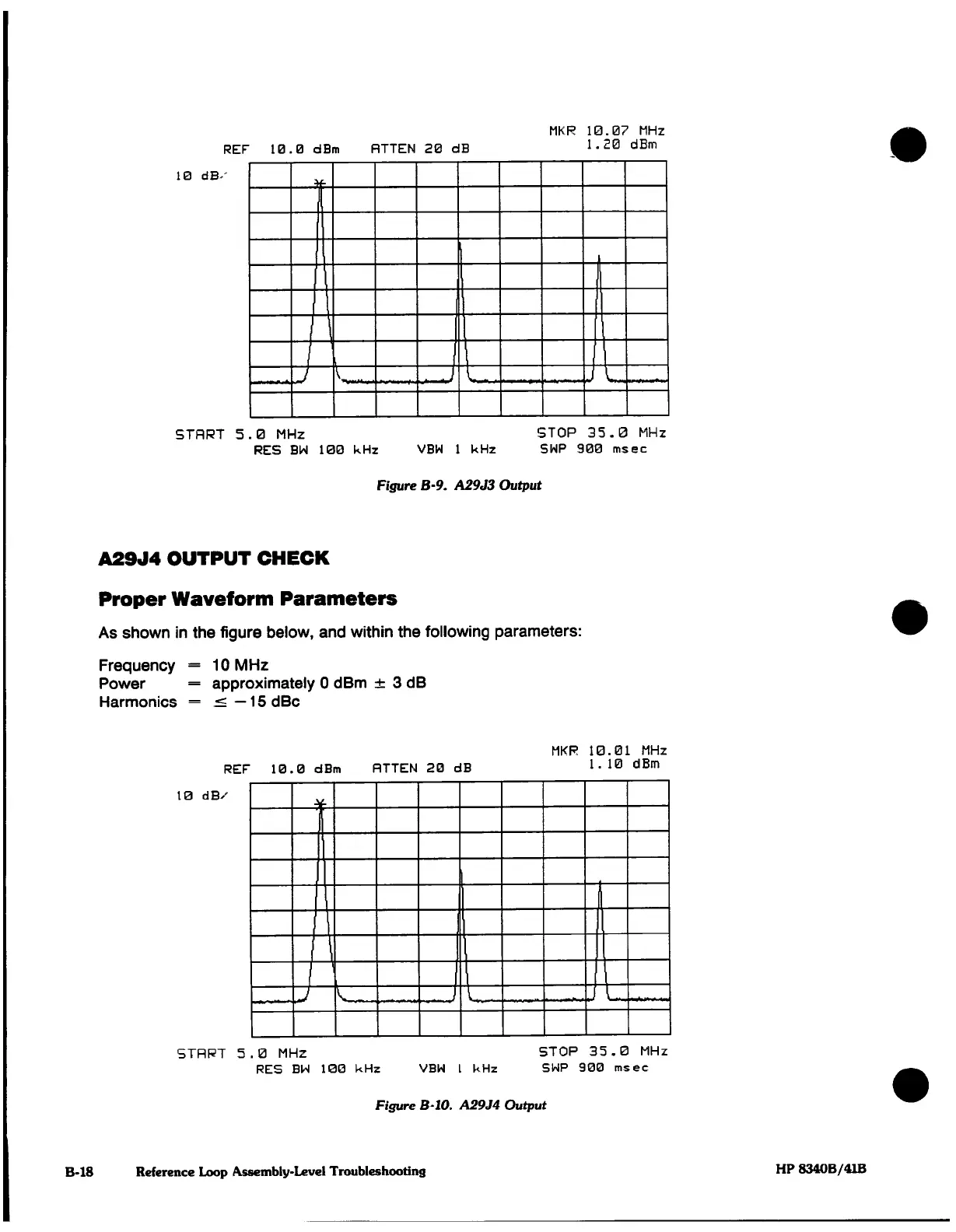

OUTPUT CHECK
Proper Waveform
Parameters
As
shown
in
the
figure
below,
and
within
the
following
parameters:
Frequency
=
10MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^—15dBc
MKR
10.01
MHz
1.10
dBm
RTTEN
20
dB REF
10.0
dBm
10
dB/
5TRPT
5.0
MHz
RES
BM 1130
kHz
VBW
I
kHz
STOP
35.0
MHz
SHP
900
msec
Figure B'10.
A29J4
Output
Reference Loop Assembly-Level Troubleshooting
