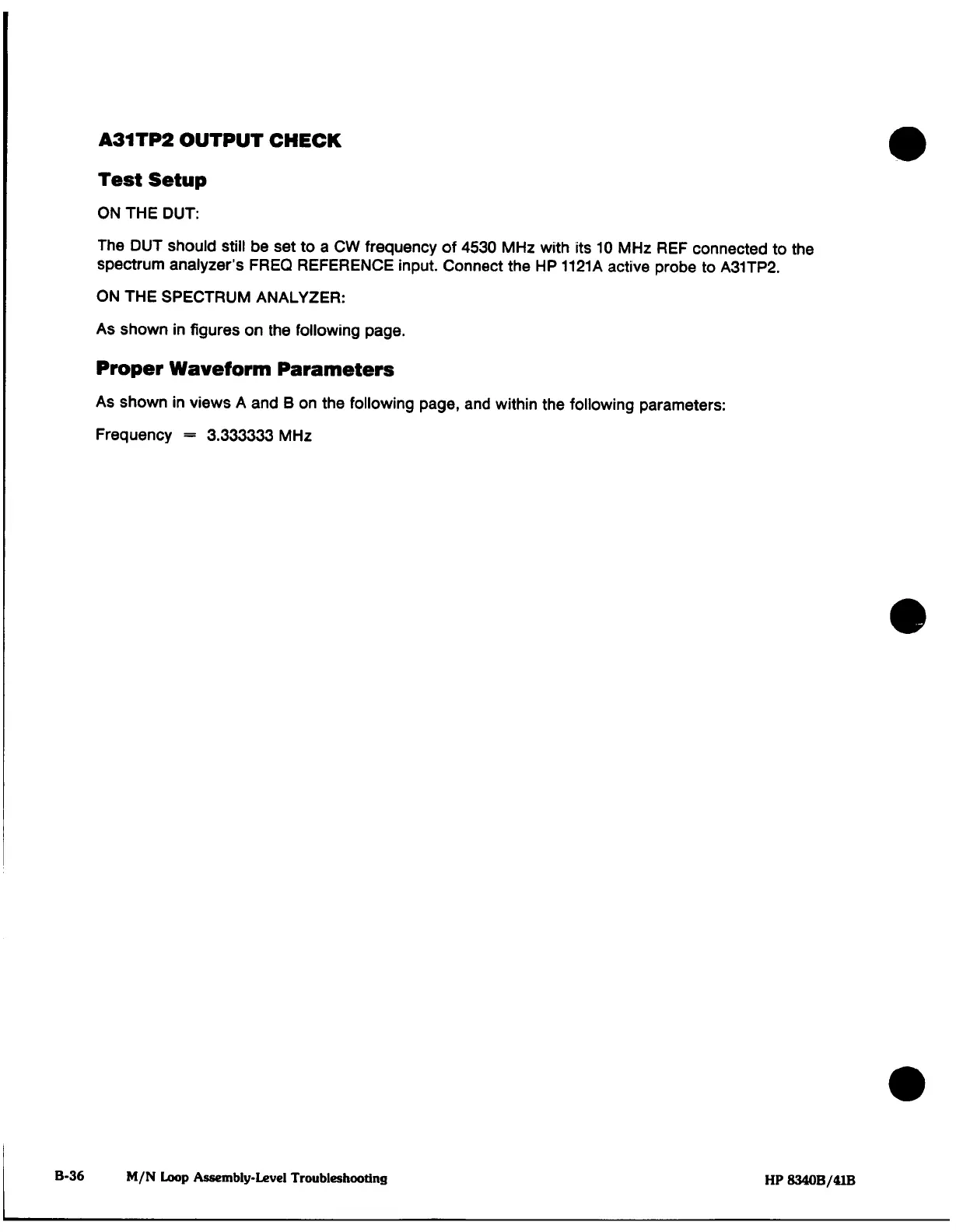

A31TP2
OUTPUT CHECK
Test
Setup
ON
THE DUT:
The DUT
should
still
be
set
to
a
CW
frequency
of
4530
MHz
with
its
10
MHz
REF
connected
to the
spectrum
analyzer's
FREQ REFERENCE
input.
Connect
the
HP
1121A
active probe
to
A31TP2.
ON
THE
SPECTRUM ANALYZER:
As
shown
in
figures
on
the
following
page.
Proper Waveform
Parameters
As
shown
in
views
A
and
B
on
the
following
page,
and
within
the
following
parameters:
Frequency
=
3.333333 MHz
B-36
M/N
Loop
Assembly-Level Troubleshooting
HP 8340B/41B
