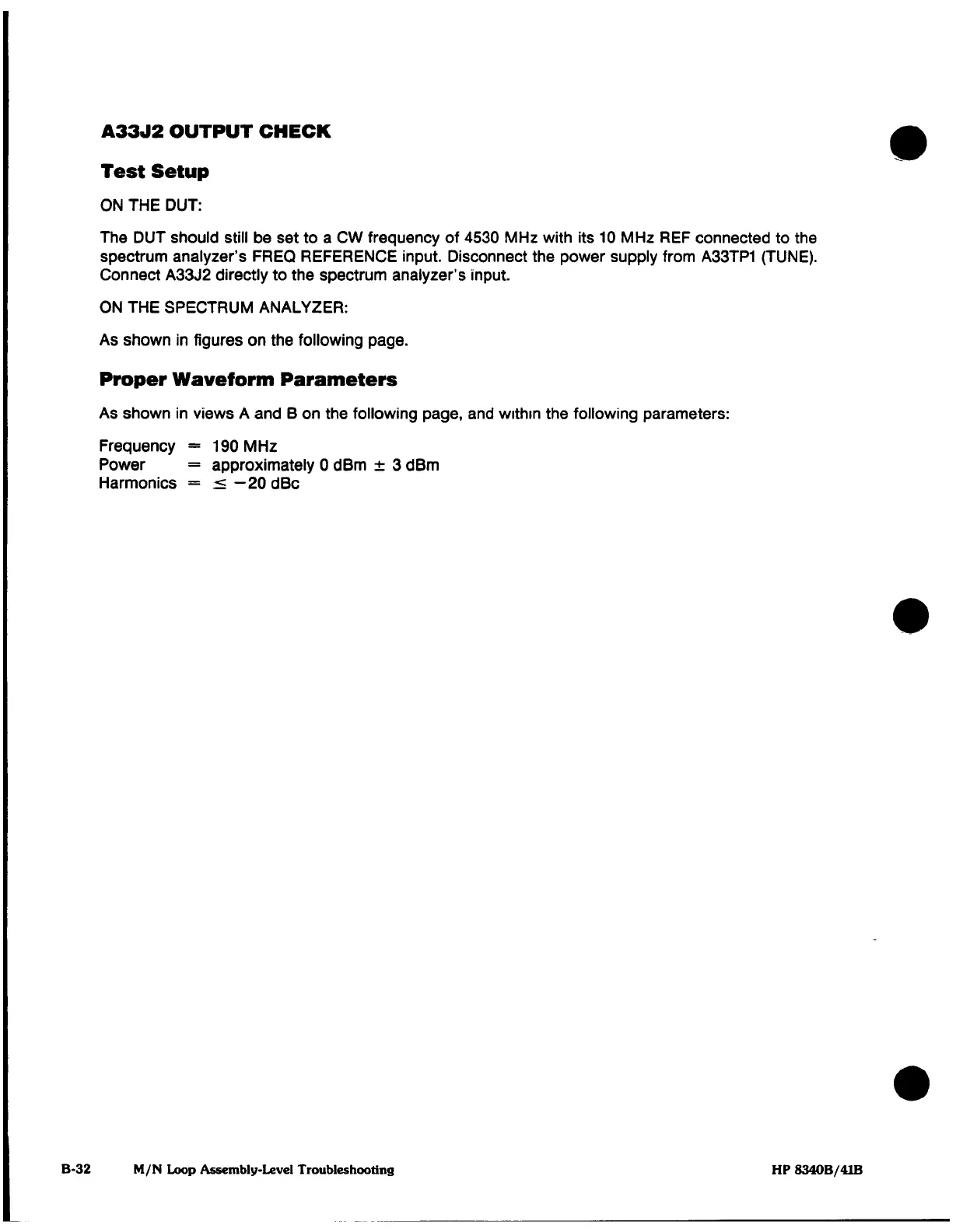

A33J2 OUTPUT
CHECK
Test
Setup
ON
THE
DUT:
The
DUT
should
still
be
set
to
a
CW
frequency
of
4530
MHz
with
its 10
MHz
REF
connected
to
the
spectrum
analyzer's
FREQ REFERENCE
input.
Disconnect
the
power
supply
from
A33TP1
(TUNE).
Connect
A33J2
directly
to
the
spectrum
analyzer's input.
ON
THE SPECTRUM
ANALYZER:
As
shown
in
figures
on
the
following
page.
Proper
Waveform Parameters
As
shown
in
views
A
and
B
on
the
following
page,
and
within
the
following
parameters:
Frequency
=
190MHz
Power
=
approximately
0
dBm
±
3
dBm
Harmonics
=
-s
—20 dBc
B-32
M/N Loop Assembly-Level
Troubleshooting
HP
8340B/41B
