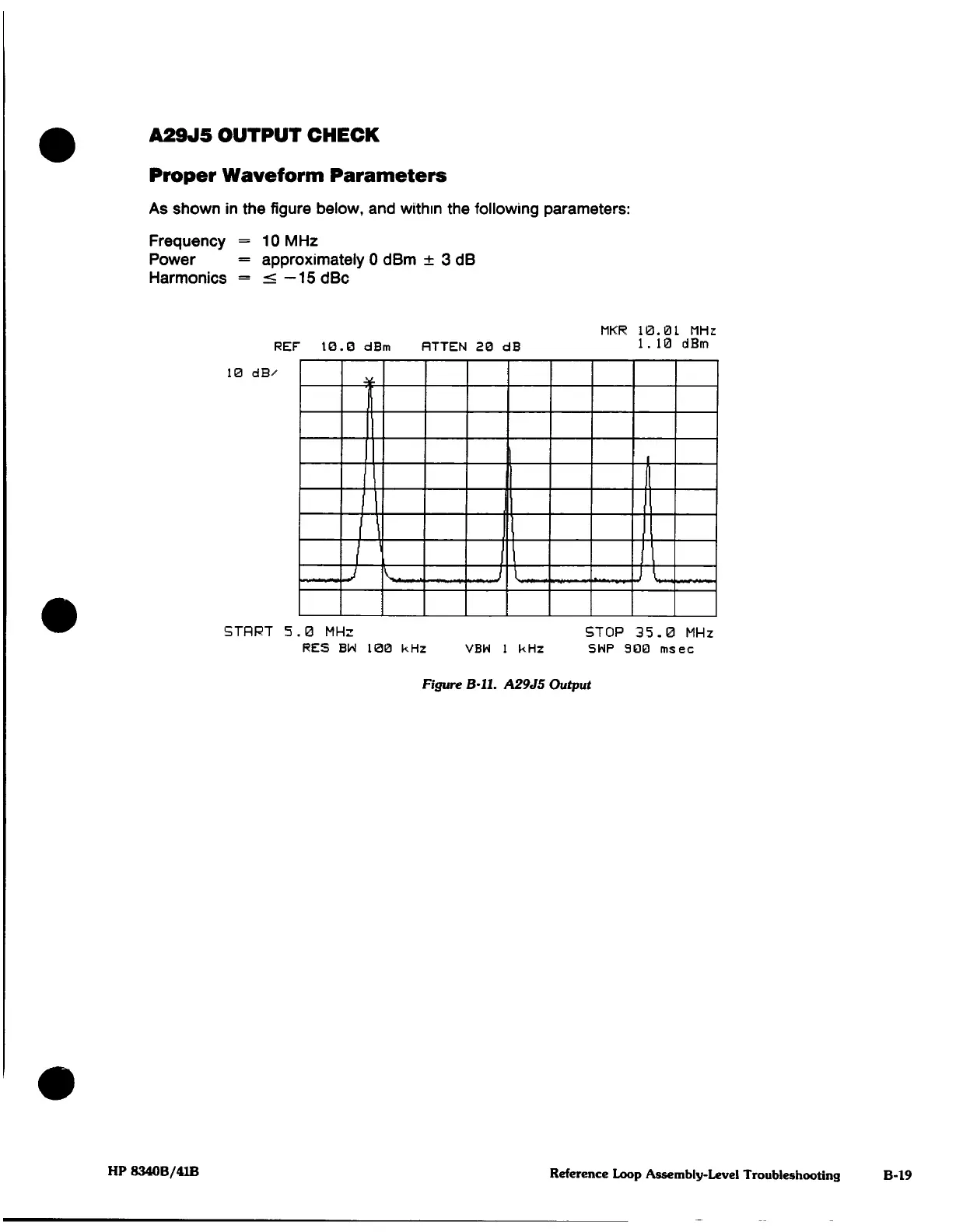

A29J5
OUTPUT
CHECK
Proper
Waveform
Parameters
As
shown
in
the figure
below,
and
within
the following
parameters:
Frequency
=
10
MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^—15dBc
MKR
10.01
MHz
1.10
dBm
RTTEN Z0
dB
REF
10.0
dBm
10
dB^
STRRT
5.0
MHz
RES
BW
100
kHz
VBM
1
kHz
STOP
35.0
MHz
SMP
900
msec
Figure
B-ll.
A29J5
Output
HP 8340B/41B
Reference
Loop
Assembly-Level
Troubleshooting
