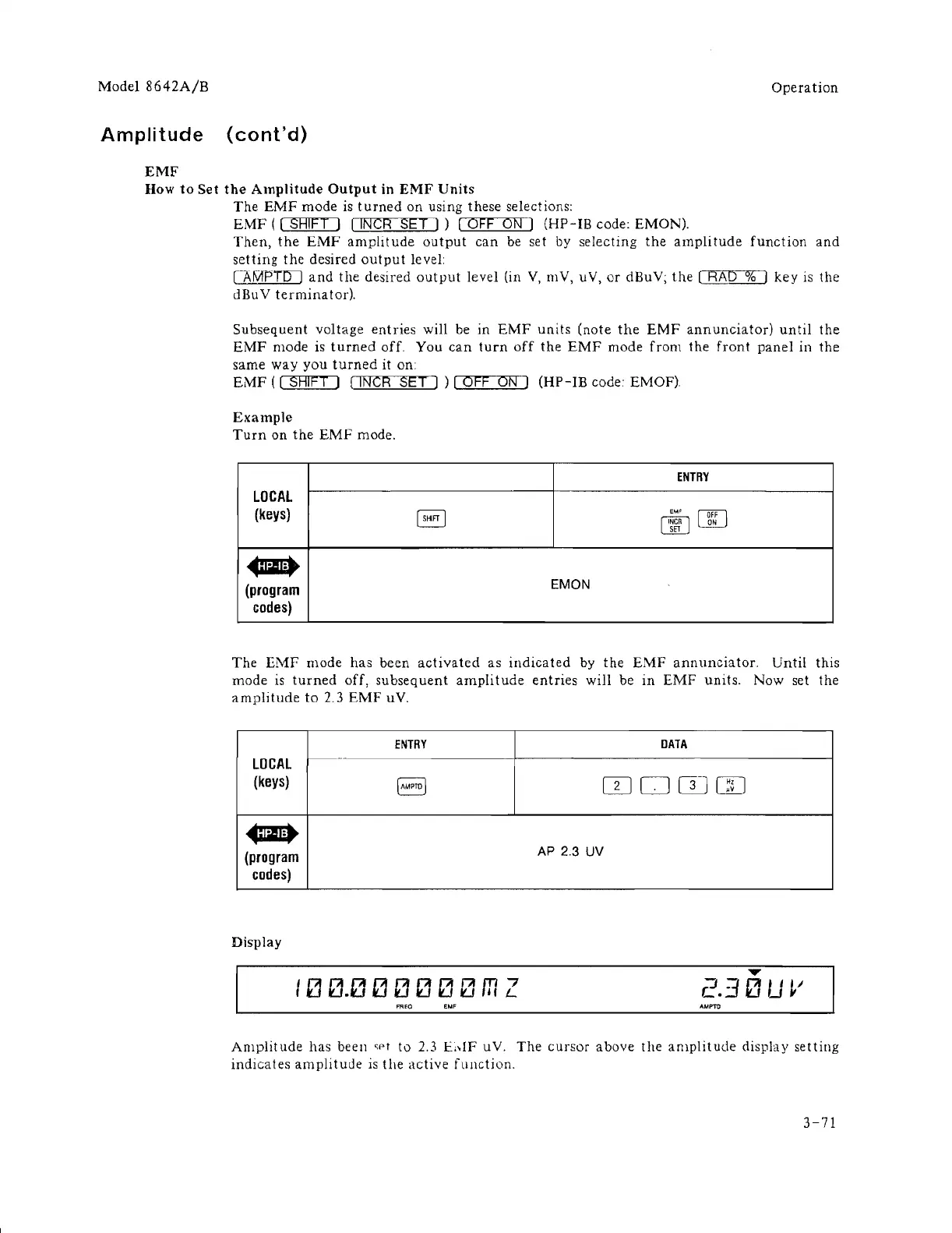

Model 8642A/B Operation
Amplitude (cont'd)
EMF
How to Set the Amplitude Output in EMF Units
The EMF mode is turned on using these selections:
EMF ( ( SHIFT) IINCR SET I) I OFF ON I (HP-IB code: EMON).
Then, the EMF amplitude output can be set by selecting the amplitude function and
setting the desired output level:
[AMPTP] and the desired output level (in V, mY, uV, or dEuV; the ( RAD % ) key is the
dEuV terminator).
Subsequent voltage entries will be in EMF units (note the EMF annunciator) until the
EMF mode is turned off. You can turn off the EMF mode from the front panel in the
same way you turned it on:
EMF ( ( SHIFT) ! INCR SET) ) ( OFF ON ) (HP-IB code: EMOF)
Example
Turn on the EMF mode.
ENTRY
LOCAL
(keys)
[ SHIFT I
EMP ~
00 ON
SET
~
(program
EMON
codes)
The EMF mode has been activated as indicated by the EMF annunciatoL Until this
mode is turned off, subsequent amplitude entries will be in EMF units. Now set the
amplitude to 2.3 EMF uV.
ENTRY
DATA
LOCAL
1---'
(keys)
(AMpm)
CIJ 0 OJ CO
.v
~
(program
AP 2.3 UV
codes)
Display
.....
t 0 0.0 0 0 0 0 0 m z
2.30 U V
'"F
AMPTO
Amplitude has been ,pt to 2.3 E"IF uV. The cursor above the amplitude display setting
indicates amplitude is the active fUllction.
3-71
