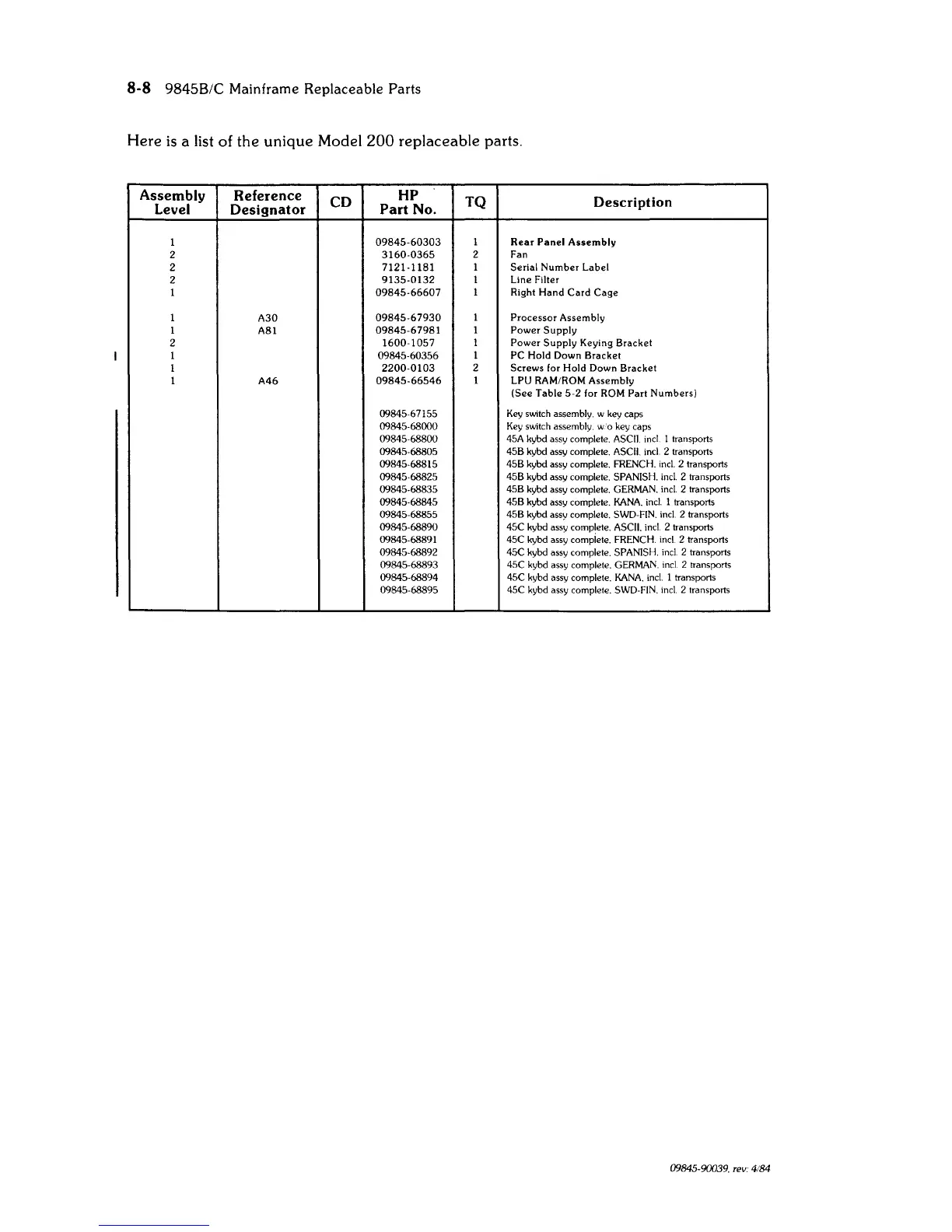

8-8 9845B/C Mainframe Replaceable Parts
Here is a list of the unique Model 200 replaceable parts.
Assembly Reference
CD
HP
TQ
Description
Level Designator Part No.
1
09845-60303 1 Rear Panel Assembly
2
3160-0365 2 Fan
2
7121-1181 1 Serial Number Label
2
9135-0132 1 Line Filter
1
09845-66607
1 Right Hand Card Cage
1
A30
09845-67930
1 Processor Assembly
1
A81
09845-67981 1 Power Supply
2
1600-1057 1 Power Supply Keying Bracket
1
09845-60356 1 PC Hold Down Bracket
1
2200-0103 2 Screws for Hold Down Bracket
1 A46
09845-66546
1
LPU RAM/ROM Assembly
(See Table 5-2 for ROM Part Numbers)
09845-67155 Key switch assembly. w key caps
09845-68000 Key switch assembly. w 0 key caps
09845-68800 45A kybd assy complete. ASCII. inc! 1 transports
09845-68805 45B kybd assy complete. ASCII. inc! 2 transports
09845-68815
45B kybd assy complete. FRENCH. incl. 2 transports
09845-68825 45B kybd assy complete. SPANISH. incl. 2 transports
09845-68835
45B kybd assy complete. GERMAN. incl. 2 transports
09845-68845 45B kybd assy complete. KANA. incl. 1 transports
09845-68855 45B kybd assy complete. SWD-FIN. incl. 2 transports
09845-68890 45C kybd assy complete. ASCII. inc! 2 transports
09845-68891 45C kybd assy complete. FRENCH. inc! 2 transports
09845-68892
45C kybd assy complete. SPANISH. incl. 2 transports
09845-68893 45C kybd assy complete. GERMAN. incl. 2 transports
09845-68894 45C kybd assy complete. KANA. incl. 1 transports
09845-68895 45C kybd assy complete. SWD-FIN. incl. 2 transports
09845-90039. rev: 4/84
