39.6 cm (15.6 in) display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
Full hinge-up displays are not available as spare parts. Spare parts for displays are available only at the
subcomponent level.
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 31).

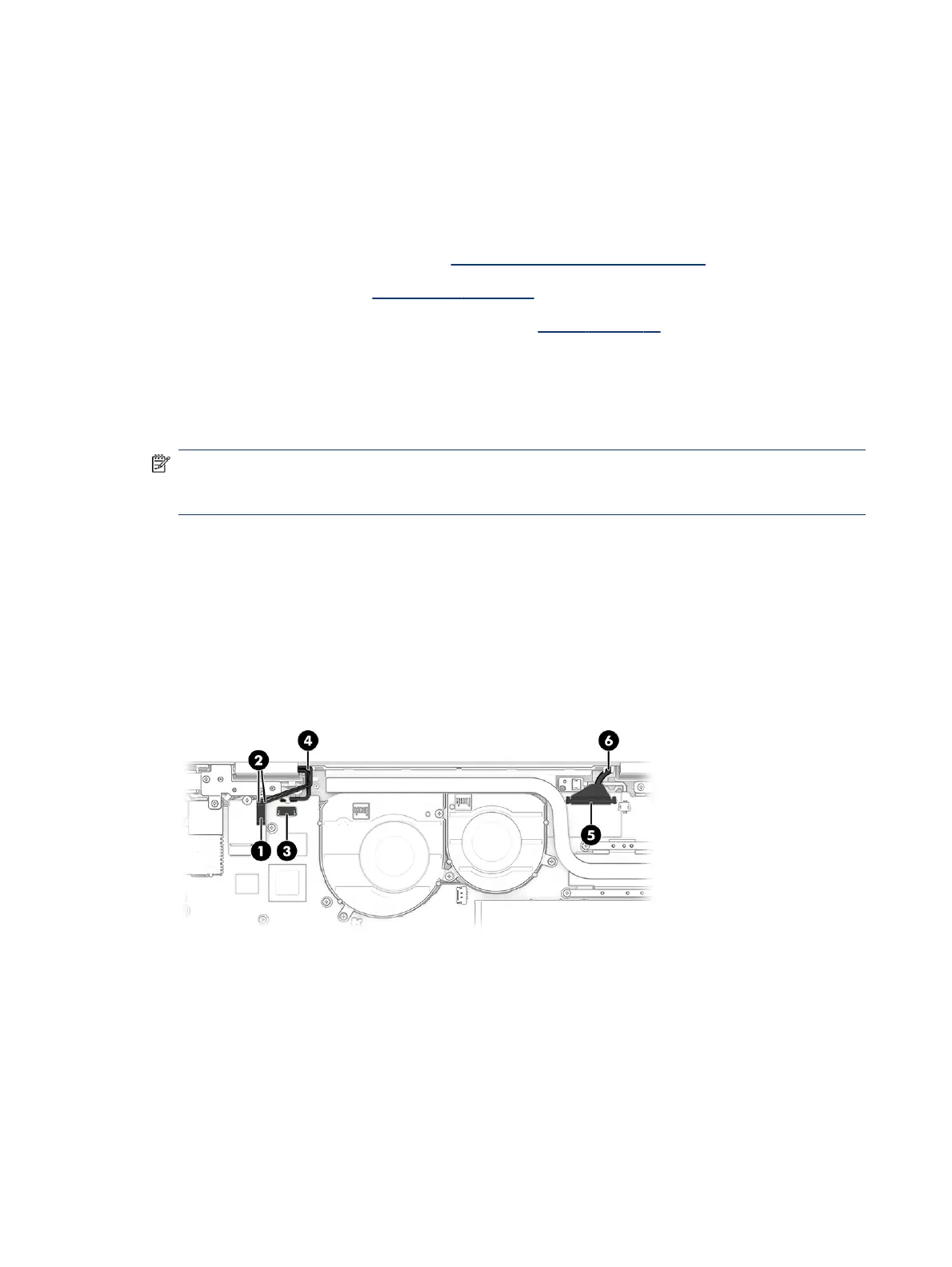

Remove the display assembly:
1. Remove the shield (1) that secures the wireless antenna cables to the WLAN module.
2. Carefully disconnect the wireless antenna cables (2) from the WLAN module.
NOTE: Computer models have either one or two WLAN antennas. On models with two antennas, the #1
white WLAN antenna cable connects to the WLAN module #1 Main terminal. The #2 black WLAN antenna
cable connects to the WLAN module #1 Aux terminal.
3. Release the ZIF connector (3) to which the webcam/microphone module cable is connected, and then
disconnect the webcam/microphone module cable from the system board.
4. Release the wireless antenna cables and the webcam/microphone module cable from the retention clip (4)
built into the top cover/keyboard.
5. Disconnect the display panel cable (5) from the system board.
6. Release the display panel cable from the retention clip (6) built into the top cover/keyboard.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts
