Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 31).
4. Remove the solid-state drive (see Solid-state drive on page 33).
5. Remove the processor fan (see Processor fan on page 40).
6. Remove the graphics fan (see Graphics fan on page 41).
7. Remove the heat sink (see Heat sink on page 42).
8. Remove the system board (see System board on page 43).

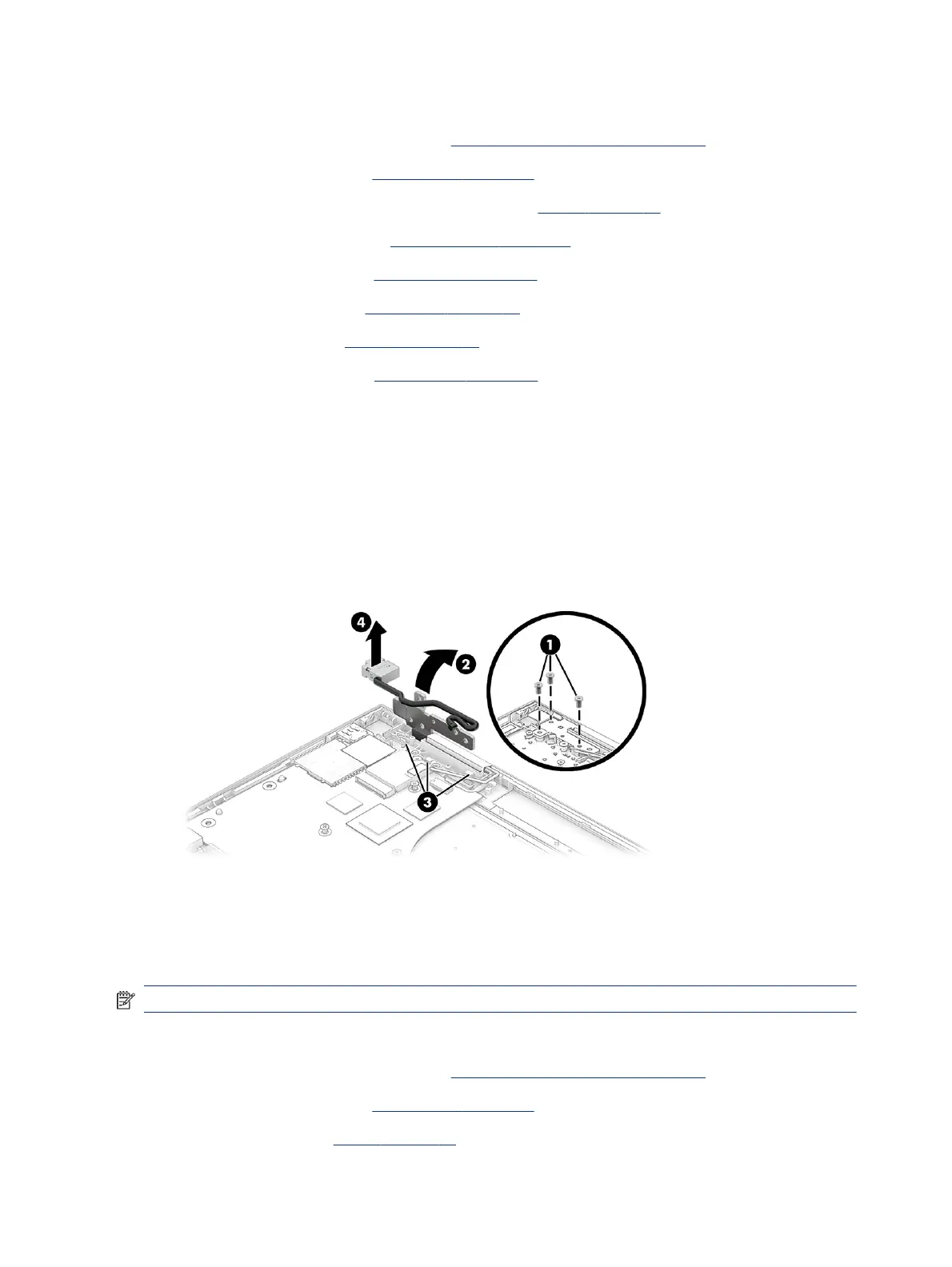

Remove the power connector cable:
1. Remove the three Phillips M2.5 × 4.9 screws (1) that secure the display right hinge to the computer.
2. Swing the display right hinge (2) up and away from the computer.
3. Release the power connector cable from the retention clips (3) and routing channel built into the top
cover/keyboard.
4. Remove the power connector cable (4).
Reverse this procedure to install the power connector cable.
Touchpad cable
To remove the touchpad cable, use this procedure and illustration.
NOTE: The touchpad cable is available using spare part number M45458-001.
Before removing the touchpad cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).
52
Chapter 5 Removal and replacement procedures for authorized service provider parts
