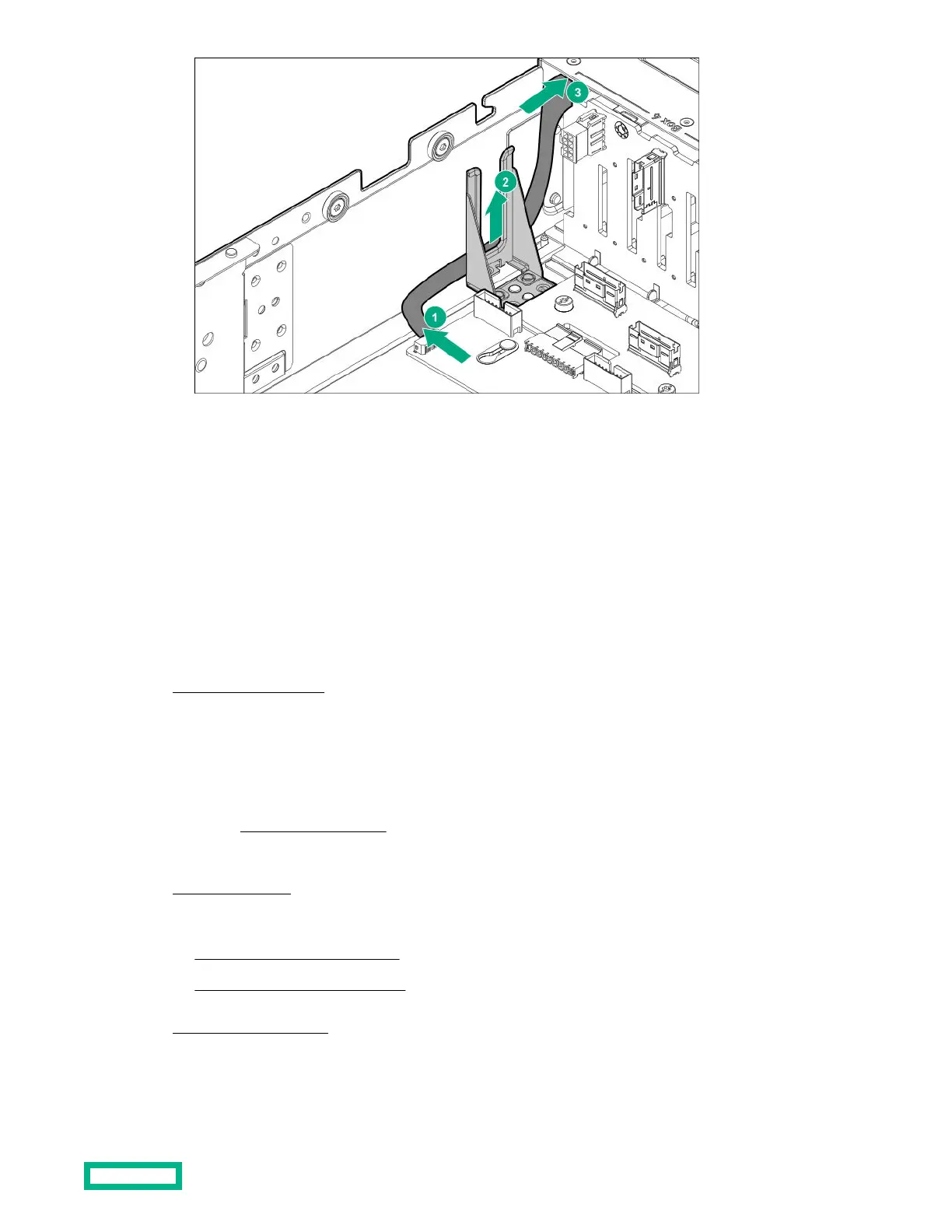

To replace the component, reverse the removal procedure.
The left bezel ear spare assembly ships with a set of drive configuration labels. Select the label that matches your system
drive configuration and attach it to the new left bezel ear.
Removing and replacing the system interconnect assembly
Prerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
Procedure
1.
Power down the servers.
2.
Remove all power:
a.
Disconnect each power cord from the power source.
b.
Disconnect each power cord from the chassis.
3.
If installed,
disconnect the tube set.
4. Disconnect all peripheral cables from the servers and chassis.
5.
Remove all servers.
6. Do one of the following:
• Extend the chassis from the rack.
•
Remove the chassis from the rack.
7. Remove the access panel.
8. Remove all fans.
Removal and replacement procedures
50
