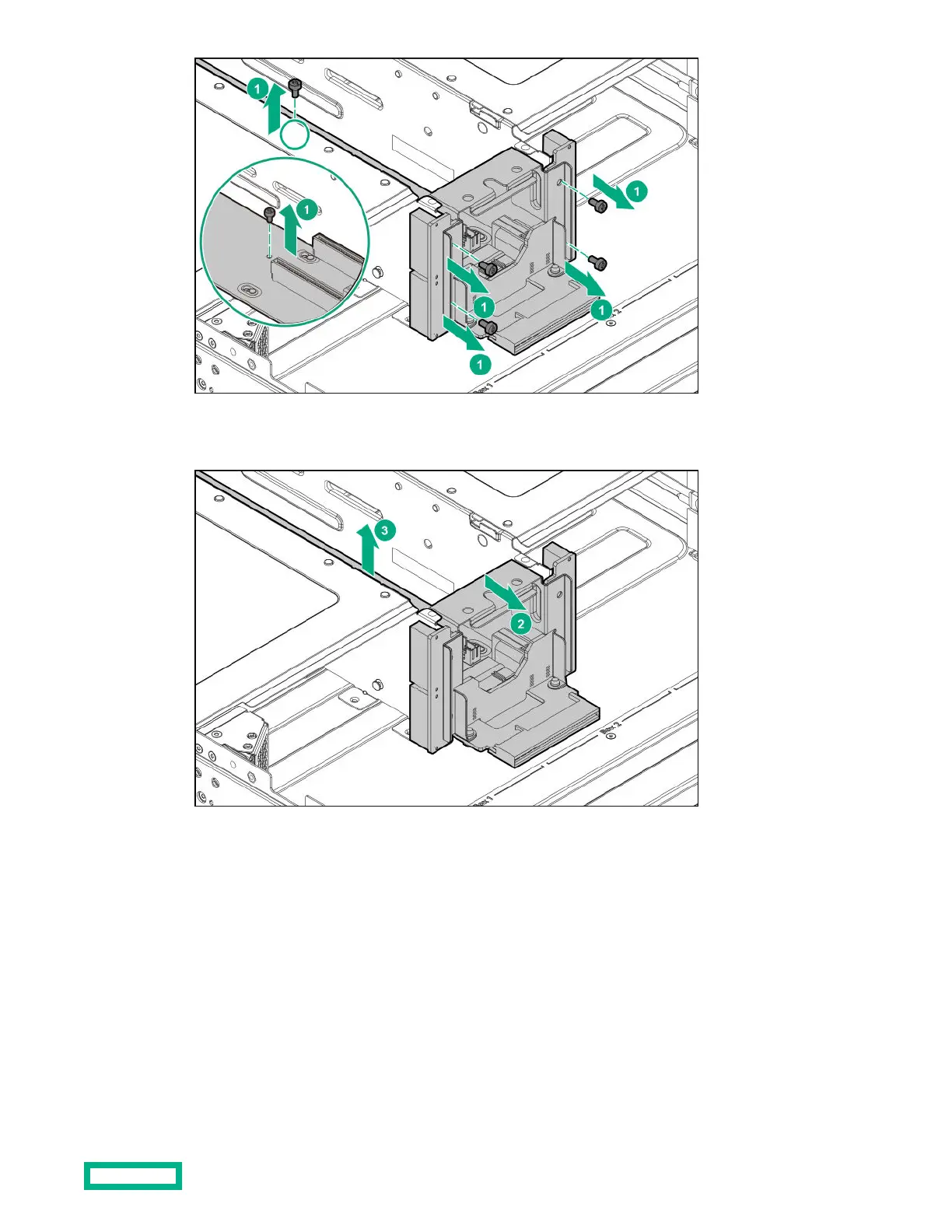

b. Use the power backplane bracket to slide the assembly towards the drive backplane (callout 2).
c. Lift the assembly
o the chassis (callout 3).
15.
Remove the power backplane bracket screws (callout 1), and then remove the bracket (callout 2).
Removal and replacement procedures
61
