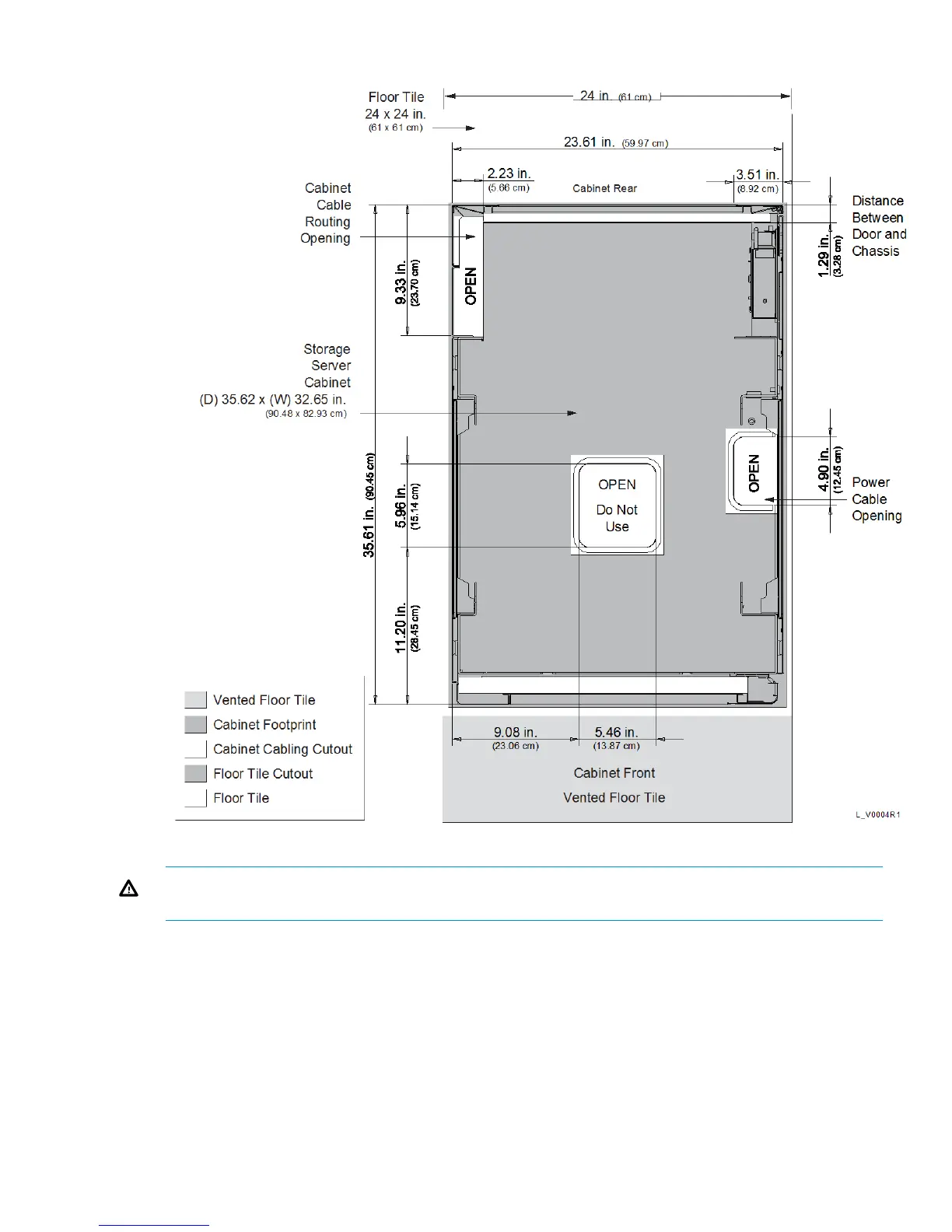

Figure 7 Tile Cutout Specifications
WARNING! To prevent potential collapse, loaded floor panels that have cutouts to facilitate
cable routing may require additional reinforcement.
Anchoring Dimensions for Storage Systems
Some installations may prefer to anchor storage systems to the floor for better stability, especially
in seismically active locations. While HP does not supply, or specifically recommend any particular
anchoring solution, there are several third-party anchoring kits that can be procured for this purpose.
Figure 8 (page 22), Figure 9 (page 22) and Figure 10 (page 23) provide the required dimensions
for the base of the storage system cabinet:
Establishing the Proper Foundation 21
