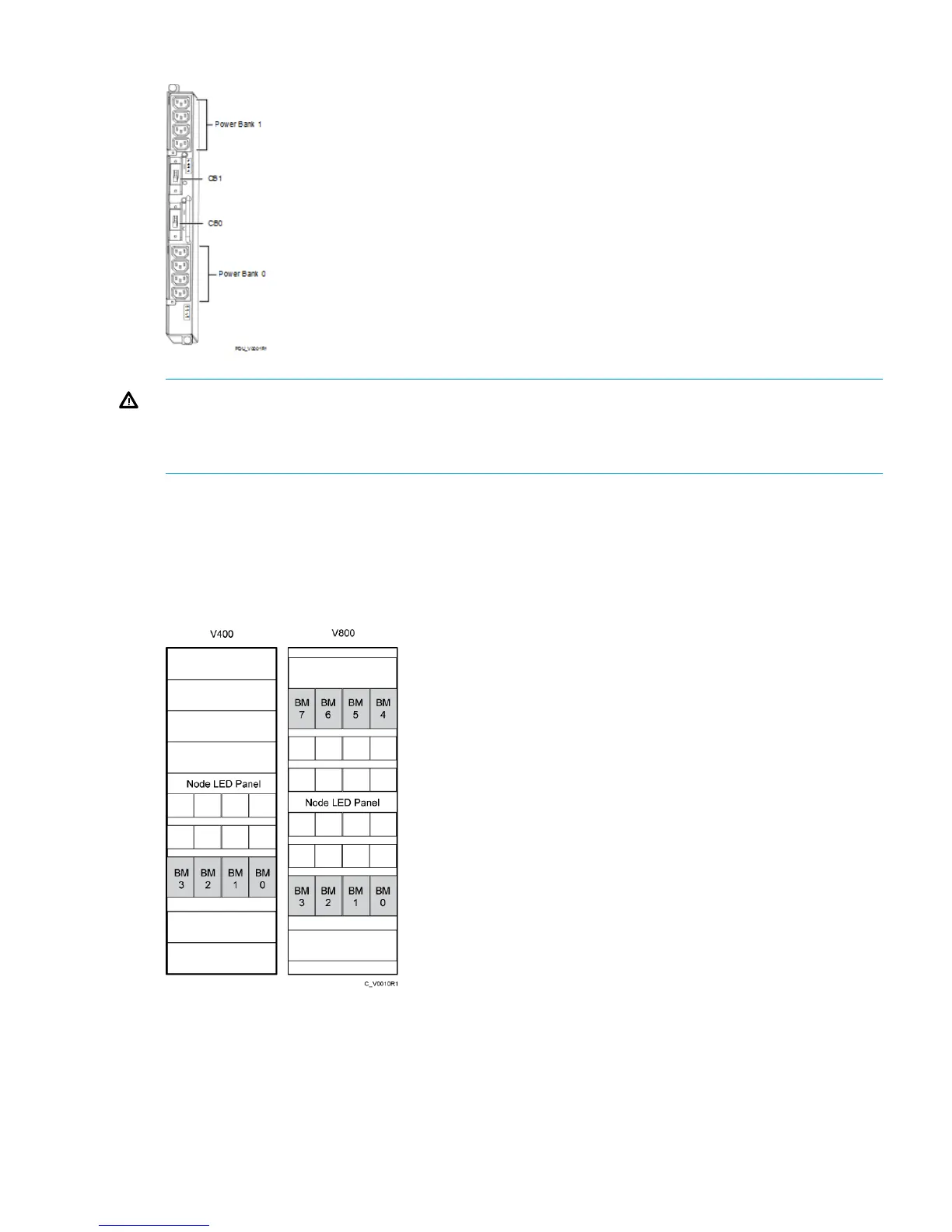

Figure 14 Power Banks in the PDU
WARNING! To avoid possible injury, damage to storage system equipment, and potential loss
of data, do not use the surplus power outlets in the storage server PDUs. Never use outlets in the
PDUs to power components that do not belong to the storage server or to power storage server
components that reside in other cabinets.
Battery Modules
HP P10000 3PAR Storage Systems include one or two battery compartments that hold up to four
battery modules each. The battery compartment is part of the node chassis and adjacent to the
node fan compartment (Figure 15 (page 33)).
Figure 15 Battery Modules (BM) Front View of Cabinet
Power Cord Connections
HP 3PAR Storage Systems arrive with all internal power cords configured. Each PDU AC cord
connects to the wall outlet and supplies power to the node and drive chassis power supplies. The
power can be routed from the top or bottom of the cabinet (Figure 16 (page 34)).
Powering HP P10000 3PAR Storage Systems 33
