2 Server components
This chapter provides illustrations of the storage server hardware components.
NOTE:
Connecting the storage server power cord illuminates the LEDs on the front of the unit, the Systems Insight
Display LED (if applicable), and the LEDs on the NIC connector (rear panel). The Lights-Out NIC LED (rear
panel) illuminates if the Lights-Out port is connected. Connecting the power cord also restores the storage
server to whatever previous powered state it was last in. This could result in the server powering up, the
fans operating, and the power indicator coming on.
NOTE:
The keyboard, mouse, and monitor are used only for the direct attached method of accessing the server.
They are not provided with your storage server.
ML110 G5 hardware components
The following figures show components, controls, and indicators located on the front and rear panels
of the ML110 G5 storage server.

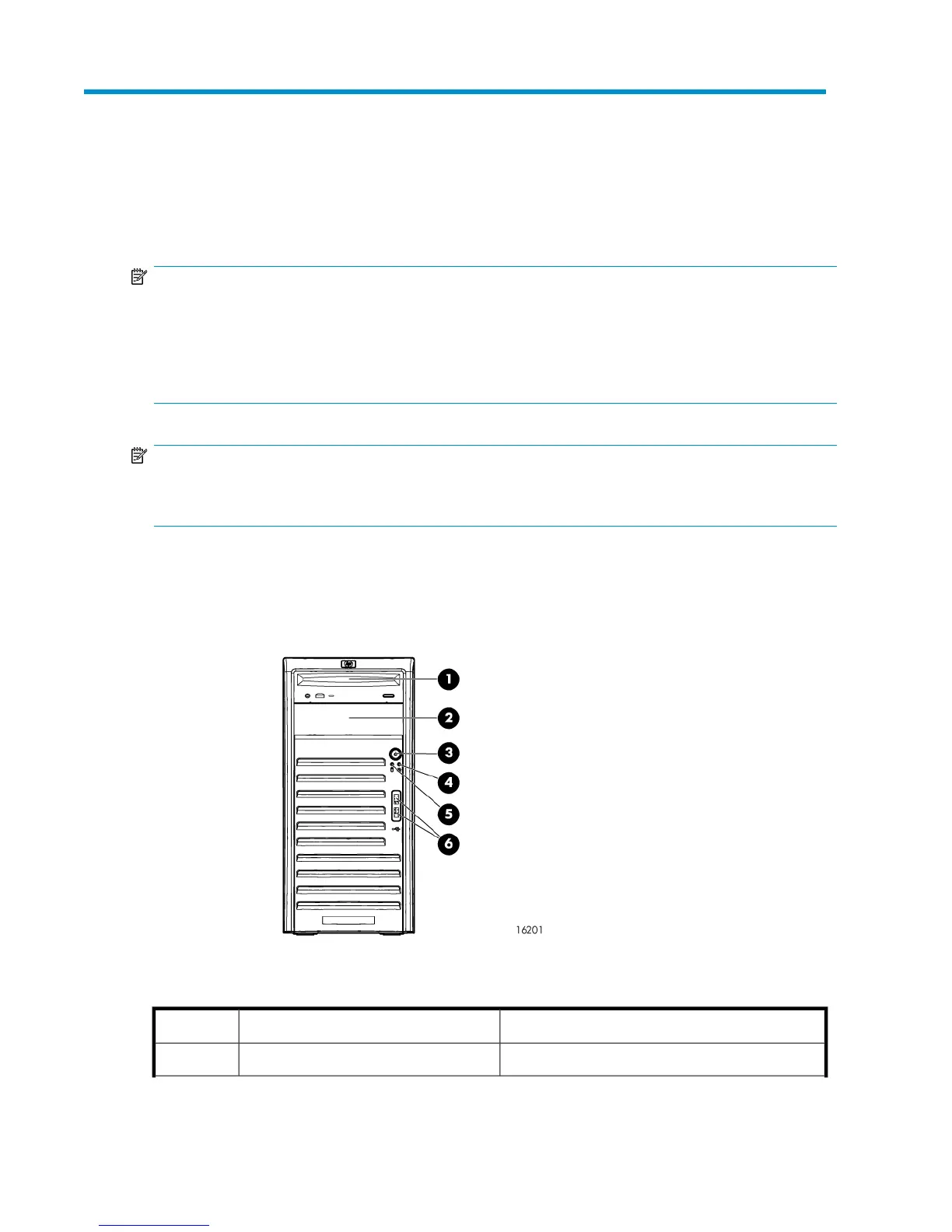

Figure 3 ML110 G5 front panel (bezel on)
Table 6 ML110 G5 front panel components (bezel on)
StatusDescriptionItem
N/ADVD ROM drive1
HP ProLiant Storage Server 35
