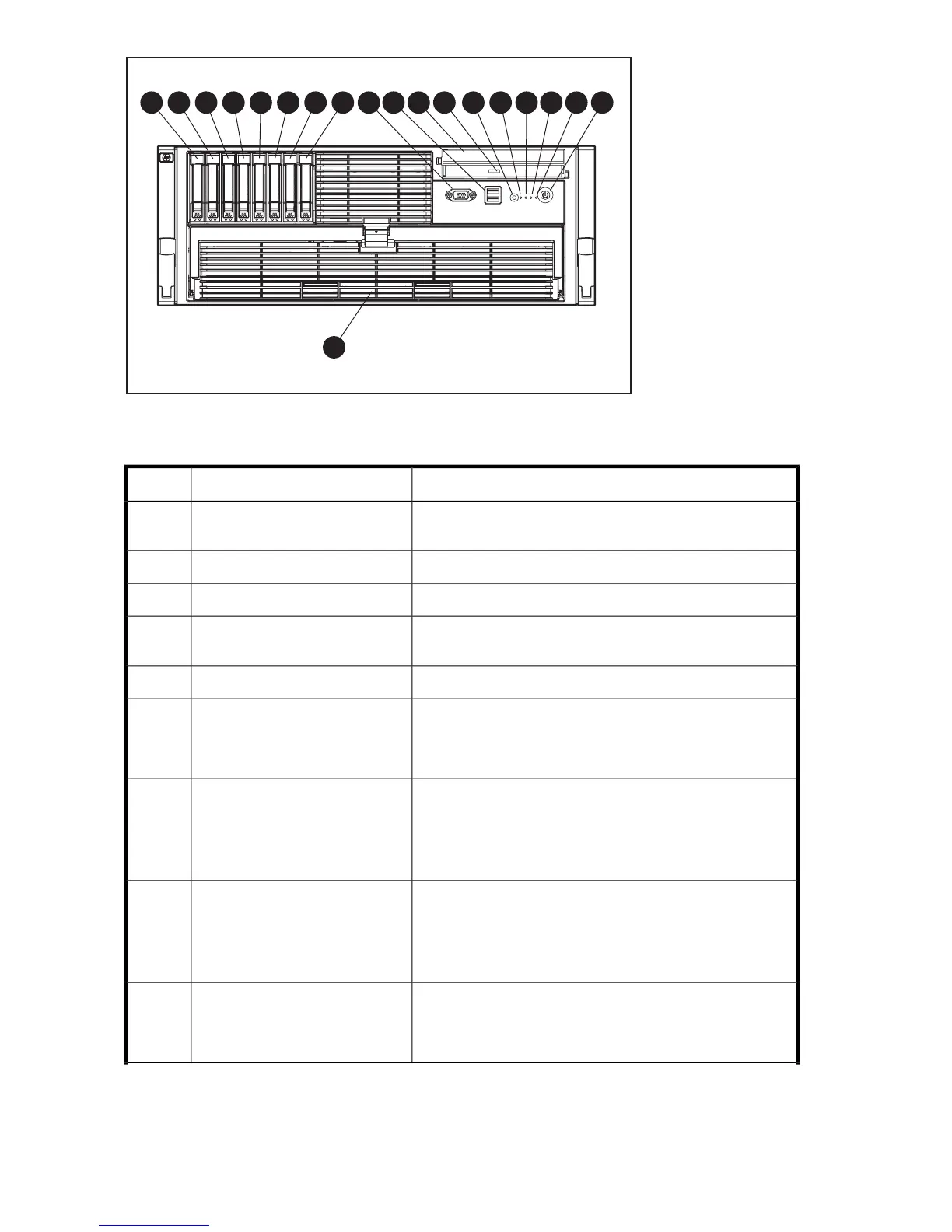

Figure 12 DL585 G2 front panel
Table 15 DL585 G2 front panel components
StatusDescriptionItem
See “SAS and SATA hard drive LED combinations” on page
49 for HDD LED status descriptions.
Hard disk drive (HDD) bays 1 – 81 – 8
N/AVideo connector9
N/AUSB connectors (two)10
N/A
Media drive blank or optional
media drive
11
N/ADVD drive12
Blue = Activated
Flashing blue = Server managed remotely
Off = Deactivated
UID switch and LED13
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
Internal system health LED14
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
External system health LED15
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
NIC 1 link/ activity LED16
Server components46

HP ProLiant ML110 G5 Specifications

General

Form Factor	Tower
Processor Speed	Up to 3.0 GHz
Chipset	Intel 3200
Memory	Up to 8 GB DDR2
Processor	Intel Xeon 3000 series
Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1
Network Interface	1 x Gigabit Ethernet
Expansion Slots	2 x PCI
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
