HP ProOne 600 G5 User Manual

Antennas
The antenna cables route from the WLAN module, through a hole in the main chassis, to antennas at the
bottom of the computer. The antennas are secured to the computer with adhesive.
NOTE: Because it is dicult to remove the antenna without damaging it or losing adhesion, a new antenna
kit is available.
To remove the antennas:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the stand (see Stand on page 19).
3. Remove the rear port cover (see Rear port cover on page 24).
4. Remove the speaker cover (see Speakers on page 43).
5. Remove the speaker cover and speakers (see Speakers on page 43).
6. Remove the system board (see System board on page 40).
7. Disconnect the antenna cables from the WLAN module (see WLAN module on page 33).
8. Remove the rear enclosure and main chassis (see Rear enclosure and display assembly on page 47).

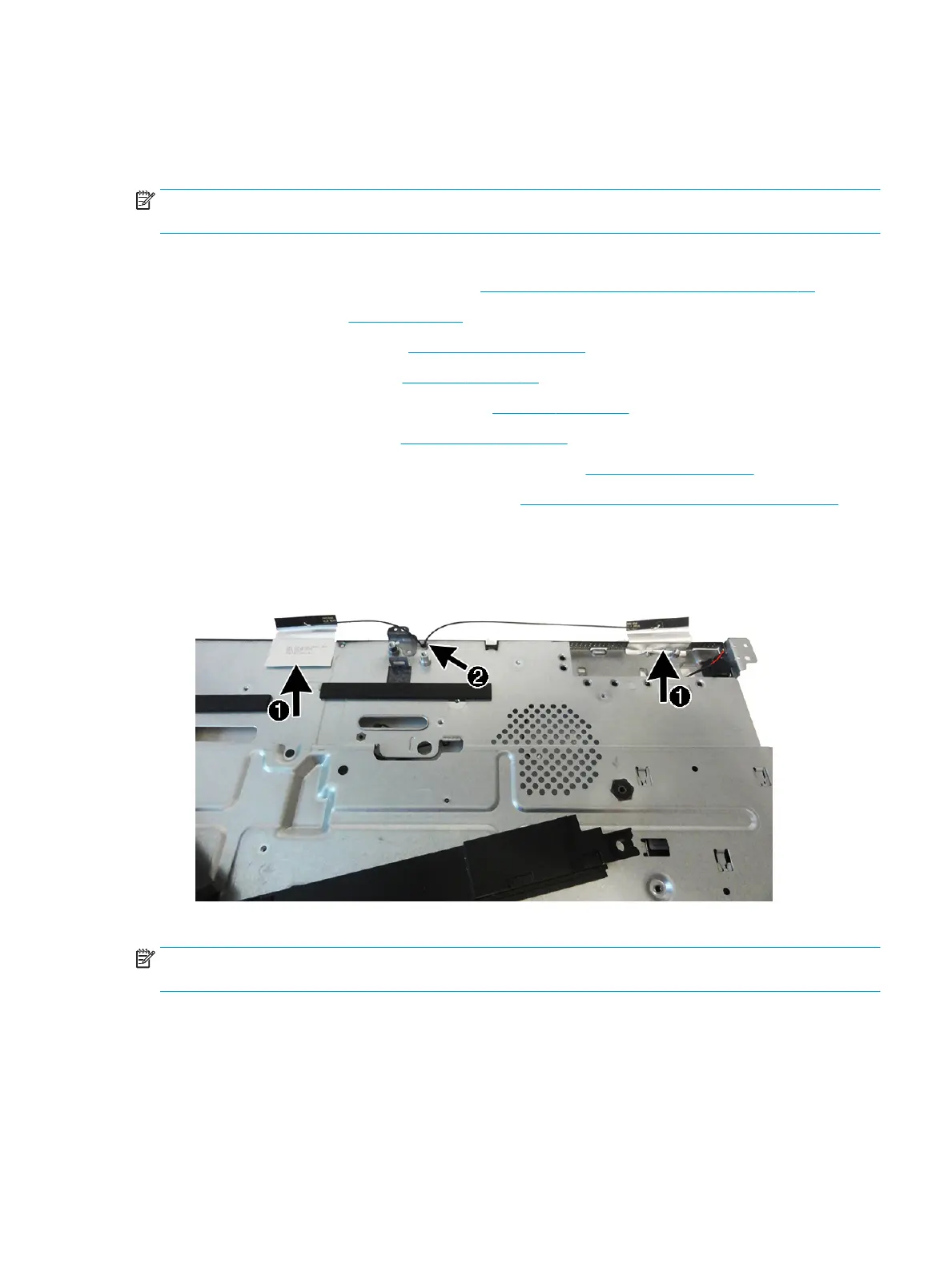

9. Peel the antennas o the chassis (1).
10. Pull the cables through the hole in the chassis (2).
11. Remove the screw from under the webcam.
To install the antennas, reverse the removal procedures.
NOTE: When connecting the antennas cables to the WLAN module, be sure to match the numbers on the
cable with the same number printed on the WLAN module.
Antennas 51

HP ProOne 600 G5 Specifications

General

Processor	Intel Core i3/i5/i7/i9, Intel Pentium, Intel Celeron
RAM	Up to 64 GB DDR4
Storage	Up to 2TB HDD, up to 1TB SSD
Display	21.5" diagonal FHD (1920 x 1080) IPS anti-glare WLED-backlit
Graphics	Intel UHD Graphics 630
Operating System	Windows 10 Pro
Ports	USB 3.1 Gen 1, USB-C, HDMI, DisplayPort, RJ-45, audio jack
Network	Gigabit Ethernet
Chipset	Intel® Q370
Audio	Integrated stereo speakers
Networking	optional Wi-Fi 6, Bluetooth 5.0
Power Supply	up to 89% efficiency
