8. Lift the stand up and off the computer.

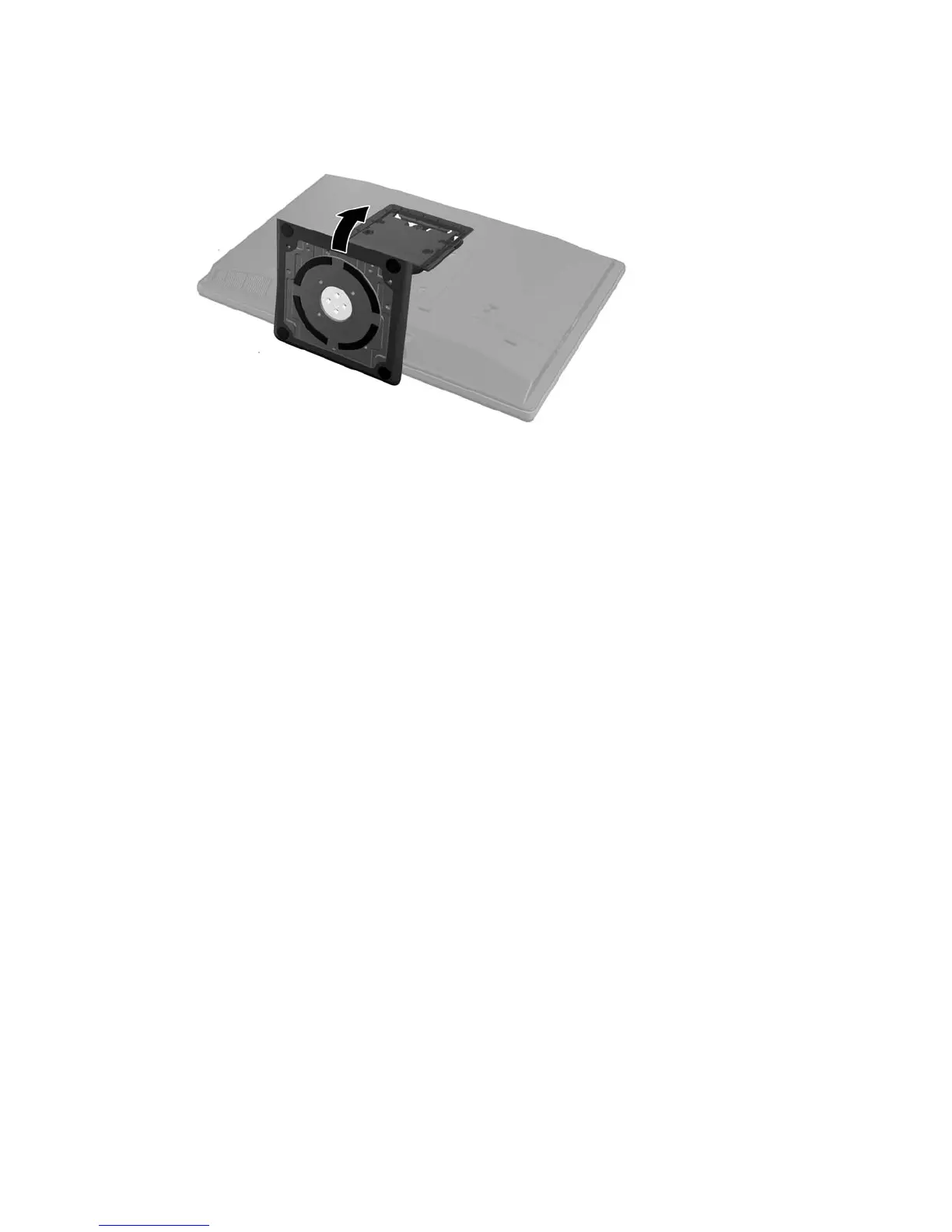

Figure 2-21 Removing the stand
Connecting a second display
The DisplayPort connector on the rear of the computer allows you to connect a second display to the
computer.
If you are adding a second display that has a DisplayPort connector, then no DisplayPort video adapter
is required. If you are adding a second display that does not have a DisplayPort connector, you can
purchase a DisplayPort video adaptor from HP for your configuration.
DisplayPort adapters and video cables are purchased separately. HP offers the following adapters:
●
DisplayPort to VGA adapter
●
DisplayPort to DVI adapter
●
DisplayPort to HDMI adapter
To connect a second display:
1. Turn off power to the computer and the second display that you are connecting to the computer.
2. Remove the rear port cover on the computer.
24 Chapter 2 Hardware repair and upgrade
