HP TOUCHSMART 9100 Maintenance And Service Guide

Removing the hard drive
1. Prepare the computer for disassembly (see Preparing to disassemble the HP TouchSmart PC
on page 12).
2.
Place the computer face down on a soft, flat surface.
3. Remove the hard drive/memory cover (see
Hard drive/memory cover on page 14).
4. Remove the stand (see
Stand on page 17).

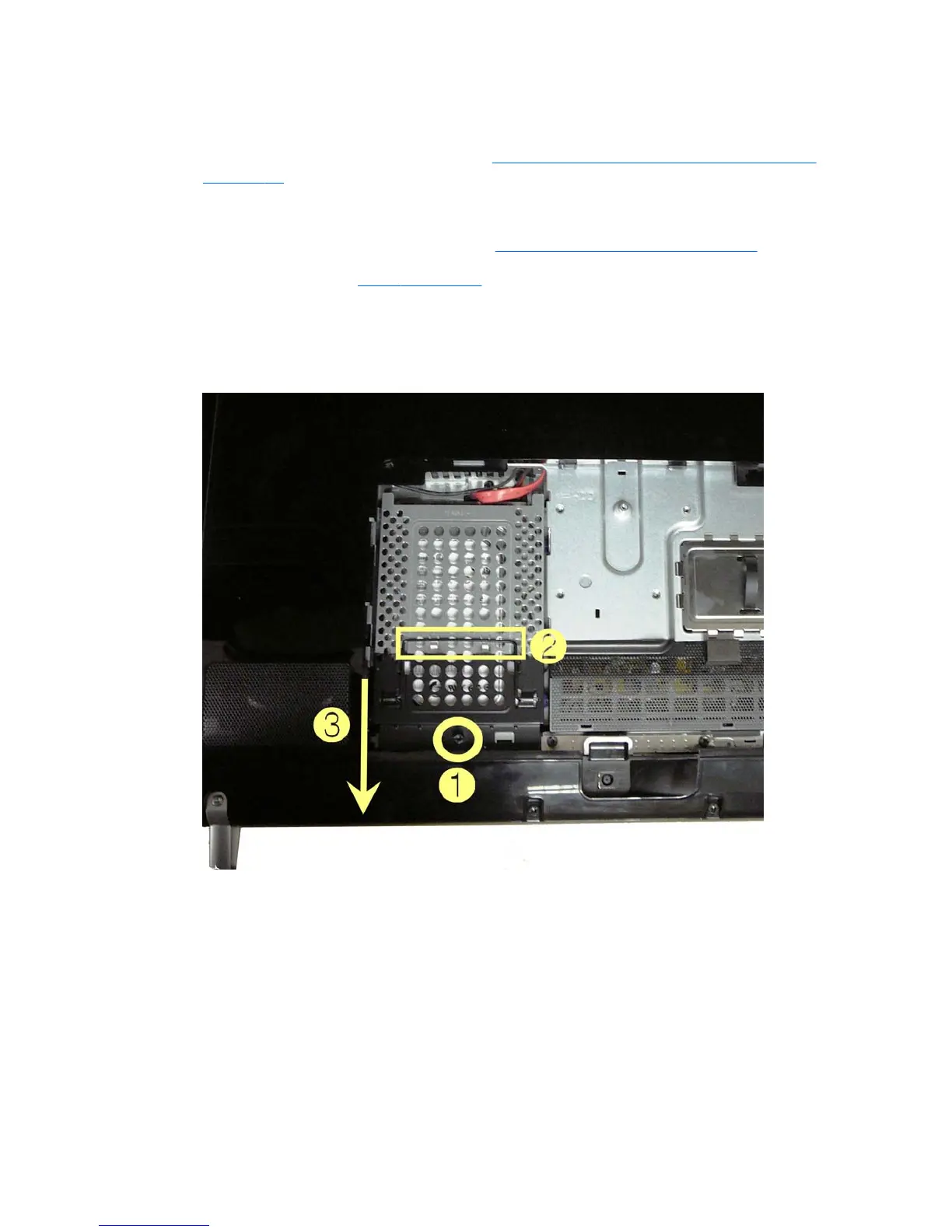

5. Loosen the captured screw (1) that secures the hard drive to the computer.
6. Pull up on the handle (2) of the hard drive assembly, and the pull the assembly partially out of the
computer (3).
7. Remove the power/data cable from the rear of the hard drive.
8. Remove the hard drive from the computer.
To remove the hard drive from the hard drive cage:
1. Remove the four screws, two on each side, that secure the hard drive into the hard drive cage.
2. Lift the cage off the hard drive.
Removing the hard drive
21

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
