HP TOUCHSMART 9100 Maintenance And Service Guide

9.
Remove the system board shield (see
System board shield on page 28).

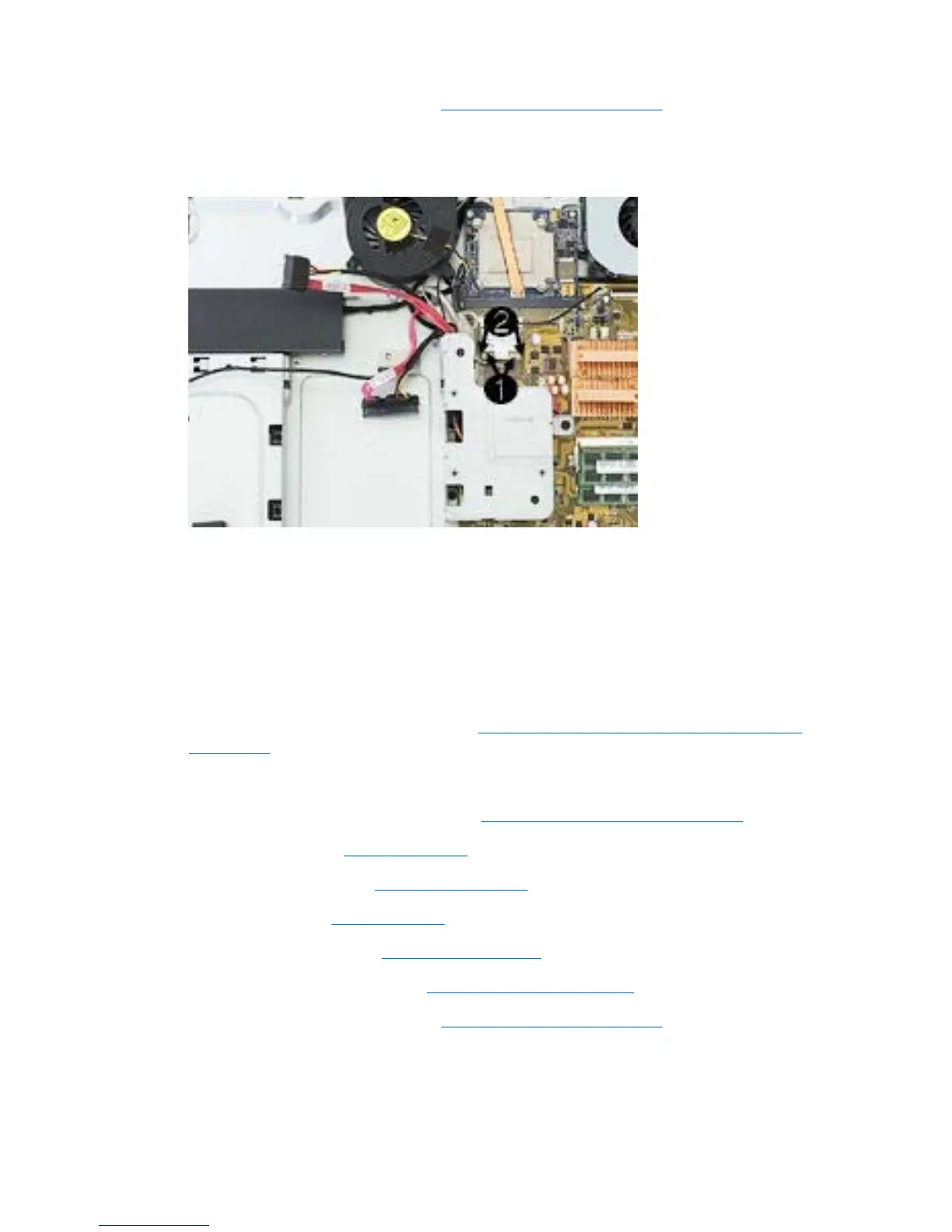

10. Disconnect the two antenna cables from the module (1).
11. Remove the two screws that secure WLAN module to the system board (2).
12.
Lift the module up to a 45 degree angle, and then remove it from the slot at an angle.
To install the WLAN module, reverse the removal procedures.
WLAN modules include a notch that prevents incorrect installation.
TV tuner module
1. Prepare the computer for disassembly (see Preparing to disassemble the HP TouchSmart PC
on page 12).
2.
Place the computer face down on a soft, flat surface.
3. Remove the hard drive/memory cover (see
Hard drive/memory cover on page 14).
4.
Remove the stand (see
Stand on page 17).
5. Remove the I/O cover (see
I/O cover on page 15).
6. Remove the feet (see
Feet on page 16).
7. Remove the back cover (see
Back cover on page 22).
8. Remove the amp board shield (see
Amp board shield on page 28).
9. Remove the system board shield (see
System board shield on page 28).
32 Chapter 4 Removal and Replacement Procedures

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
