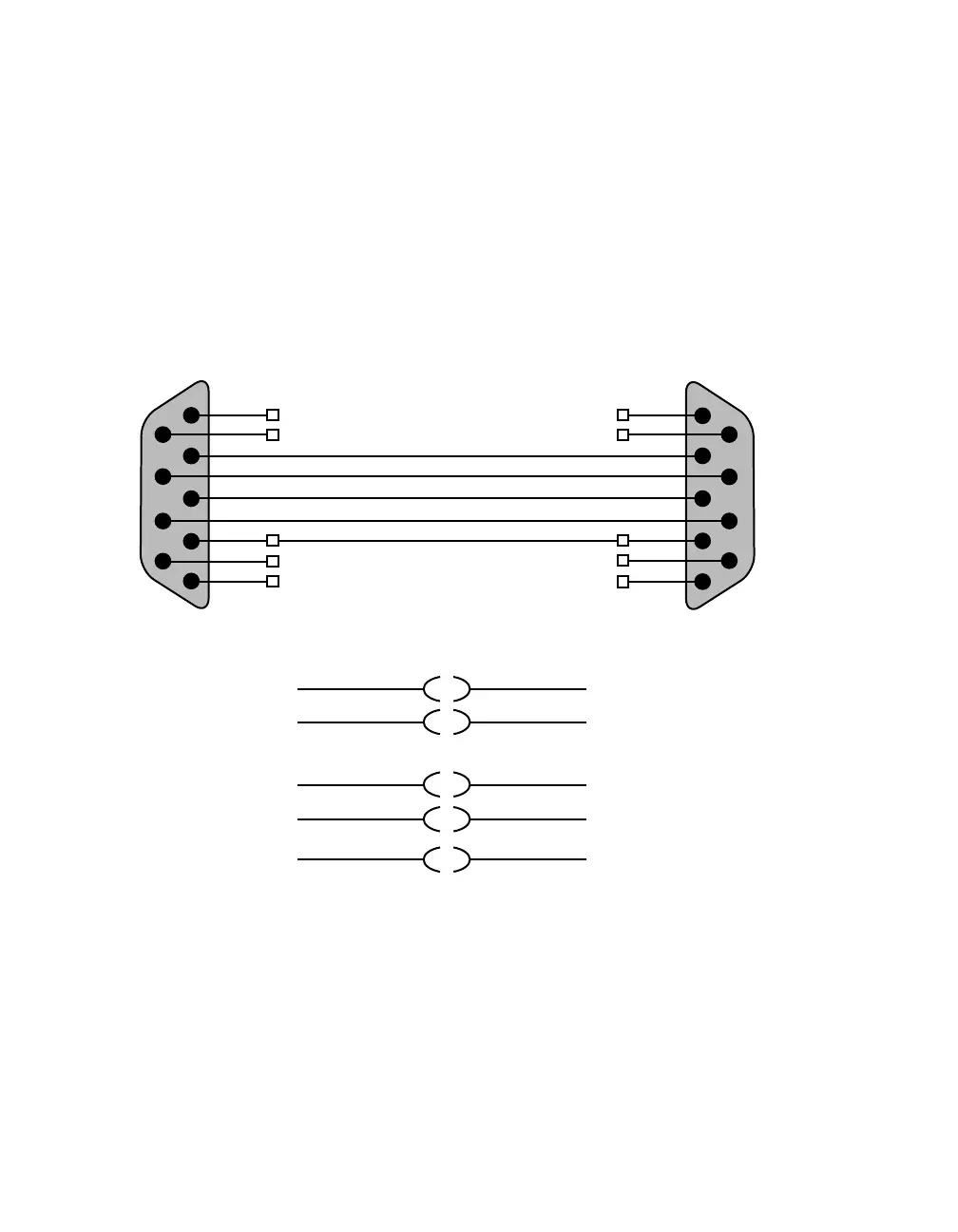

Standard VTR Control Cable Pinout
The following diagram depicts the RS-422 control cable pinouts for the
standard VTR control cable.
1
6
2
7
3
8
4
9
5
1
6
2
7
3
8
4
9
5
WHT
BLK
BLK
RED
GND
OEM-2K: MALE DB9
OEM-LH: FEMALE DB9
MALE DB9
2 - RX -
7 - RX +
3 - TX -
8 - TX +
2 - TX -
7 - TX +
3 - RX -
8 - RX +
4 - GND (SHIELD) 4 - GND (SHIELD)
PAIR 1
PAIR 2
Standard VTR Control Cable:
Linux(AJA) Controlling VTR (Normal Video I/O Control Cable)
Linux(AJA)
VTR
RS-422
Setting Up VTR Emulation
You can configure your Finishing application to emulate a VTR for both input
and output in real time. You control the emulator from the application or
device that sees the Finishing application as a VTR.
34 | Chapter 4 Setting Up Video Hardware
