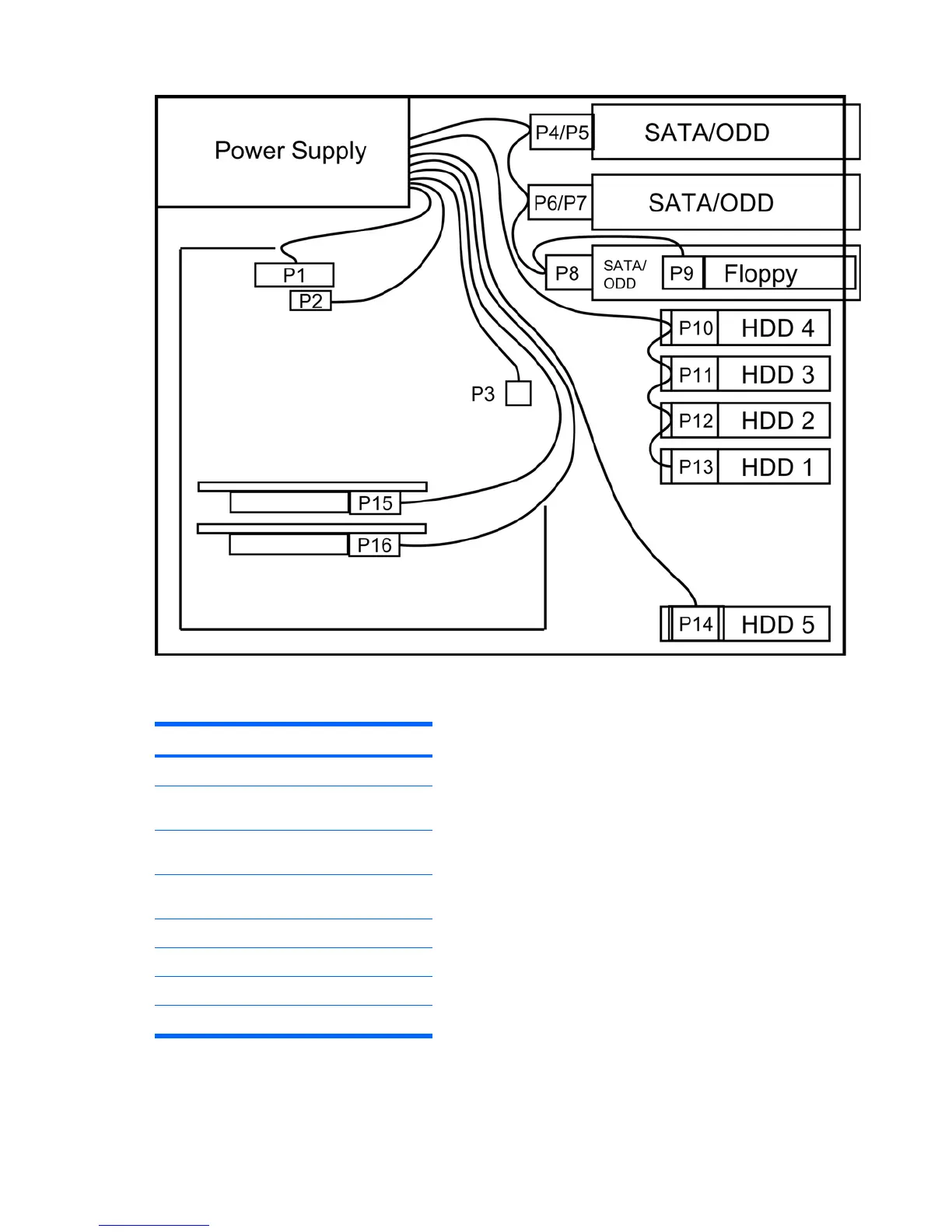

Figure 4-30 Identifying correct power connections
Table 4-6 Power connector descriptions
Connector Description
P1 24-pin main power connector
P2 4-pin memory power
connector
P3 8-pin processor power
connector
P4–P8 SATA and IDE ODD/
accessory power connectors
P9 Diskette connector
P10–P14 HDD connector
P15 PCIe connector
P16 PCIe connector
82 Chapter 4 Removal and replacement procedures ENWW
