4 USB 2.0 port (1), charging 9 Optional media card reader (shown)
5 USB 2.0 port (1)

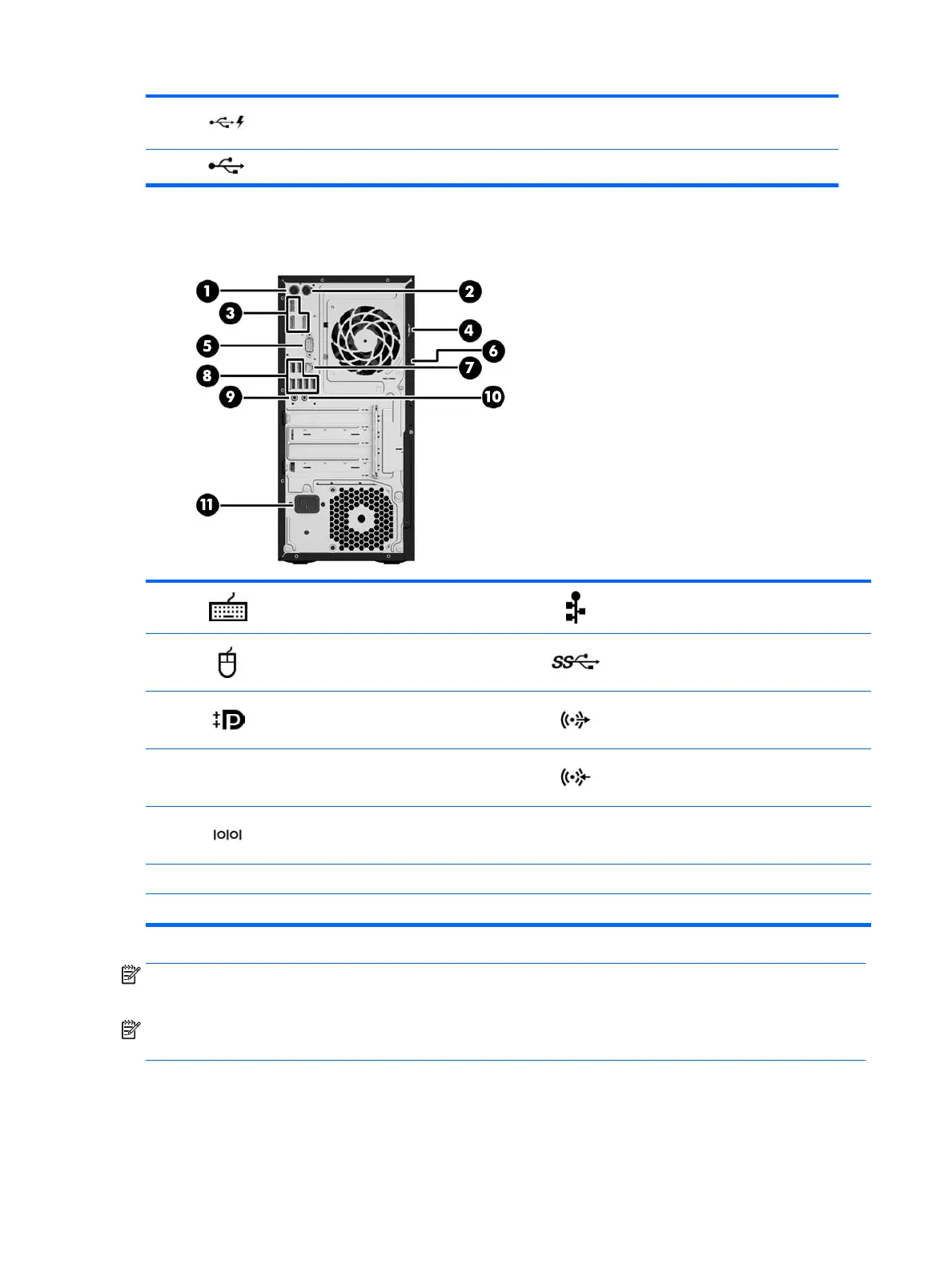

Rear panel
1 PS/2 keyboard connector (purple)
7
RJ-45 network connector
2 PS/2 mouse connector (green) 8 USB 3.0 ports, SuperSpeed (6)
3
Dual-Mode Display Port (DP) connectors
(3)
9 Audio line-out connector (green)
4 Padlock loop 10 Audio line-in connector (blue)
5 Serial port 11 Power cord connector
6 Cable lock slot
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
NOTE:
The DP ports are not supported when the system is congured with Intel Xeon® E3-12x0 v5 processors. Also, if a discrete graphics card is installed these
ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using the
Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
6 Chapter 2 Workstation features
