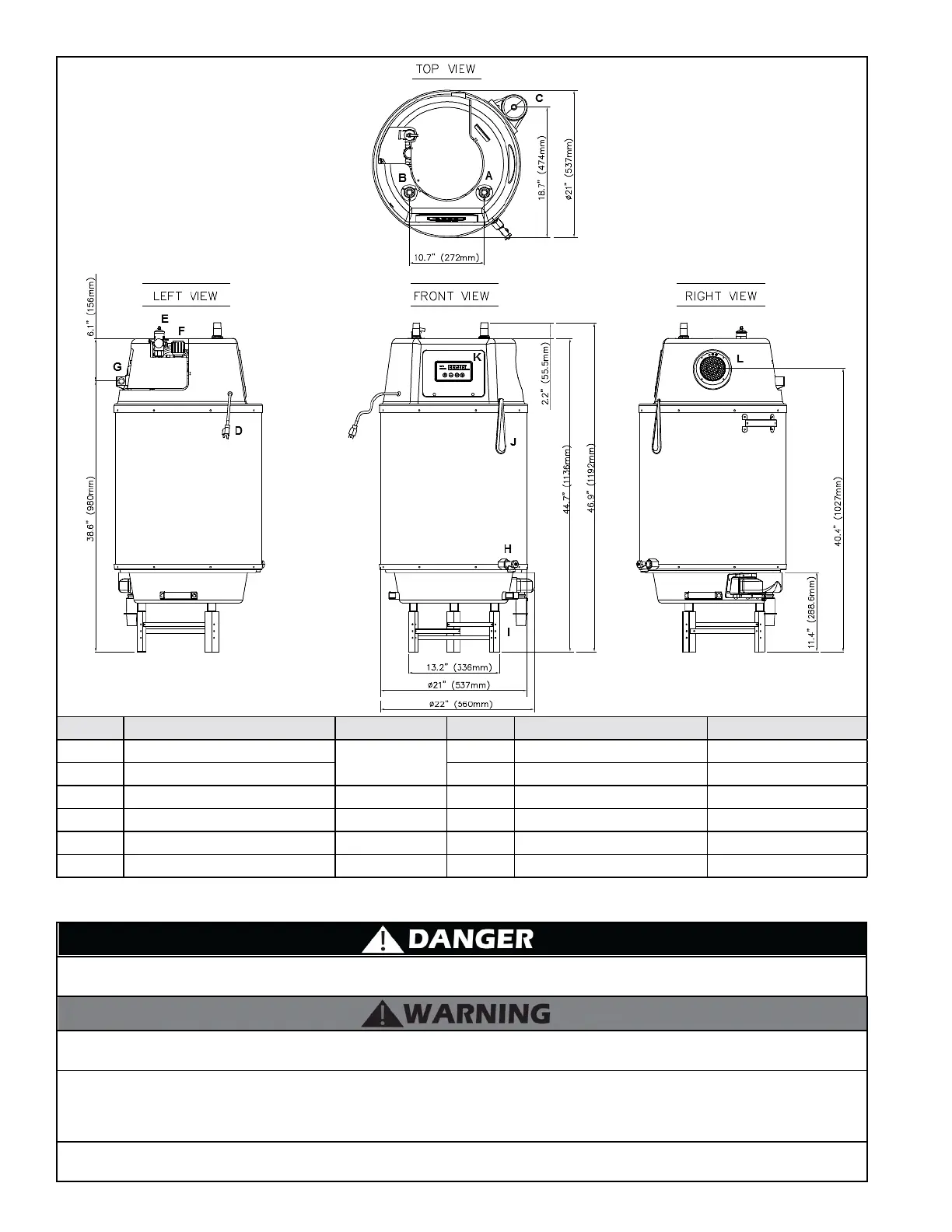

Figure 3 - 20 Gallon Model Dimensions and Specications
Description Diameter Description Diameter
A Cold Water Inlet
3/4” Male NPT
G Gas Connection 1/2” or 3/4” Female NPT
B Hot Water Outlet H Drain Valve N/A
C Exhaust 3” I Condensate System 1/2” Male NPT
D Electric Cord N/A J Tank Sensor N/A
E T&P Valve N/A K Display Control N/A
F Thermostatic Mixing Valve N/A L Air Intake 3”
J. Installing the Water Heater Stand, Exhaust Pipe Clamp, and Condensate Trap
The factory supplied water heater stand and condensate trap must be installed with the water heater. Failure to do so will result in property
damage, serious personal injury, or death.
The water heater must be installed on a surface that can bear its weight (more than 120 lbs. when fully plumbed and full of water). Installing
the water heater on a surface which cannot support its weight could result in property damage, personal injury, or death.
This water heater is too heavy for one person to lift. It is highly recommended to install the water heater with two people. Use caution as
to not drop the water heater, which could damage the water heater and cause property damage and/or severe personal injury. Verify that
the water heater is properly and securely mounted before leaving unsupervised. Failure to comply with the above and properly mount the
water heater could result in substantial property damage, severe personal injury, or death.
This stand assembly is not seismic rated and should not be applied as such. Failure to comply with the above and properly mount the water
heater could result in substantial property damage, severe personal injury, or death.
